Description
Ensemble Designs BrightEye 56 Overview
The Ensemble Designs BrightEye 56 is an HD/SD/analog test signal and sync pulse generator designed to provide accurate and versatile synchronization for audio and video engineers in remote trucks, post-production facilities, and mobile video production setups. It offers the ability to be a master or slave generator and is genlockable.

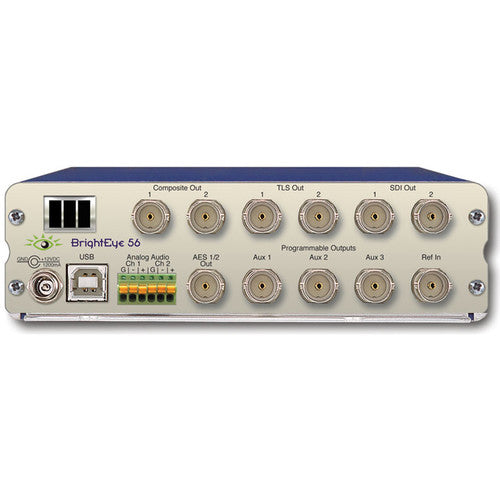

A single BNC reference input accepts composite video (PAL or NTSC), tri-level sync, or 10 MHz signal. Seven BNC jacks provide dedicated composite, tri-level sync, SDI, and AES outputs, plus there are three programmable BNC outputs. Also, a two-channel analog output is available on a terminal block connection.

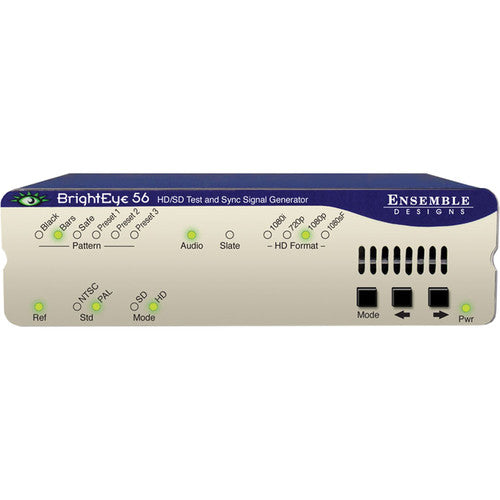

The BrightEye 56 boasts over 30 HD and SD test signals and patterns, a timecode generator, and a sync pulse generator. Many of its settings are accessible via front-panel controls, and full access to all configurable options can be unlocked via BrightEye software on a USB-connected computer.
In the Box
- Ensemble Designs BrightEye 56 HD/SD/Analog Test Signal and Sync Pulse Generator
- Limited 5-Year Warranty
Ensemble Designs BrightEye 56 Specs
| Reference Input | 1 x BNC (1 V P-P composite video PAL or NTSC, tri-level sync, or 10 MHz) |
| Outputs | 2 x BNC (composite) 2 x BNC (tri-level sync) 2 x BNC (SDI) 1 x BNC (AES) 3 x BNC (programmable) 1 x Terminal block (2-channel) |
| USB | 1 x USB Type-B |
| Signal Type | Composite: NTSC/PAL Serial Digital: 270 Mb/s SD (SMPTE 259M), 1.485 Gb/s HD (SMPTE 274M, 292M, or 296M) AES: AES3id, 1 kHz tone or silence Analog: 1 kHz tone or silence Programmable: AES, LTC, Word Clock, or 6 Hz pulse (selectable) |
| Impedance | BNC: 75 Ohms Analog: 30 Ohms, balanced |
| Return Loss | Composite: >40 dB (DC to 5.5 MHz) Tri-Level Sync: >30 dB (to 30 MHz) Serial Digital: >15 dB for 270 Mb/s, >15 dB for 1.485 Gb/s |
| Composite Output | Frequency Response: -0.1 dB (10 kHz to 5 MHz) Output DC: ±50 mV K Factor: <1% Differential Phase: <1° SCH Phase: ±5° |
| Maximum Cable Length | 984.3' / 300 m for 270 Mb/s 328.1' / 100 m for 1.485 Gb/s 229.7' / 70 m for 2.97 Gb/s (Belden 1694A cable) |
| Sync Output | DC ±50 mV |
| Accuracy | Internal: TCXO PAL Fsc: 4.43361875 MHz ± 1 Hz NTSC Fsc: 3.579545 MHz ± 1 Hz 601 Fs: 27 MHz ± 5 Hz Long Term Drift: <1 ppm/year Analog Jitter: <1 ns Digital Jitter: <0.2 UI (0.13 UI typical) |
| Supported Standards | 1080i (SMPTE 274M -4, 5, 6) 50, 59.94, or 60 Hz 720p (SMPTE 296M -1, 2, 3) 50, 59.94, or 60 Hz 1080p (SMPTE 274M -9, 10, 11) 23.98, 24, 25 Hz 1080sF (RP211 -14, 15, 16) 23.98, 24, 25 Hz 625i 50, 525i 59.94, Composite PAL, NTSC |
| AES Audio | Resolution: 24-bit |
| Analog Audio Output | Reference Level: -10 to +4 dBu, adjustable |
| Temperature Range | 32 to 104°F / 0 to 40°C (ambient) |
| Relative Humidity | 0 to 95% (non-condensing) |
| Altitude | 0 to 10,000' / 0 to 3048 m |
| Power Requirement | 12 VDC, 1200 mA (100 to 230 VAC modular power supply) |
| Dimensions | 5.6 x 1.7 x 6.0" / 143 x 42 x 152 mm (including connectors and flange) |
| Weight | 1.4 lb / 0.7 kg |
| Package Weight | 2.5 lb |
| Box Dimensions (LxWxH) | 8.7 x 7.9 x 2.5" |
