Description
Ensemble Designs BE48 Overview
- 1Description
- 2Converter & Distribution Amplifier for HD, SD & ASI Signals
- 3Transmission Distance
- 4Indicators
The BrightEye 48 3G/HD/SD/ASI Optical to Electrical Converter from Ensemble Designs is an optical receiver and distribution amplifier that can be used with standard-definition signals, 3Gbps & 1.5Gbps high-definition signals, or ASI signals.

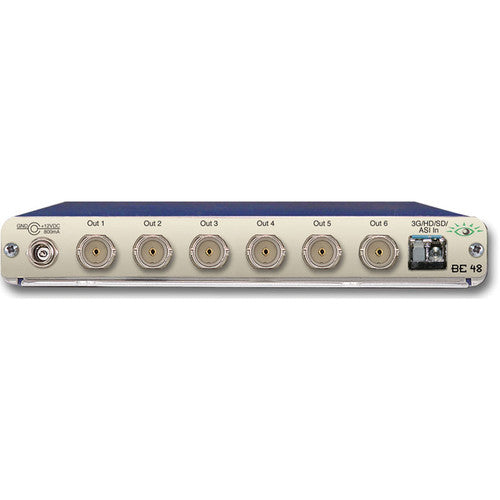

The optical input is converted to electrical form and the resulting serial digital signal is reclocked and delivered to BNC outputs. Providing six electrical outputs, the BrightEye 48 also serves as a distribution amplifier.

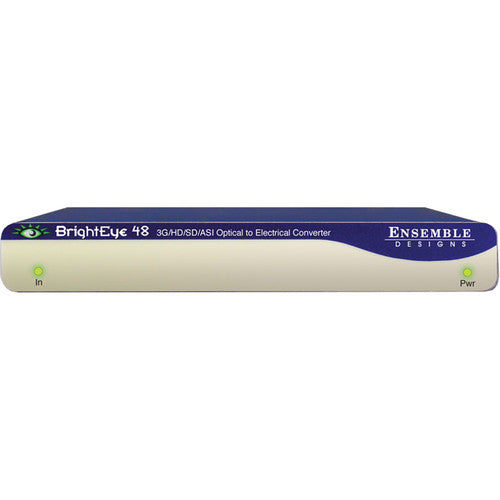

Front panel indicators show the presence of an input signal and power. The unit does not feature a USB port nor any interface for BrightEye Windows or Mac software.
Converter & Distribution Amplifier for HD, SD & ASI Signals
Transmission Distance
Indicators
In the Box
- Ensemble Designs BrightEye 48 3G/HD/SD/ASI Optical to Electrical Converter
- Converter/Distribution Amplifier
- Limited 5-Year Warranty
- Description
- Converter & Distribution Amplifier for HD, SD & ASI Signals
- Transmission Distance
- Indicators
Ensemble Designs BE48 Specs
| Inputs | SERIAL DIGITAL INPUT Quantity: x1 Signal type: 270Mbps SD serial digital (SMPTE 259M) 1.485Gbps HD serial digital (SMPTE 274M, 292M, or 296M) 2.97Gbps HD Serial Digital (SMPTE 424M, 425M) Impedance: 75Ω Return loss: >15 dB for 270Mbps >15 dB for 1.485Gbps >10 dB for 2.97Gbps Maximum cable length: 984' (300m) for 270Mbps 328' (100m) for 1.485Gbps 393' (120m) for 1.485Gbps |
| Outputs | SERIAL DIGITAL OUTPUT Quantity: x6 Signal type: 3G/HD/SD/ASI serial digital, follows input Impedance: 75Ω Return loss: >15dB Output: DC none (AC coupled) OPTICAL OUTPUT |
| Power | 12V, 7W *100 to 230VAC modular power supply not included |
| Dimensions (HxWxD) | 0.8 x 5.63 x 5.5" (20 x 143 x 140mm) |
| Weight | Not specified by manufacturer |
| Package Weight | 2.55 lb |
| Box Dimensions (LxWxH) | 8.8 x 7.9 x 4.9" |
