Description
Ensemble Designs BE46 Overview
- 1Description
- 2Converter & Distribution Amplifier for HD, SD & ASI Signals
- 3Transmission Distance
- 4Indicators
The BrightEye 46 3G/HD/SD/ASI Electrical to Optical Converter from Ensemble Designs is an electrical-to-optical converter and distribution amplifier that can be used with standard-definition signals, 3Gbps & 1.5Gbps high-definition signals, or ASI signals.

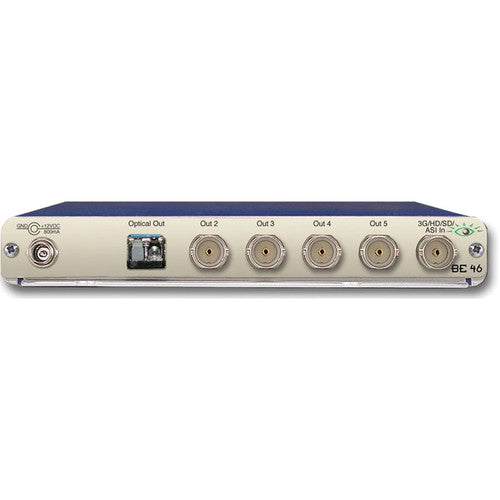

Its video input signal is reclocked and delivered to (4) simultaneous BNC outputs and is also output to an optical LC/UCP connector. The optical output can drive a single-mode fiber up to 12.42 miles (20km) away. When used with an optical launch power attenuator, multi-mode fiber can be used to achieve longer transmission distances.

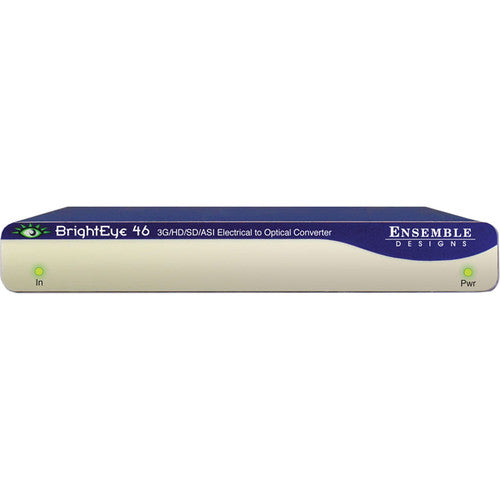

Front panel indicators show the presence of an input signal and power. The unit does not feature a USB port nor any interface for BrightEye Windows or Mac software.
Converter & Distribution Amplifier for HD, SD & ASI Signals
Transmission Distance
Indicators
In the Box
- Ensemble Designs BrightEye 46 3G/HD/SD/ASI Electrical to Optical Converter
- Converter/Distribution Amplifier
- Limited 5-Year Warranty
- Description
- Converter & Distribution Amplifier for HD, SD & ASI Signals
- Transmission Distance
- Indicators
Ensemble Designs BE46 Specs
| Inputs | SERIAL DIGITAL INPUT Quantity: x1 Signal type: 270Mbps SD serial digital (SMPTE 259M) 1.485Gbps HD serial digital (SMPTE 274M, 292M, or 296M) 2.97Gbps HD Serial Digital (SMPTE 424M, 425M) Impedance: 75Ω Return loss: >15 dB for 270Mbps >15 dB for 1.485Gbps >10 dB for 2.97Gbps Maximum cable length: 984' (300m) for 270Mbps 328' (100m) for 1.485Gbps 393' (120m) for 1.485Gbps |
| Outputs | SERIAL DIGITAL OUTPUT Quantity: x4 Signal type: 3G/HD/SD/ASI serial digital, follows input Impedance: 75Ω Return loss: >15dB Output: DC none (AC coupled) OPTICAL OUTPUT |
| Power | 12V, 7W *100 to 230VAC modular power supply not included |
| Dimensions (HxWxD) | 0.8 x 5.63 x 5.5" (20 x 143 x 140mm) |
| Weight | Not specified by manufacturer |
