Description
Ensemble Designs BE30 Overview
- 1Description
- 2ADC & DAC Conversion
- 3Controls
- 4OS Compatibility
- 524-Bit Processing
The BrightEye 30 Audio ADC and DAC Converter from Ensemble Designs is a device that can be configured as a two or four-channel converter for ADC and DAC. As a bi-directional unit it converts two channels of analog audio to AES digital with a parallel stream converted into (2) channels of analog audio. As a four-channel unit, AES can be converted to analog audio and vice versa. It is an ideal solution for desktop, post-production and broadcast applications.
The converter's 24-bit processing ensures high quality audio. Its reference input allows digital outputs to be synchronized to a PAL or NTSC video signal or AES reference. A variety of separate audio connectors and adapters are also available for this unit, allowing integration with a wide array of audio systems. An optional audio delay can also be obtained for this unit upon request.

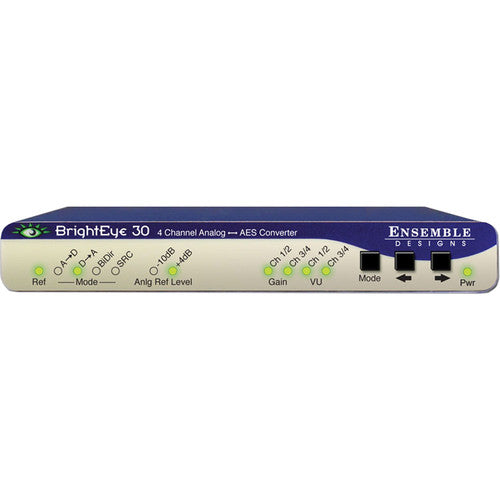

Front-panel controls allow you to adjust many parameters. Moreover, audio mixing, level adjustments, and channel shuffling can be controlled through the BrightEye software package that is included with the unit and compatible with both Windows and Mac platforms.
ADC & DAC Conversion
Controls
OS Compatibility
24-Bit Processing
In the Box
- Ensemble Designs BrightEye 30 Audio ADC and DAC Converter
- Converter
- Limited 5-Year Warranty
- Description
- ADC & DAC Conversion
- Controls
- OS Compatibility
- 24-Bit Processing
Ensemble Designs BE30 Specs
| Construction | Metal, plastic |
| Finish | Blue, silver |
| Inputs | ANALOG AUDIO OUTPUTS Quantity: x4 (selectable as inputs or outputs) Type: balanced, without transformer Impedance: 30�© Maximum output level: 24dBu Resolution: 24 bits, 128X over-sampled Reference level: -10dBu or +4dBu Frequency response: ±0.1dB, 20Hz to 20KHz Crosstalk: <106dB Dynamic range: >106 dB AES/EBU DIGITAL OUTPUTS |
| Outputs | ANALOG AUDIO OUTPUTS Quantity: x4 (selectable as inputs or outputs) Type: balanced, without transformer Impedance: 30Ω Maximum output level: 24dBu Resolution: 24 bits, 128X over-sampled Reference level: -10dBu or +4dBu Frequency response: ±0.1dB, 20Hz to 20KHz Crosstalk: <106dB Dynamic range: >106 dB AES/EBU DIGITAL OUTPUTS |
| Power | 12V, 7W *100 to 230VAC modular power supply not included |
| Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) |
| Weight | Not specified by manufacturer |
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 8.8 x 7.9 x 2.5" |
