Description
Ensemble Designs BE3 Overview
- 1Description
- 2Analog-to-SDI Conversion with TBC and Frame Sync
- 3Controls
- 4OS Compatibility
- 512-Bit Resolution
The BrightEye 3 Analog-to-SDI Converter with TBC and Frame Sync from Ensemble Designs is a time-base corrector and frame synchronizer that features composite, component, and Y/C inputs and an SDI video output. Input signals are digitized to 12-bit resolution and time base is corrected by a noise-tolerant tracking circuit. An external reference input allows genlock to a timing reference, such as the color black.

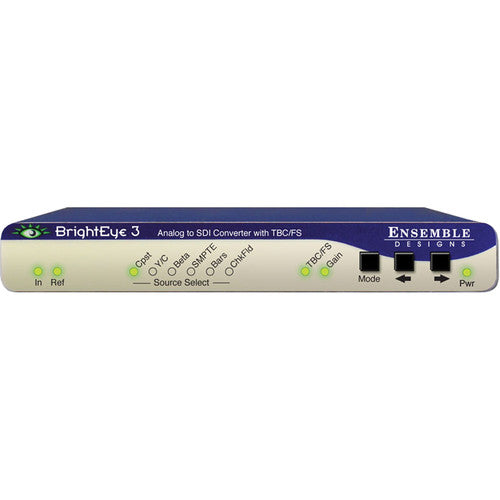

Front-panel controls allow you to select the input source, TBC, and gain control. The unit can also be controlled through the BrightEye software package that is included with that unit and compatible with both Windows and Mac platforms.
Note:
Please note that a power supply is not included with the unit and must be purchased separately.
Analog-to-SDI Conversion with TBC and Frame Sync
Use this device for the analog-to-digital video conversion with time-base correction and frame synchonization.
Controls
The unit can be controlled through the push buttons on the converter's faceplate or through the proprietary software package included with the unit.
OS Compatibility
The converter will work on both Windows and Mac operating systems.
12-Bit Resolution
The unit offers 12-bit resolution.
In the Box
- Ensemble Designs BrightEye 3 Analog-to-SDI Converter with TBC and Frame Sync
- Converter
- Limited 5-Year Warranty
Table of Contents
- Description
- Analog-to-SDI Conversion with TBC and Frame Sync
- Controls
- OS Compatibility
- 12-Bit Resolution
Ensemble Designs BE3 Specs
| Construction | Metal, plastic |
| Finish | Blue, silver |

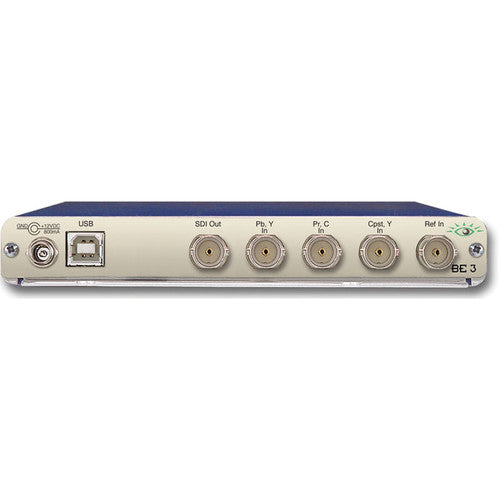

| Inputs | Analog input: x1 Type: Beta/SMPTE, Y, Pr, Pb NTSC, PAL Composite NTSC, PAL S-Video Impedance: 75Ω Return loss: >40dB Input: +/-1VDC Input hum: <100mV |
| Outputs | Serial digital output: x1 Type: 270Mb/s SD serial digital (SMPTE 259M) Impedance: 75Ω Return loss: >15dB Output: DC none (AC coupled) |
| Conversion | ANALOG-to-SDI PERFORMANCE Bit resolution: 12-bit input quantization 4x oversampling Signal to noise: >62dB, weighted Frequency response: Composite and Y ±0.1 dB, 0 to 5.5MHz Pr, Pb ±0.1 dB, 0 to 2.75MHz Minimum delay: 90 μSec REFERENCE INPUT Quantity: x1 Type: 1Vp-p composite video, PAL or NTSC Impedance: 75Ω Return loss: >40dB |
| Power | 12V, 7W *100 to 230VAC modular power supply not included |
| Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) |
| Weight | Not specified by manufacturer |
Packaging Info
| Package Weight | 1.45 lb |
| Box Dimensions (LxWxH) | 9 x 8 x 2.5" |
