Description
Ensemble Designs BE15 Overview
- 1Description
- 2SDI-to-Analog Conversion
- 3Controls
- 4OS Compatibility
- 5Genlock & Frame Sync
The BrightEye 15 SDI-to-Analog Converter with Frame Sync & Genlock from Ensemble Designs is a device designed to convert digital video to analog with timetable output. This unit is ideally suited for feeding analog switchers and routers that require signal timing.

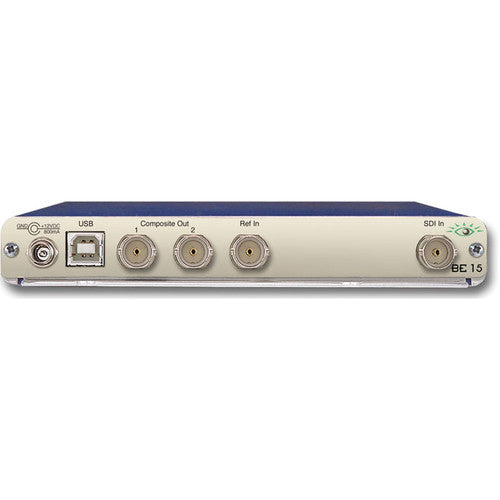

It features an SDI and reference input. The input signal is converted to analog composite video and genlocked to the referenced signal. The analog composite output is fully timed with the reference, including ScH phase. Vertical interval can be passed or blanked.

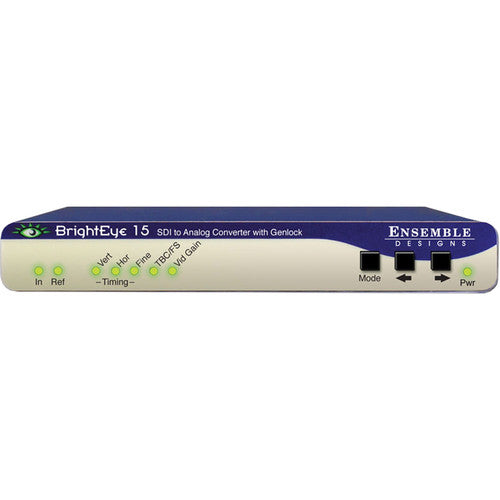

Front-panel controls allow you to select the input source and format, as well as adjust video gain. Video levels, gain, chroma, pedestal, and hue can also be adjusted through the BrightEye software package that is included with the unit and compatible with both Windows and Mac operating systems.
SDI-to-Analog Conversion
Controls
OS Compatibility
Genlock & Frame Sync
In the Box
- Ensemble Designs BrightEye 15 SDI-to-Analog Converter with Frame Sync & Genlock
- Converter
- Limited 5-Year Warranty
- Description
- SDI-to-Analog Conversion
- Controls
- OS Compatibility
- Genlock & Frame Sync
Ensemble Designs BE15 Specs
| Construction | Metal, plastic |
| Finish | Blue, silver |
| Inputs | SERIAL DIGITAL INPUT Quantity: x1 Signal type: 270Mb/s SD serial digital (SMPTE 259M) Impedance: 75Ω Return loss: >15dB Maximum cable length: 984 ft (300m) REFERENCE INPUT |
| Outputs | ANALOG VIDEO OUTPUT Quantity: x2 Type: composite PAL or NTSC (follows input) Return loss: >40dB Output: DC < 100mV |
| Conversion | SDI-to-ANALOG PERFORMANCE Bit resolution: 12-bit output reconstruction 8 X oversampling Signal to noise: >65 dB Timing window: infinite (with respect to reference) Output: ScH phase matches reference Timing resolution: adjustable to within 1° of subcarrier Frequency response: ±0.1dB, 0 to 5.5MHz K Factor: <1% ScH phase error: <±2° Differential phase: <1° Differential gain: <1% |
| Power | 12V, 7W *100 to 230VAC modular power supply not included |
| Dimensions (HxWxD) | 0.8 x 5.625 x 5.5" ( 20 x 143 x 140mm) |
| Weight | Not specified by manufacturer |
