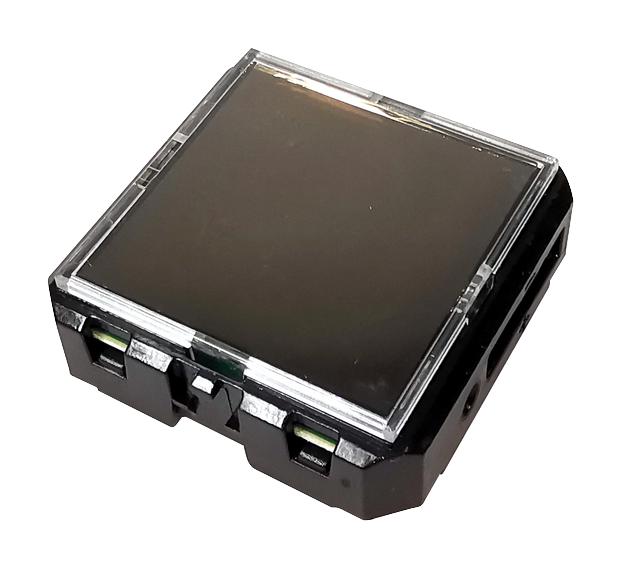

Multisensor module with NFC interface. Enables the realization of energy harvesting wireless sensors communicating according to EnOcean Alliance radio standard. Key applications are wall-mounted or equipment-mounted sensor solutions for the measurement of temperature, humidity, illumination or acceleration/orientation. STM 550 integrates dedicated sensors for temperature, humidity, illumination, acceleration and magnet contact.
- 868.300MHz transmission frequency
- 125Kbps data rate
- 5dBm transmission power
- Sensor measures and transmit the current status every 60 seconds
- Integrated solar cell power supply
- 4 days (after full charge) operating time in darkness (at 25°C)
- CR1632 backup power supply (optional)
Other details
| Brand |
ENOCEAN |
| Part Number |
STM550 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
| User Manual EN |
|
