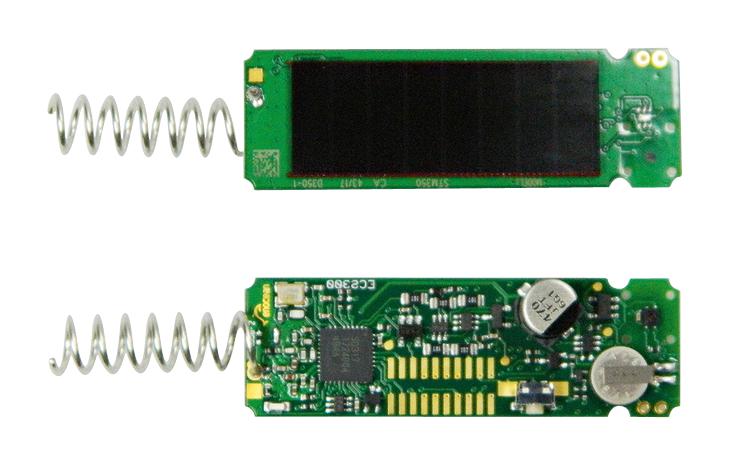

Battery less and wireless temperature & humidity sensor module. Enable the realization of energy harvesting temperature and humidity sensors that communicate wirelessly using the EnOcean radio standard. Require no external components and provide an on-board a calibrated temperature and humidity sensor.
- 50 ohm helix antenna (on-board)
- 868.3MHz ASK radio frequency / 125Kbps data rate
- 5dBm radiated output power (typ.)
- Pre-installed solar cell on-board power supply
- Option for backup battery (3V) auxiliary power supply
- Approximately once every 100 s measurement interval
- 36 months after delivery shelf life (in absolute darkness)
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
ENOCEAN |
| Part Number |
STM350 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
