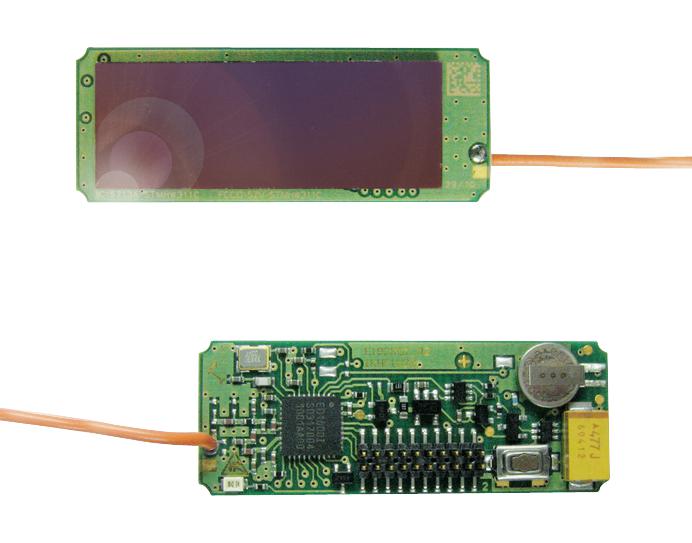

Sensor transmitter module. Optimized for realization of wireless and maintenance free temperature sensors or room operating panels including set point dial and occupancy button with a minimum number of external components. The module provides an integrated calibrated temperature sensor.
- Power supply is provided by a small solar cell or optional by an external 3V battery
- An energy storage is installed to bridge periods of darkness
- Module provides a user configurable cyclic wake up
- Pre-installed solar cell power supply at VDD
- 125Kbps data rate
- ASK (868MHz), FSK (902MHz) modulation type
- 868.3MHz frequency, helical antenna, back learn button
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
ENOCEAN |
| Part Number |
STM331 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| User Manual EN |
|
