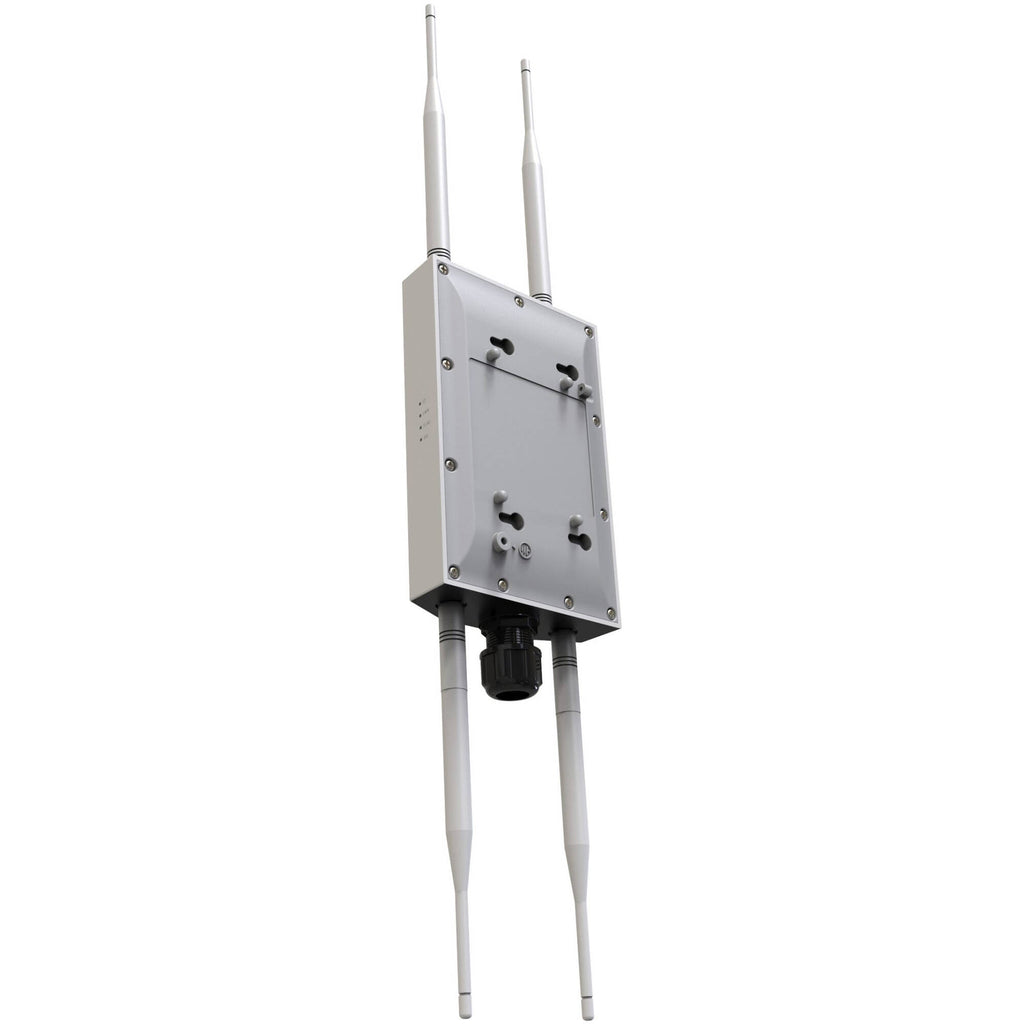

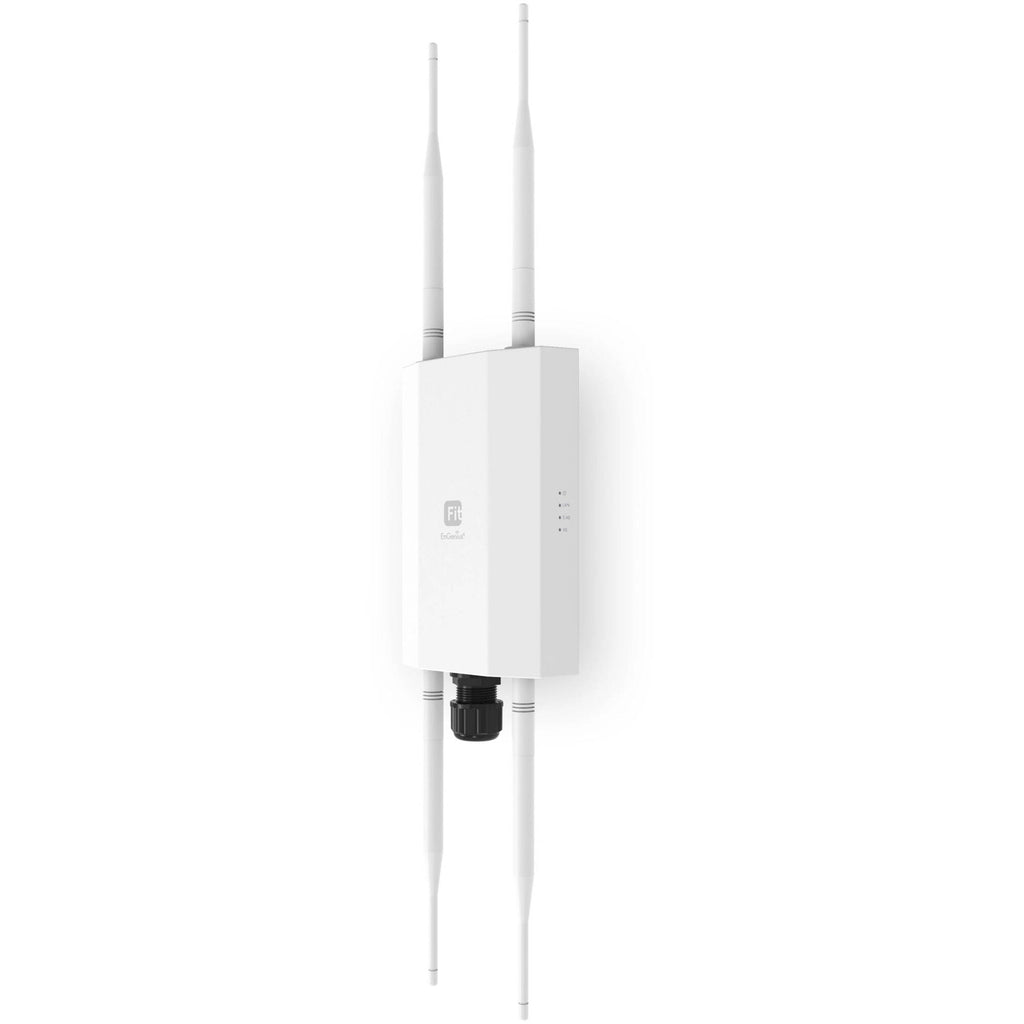

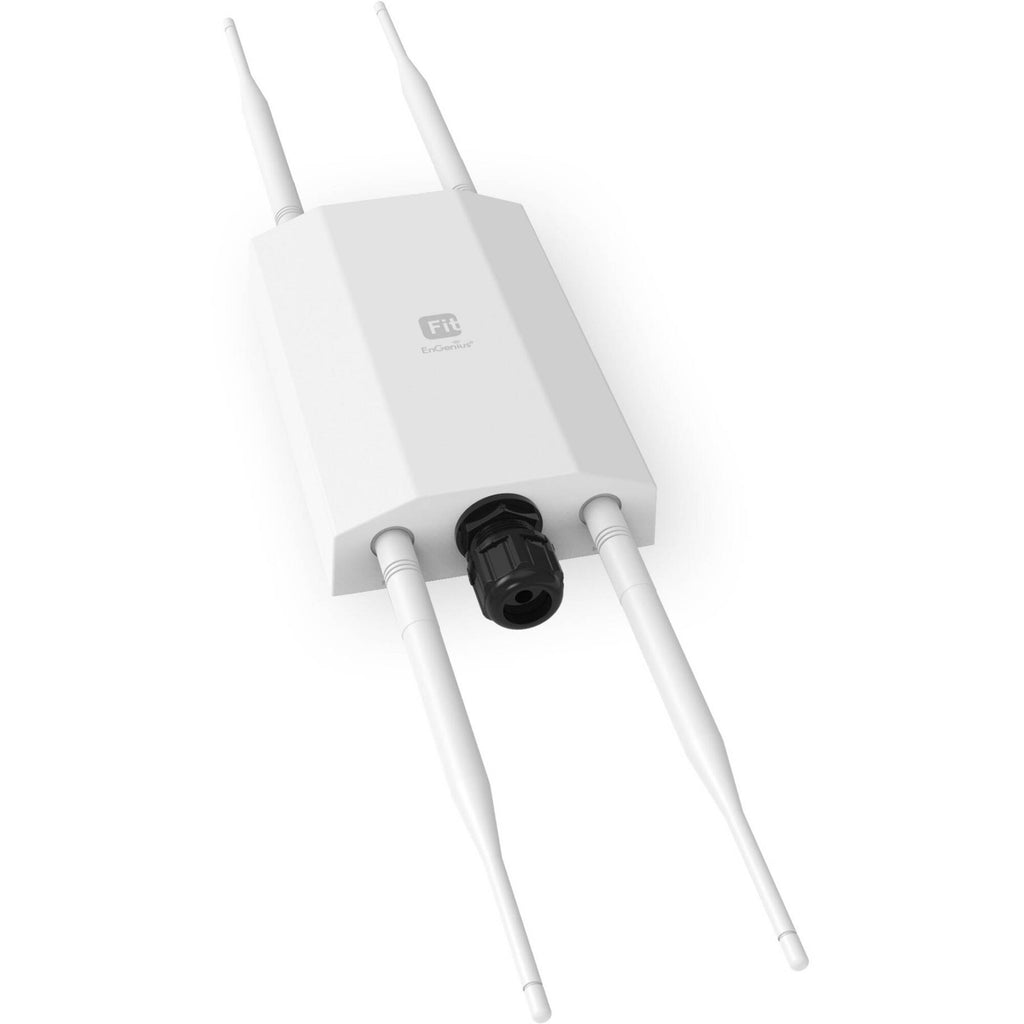

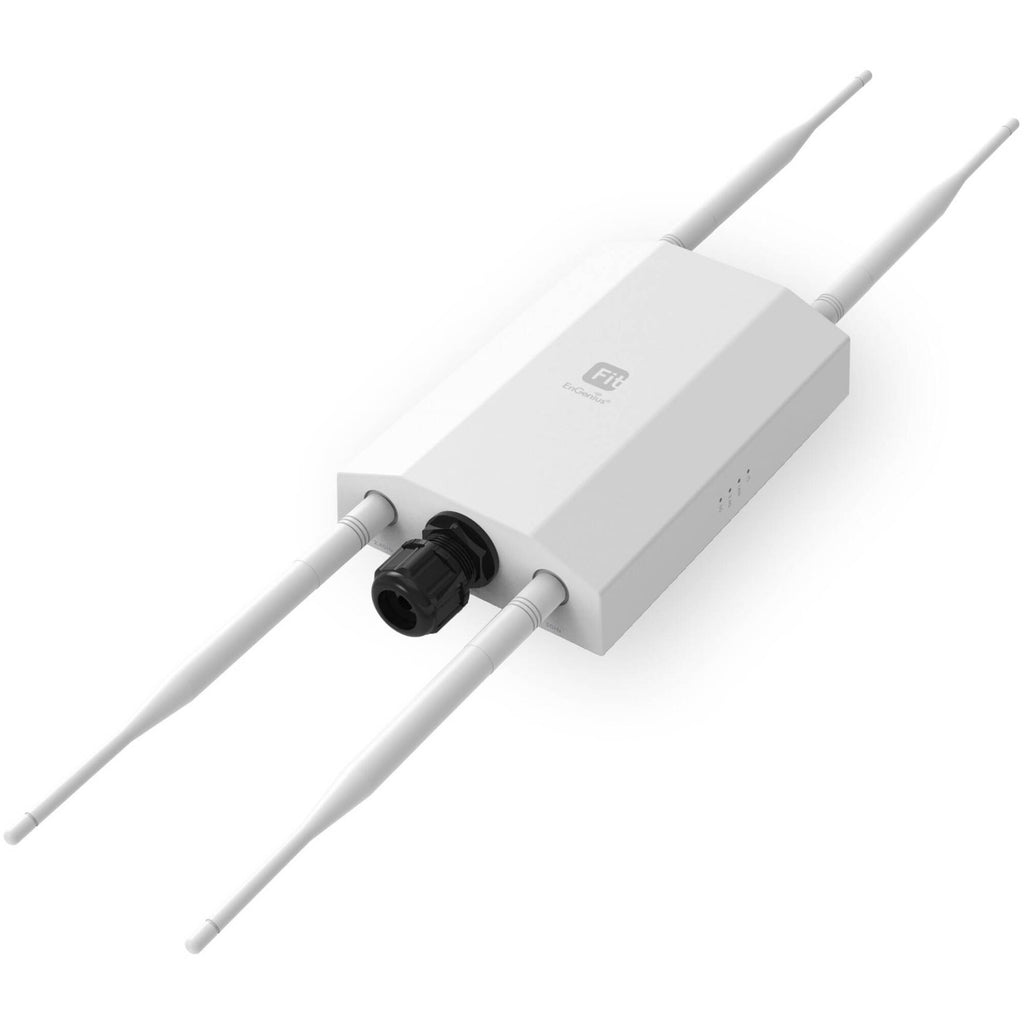

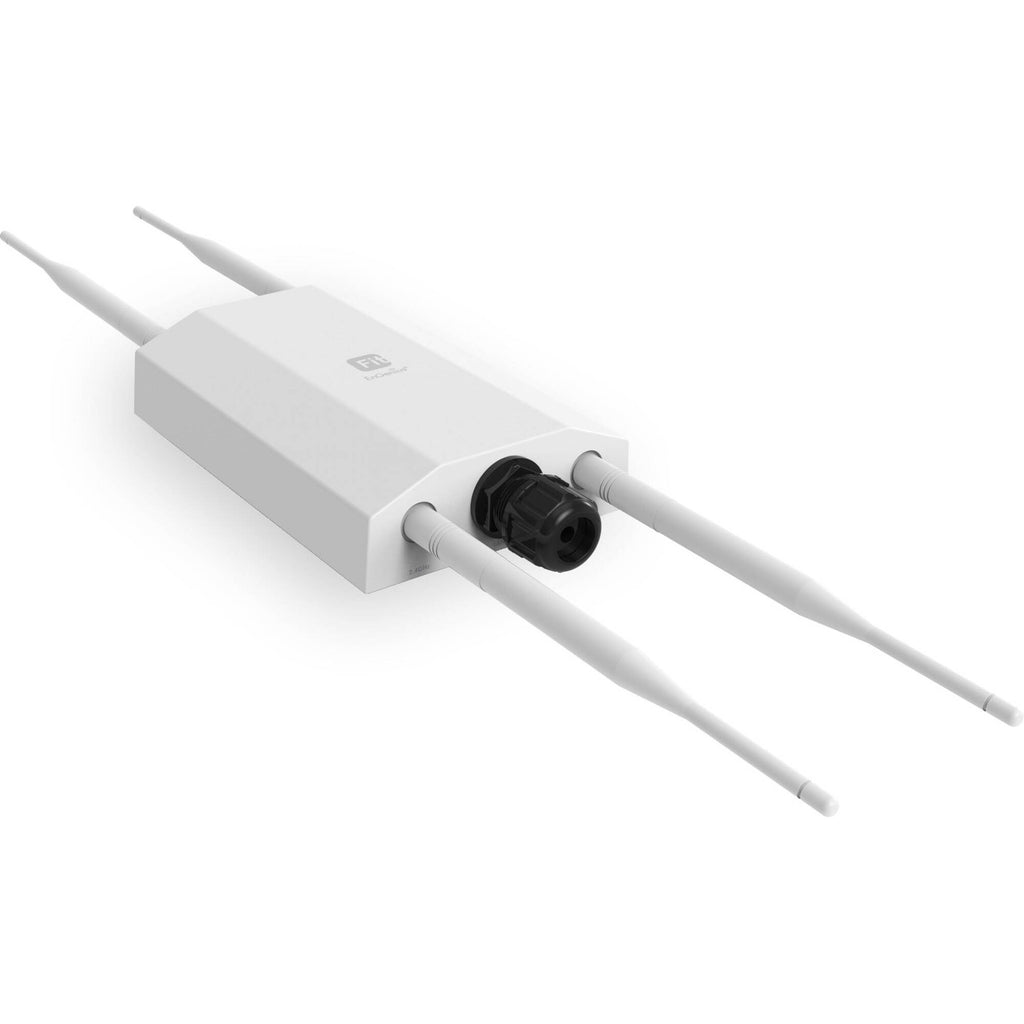

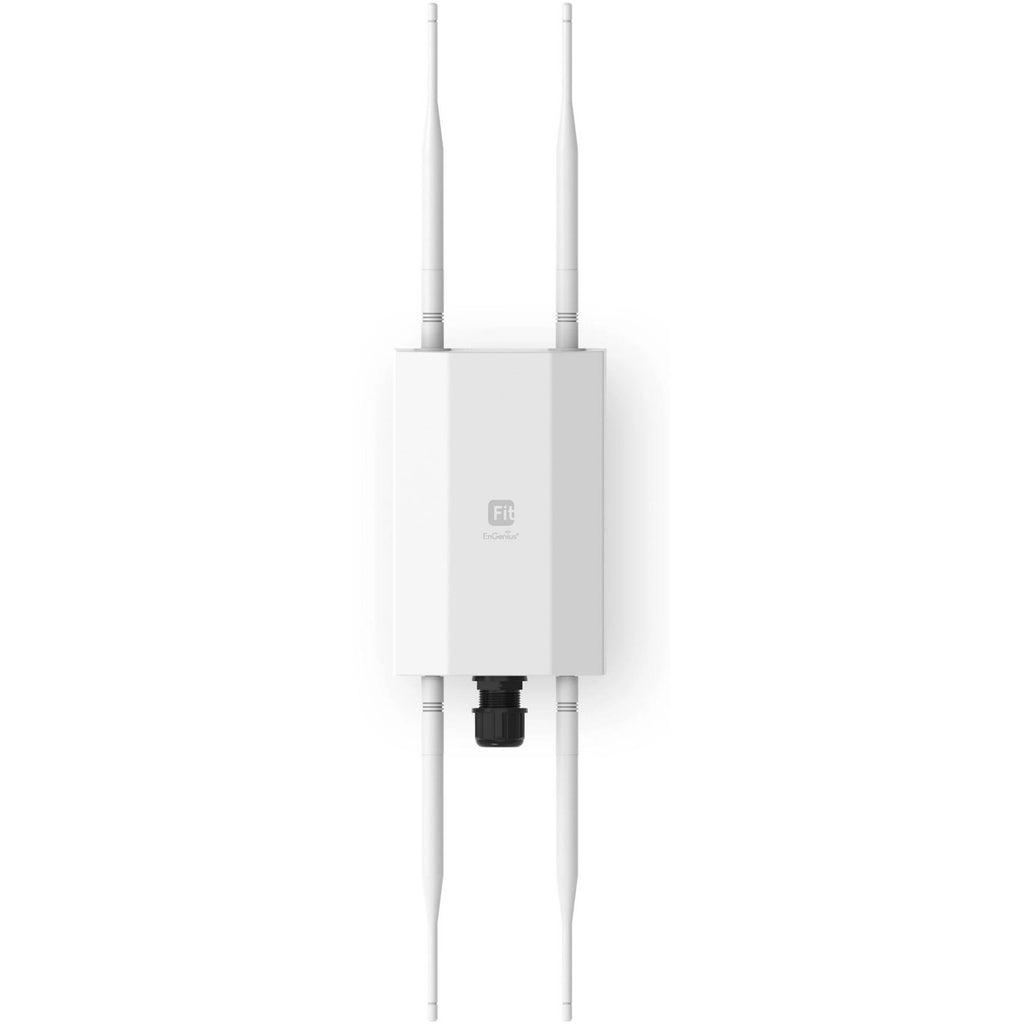

EnGenius EWS850-FIT Overview
Expand your small business's outdoor Wi-Fi coverage with the EWS850-FIT AX1200 Wireless Dual-Band Outdoor Access Point. This rugged Wi-Fi 6 (802.11ax) access point features IP67-rated weather and dustproofing for outdoor deployments while its four detachable 5 dBi SMA antennas deliver up to 1775 Mb/s transfer speeds with compatible devices over the 2.4 GHz and 5 GHz bands. Connecting PoE+ complaint network devices to the 2.5G Ethernet port allows you to transfer data and power over a single cable measuring up to 328 feet. You can quickly manage your network from almost anywhere via the FitXpress cloud-based mobile app or web portal. Pole and wall mounting hardware is included.
In the Box
- EnGenius EWS850-FIT AX1200 Wireless Dual-Band Outdoor Access Point
- Pole-Mounting Brackets
- Wall Screw Set
- 2 x 2.4 GHz SMA Antennas
- 2 x 5 GHz SMA Antennas
- Limited 1-Year Manufacturer Warranty
EnGenius EWS850-FIT Specs
Wireless
| Wi-Fi |
Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support |
| Number of Antennas |
4 |
| Antenna Gain |
5 dBi |
| Transmit Power |
23 to 25 dBm |
| Supported Protocols |
SNMPv1
SNMPv2c
SNMPv3
SSID |
| Antenna Placement |
External (Detachable) |
| Bluetooth |
None |
| Throughput |
1774 Mb/s Total
5 GHz: 1200 Mb/s
2.4 GHz: 574 Mb/s |
Interface
| Inputs/Outputs |
1 x 2.5 Gb/s Ethernet (RJ45) (Uplink) PoE |
| USB Sharing Support |
No |
Security
| Wireless Security |
WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
Management
| Operation Modes |
Access Point, Mesh |
| Mobile App Compatible |
Yes
*As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Hardware
| Supported IEEE Standards |
802.11a, 802.11ac, 802.11ax, 802.11b, 802.11g, 802.11n, 802.3af, 802.3at |
Electrical
| Power Consumption |
?15.9 W |
Environmental
| Operating Temperature |
12 to 92°F / -20 to 60°C |
| Storage Temperature |
-40 to 176°F / -40 to 80°C |
General
| Mount Options |
Pole, Wall |
| Dimensions |
7.5 x 4.9 x 2.1" / 190 x 124 x 52.5 mm |
| Weight |
1.5 lb / 0.7 kg |
Packaging Info
| Package Weight |
3.8 lb |
| Box Dimensions (LxWxH) |
11.5 x 9.3 x 5.7" |
