Description
- Support for up to 4 Concurrent Calls
- Independent 2-Way Intercom
- Push-to-Talk Broadcast Support
- Durable & Rugged Design
- Up to 12 Floors Building Penetration
- 250,000 sq. ft. Facility Coverage
- 3,000 Acre Open Land Coverage
- Operates on the 900 MHz Frequency
- Single Cell Technology
- Lower Total Cost of Ownership
With the ability to penetrate up to 12 floors and a coverage range of up to 250,000 square feet, the DuraFon-SIP System Long-Range SIP Cordless Phone System from EnGenius is designed to simplify communications in the office or on the job site. Installation and configuration is simple as this unit comes compatible with any IP-PBX phone system that supports the Standard SIP protocol or traditional PSTN line setup. Once configured the included base station is capable of handling up to four calls simultaneously which greatly enhances workflows. This SIP phone system also supports two way intercom functionality when conversations need to be kept private and a broadcast feature for instant communication with multiple handsets at once.
- Durable, Ruggedized Design
- The DuraFon-SIP's durable, rugged Handset is designed for use in harsh environments and tested to withstand 6-foot drops, over 50 times onto concrete floors without breaks.
- Long-Range Performance
- DuraFon-SIP implements a high-powered 900 MHz proprietary air protocol, with high RF transmission and sensitivity to provide superior range and coverage for the industrial market; covering up to 250,000 sq. ft. indoors, 3,000 acres outdoors, and penetrating up to 12 floors.
- Highly Secure Wireless Communications
- Adopting 900 MHz (902~928 MHz) FHSS (Frequency Hopping Spread Spectrum) technology, the DuraFon-SIP ensures secure communications during conversations.
- Single Cell Technology Minimizes Equipment Needs
- Designed to simplify deployment, the DuraFon-SIP features single cell technology that leverages a single 900 MHz Base Station for long-range coverage, eliminating the need for added Base Stations or repeaters, helping companies lower their capital expenses through faster deployment.
- Lower Total Cost of Ownership Available for SIP Deployments
- Unlike other SIP systems, the DuraFon-SIP offers a low TCO available for SIP deployments. By simplifying and expediting system deployments, the DuraFon-SIP lowers overall equipment costs and ensures less downtime through its proven reliability, reducing overall operating expenses for the life of the system.
- Easy Phone Book and System Configuration Management
- Easily configure and manage the master phone book via the DuraFon-SIP Base Station Web Interface and effortlessly transfer updates to each Handset via air.
- Operates Independently of Wi-Fi Networks
- DuraFon-SIP operates independently of your existing Wi-Fi network, which means you don't need to be concerned with roaming or QoS issues that are typical with voice communications on a WLAN. By using the 900 MHz frequency, there is also no need to worry about the DuraFon-SIP receiving or causing interference to existing 2.4 GHz and 5 GHz Wi-Fi.
- Independent 2-Way Intercom
- The DuraFon-SIP's Handset provides direct handset-to-handset communication without going through the Base Station for quick contact with specific users without group chatter.
- Broadcast Feature
- DuraFon-SIP offers the favored, "Push-to-Talk" feature through the Handset's Broadcast button, allowing users to create one-way communications for 1-to-All or 1-to-A Handset Group for instant response without the wait.
- Dual Interface
- Support for both SIP and PSTN lines permit the connection of the Base Station to a legacy PBX, IP-PBX or preference service provider and gives users up to four talk paths via four digital calls or three digital calls and one analog line.
In the Box

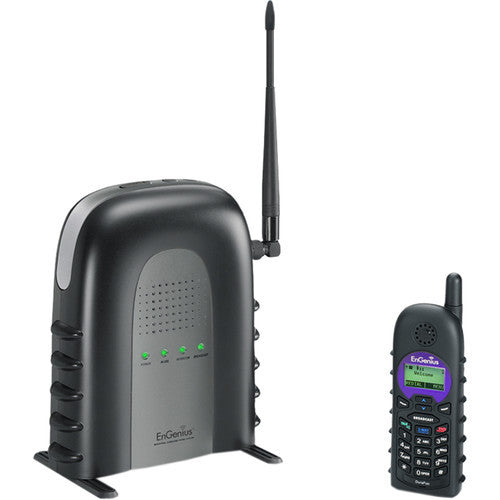

EnGenius DuraFon-SIP System Long-Range SIP Cordless Phone System

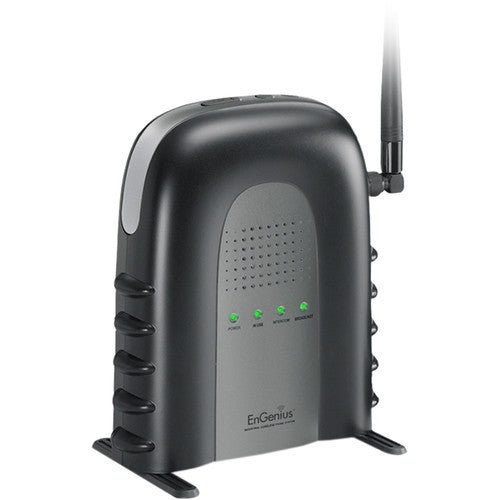

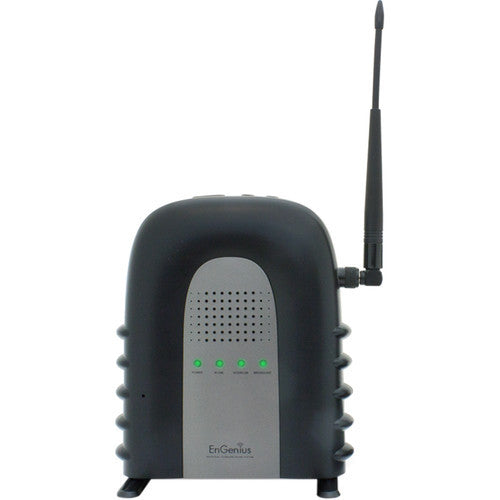

- Base Station

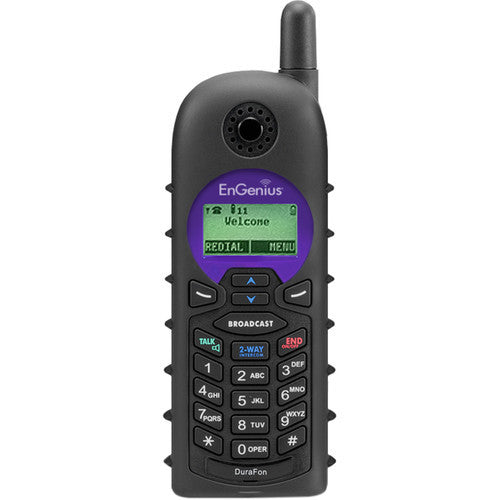

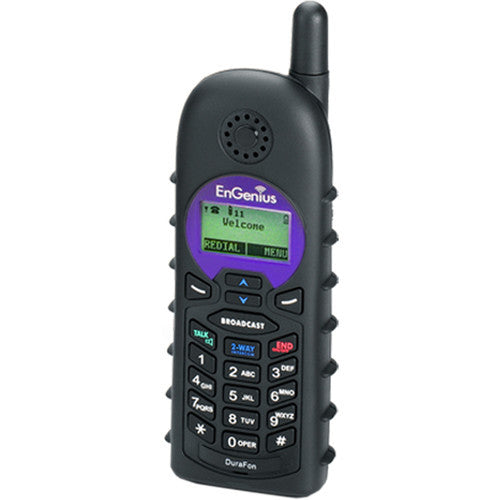

- Handset
- 1700 mA Li-ion Battery Pack
- Desktop Charger
- Telephone Cord
- RJ-45 Cable
- Base Feet and Screws
- Limited 1-Year Manufacturer Warranty
| Base Station | |
|---|---|
| Physical Specifications | Buttons Volume UP Volume DOWN REG x 1 RESET x 1 Broadcast Intercom Jack 1 x Line x 1 LAN x 1 Audio-In x 1 Type-B USB x 1 DC x 1 Grounding LED Indicators POWER In-Use Intercom Broadcast |
| Electrical Specifications | Frequency 902-928 MHz RF Power Peak: 708 mW Average: 354 mW Channel Spacing 200 kHz Number of Channels 128 Modulation MSK Multiple Access Frequency Hopping TDMA Frequency Hopping Rate 100 per second TDMA Frame Length 10 ms Number of Talk Paths 4 Receiver Sensitivity < -108 dBm (@ BER 10-2) Antenna Connector Reverse TNC Antenna Gain 2 dBi (included) 6 dBi Outdoor (Optional) 2.7 dBi Indoor (Optional) Telephone Interface 1 x RJ-11 VoIP Interface 1 x RJ-45 Default IP Address 192.186.1.156 Default User Name & Password admin/admin SIP Protocol RFC 3261 Speech Coding 64Kbps G.711a, G.711u 8 kbps G.729A Channel Coding 8 kbps Convolutional + CRC Transmission Data Rate 170.667 kbps User Data Rate 128 kbps Duplex Duplex Time Division Duplex (TDD) Voice Quality TIA/EIA-470B Number of System ID 65,536 Ring Signal 20-50 Hz, 15-90 Vrms Flash Time 100-900 ms Programmable Power Source 100~240V/12V AC/DC Adapter |
| Regulation Compliance | FCC Part 15, Part 68 |
| Temperature & Humidity | Operating Temperature: 32 to 122�F / 0 to 50 �C Storage Temperature: 14 to 158�F / -10 to 70�C Humidity: 20 to 75% |
| Dimensions | 6.3 x 16.5 x 7.4" / 161 x 42 x 188 mm |
| Weight | 1.9 lb / 0.9 kg |
| Handset Specifications | |
|---|---|
| Physical Specifications | Buttons Left & Right Soft-Key Up Down Talk/Speaker 2-Way Intercom End & Powerv Broadcast 0-9, *, # Jack Earphone DC |
| Electrical Specifications | Frequency 902-928 MHz RF Power Peak: 708 mW Average: 88.5 mW Channel Spacing 200 kHz Number of Channels 128 Modulation MSK Multiple Access Frequency Hopping TDMA Frequency Hopping Rate 100 per second TDMA Frame Length 10 ms Number of Talk Paths 2 Receiver Sensitivity < -108 dBm (@ BER 10-2) Antenna Connector Non-Standard Antenna Gain 2 dBi (Long) 0.5 dBi (Short) TX Power Control Range 100-708 mW Speech Coding 8 kbps G.729A Channel Coding 8 kbps Convolutional + CRC Transmission Data Rate 170.667 kbps User Data Rate 128 kbps Duplex Duplex Time Division Duplex (TDD) Voice Quality TIA/EIA-470B Number of System ID 65,536 Power Source 3.7 V, 1700 mAh Li-ion Battery Charge Time, Current 4 Hours (from empty) @ 500 mA Battery Talk & Standby Time 6 Hours / 50 Hours |
| Regulation Compliance | FCC Part 15, Part 68 |
| Temperature & Humidity | Operating Temperature: 14 to 140�F / -10 to 60�C Storage Temperature: 14 to 158�F / -10 to 70�C Humidity: 20 to 75% |
| Dimensions | 6.3 x 2.2 x 1.2" / 161 x 58 x 31 mm |
| Weight | 1.6 lb / 0.7 kg |
