Description
Elvid BNC-1505A Overview
This Coaxial BNC Connector for Belden 1505A from Elvid is a crimp-style BNC connector that terminates in a 1505A coaxial RG-59 cable and is ideal for sending analog or digital signals in any 75-ohm applications in your home, studio, or on location with long cable runs. Have a crimping tool on hand to ensure that this field-replaceable connector can quickly come to the aid of any damaged cable and give you reliable, trouble-free, and durable connectivity without interrupting your workflow. The center pin works best with a 0.052" crimp die.

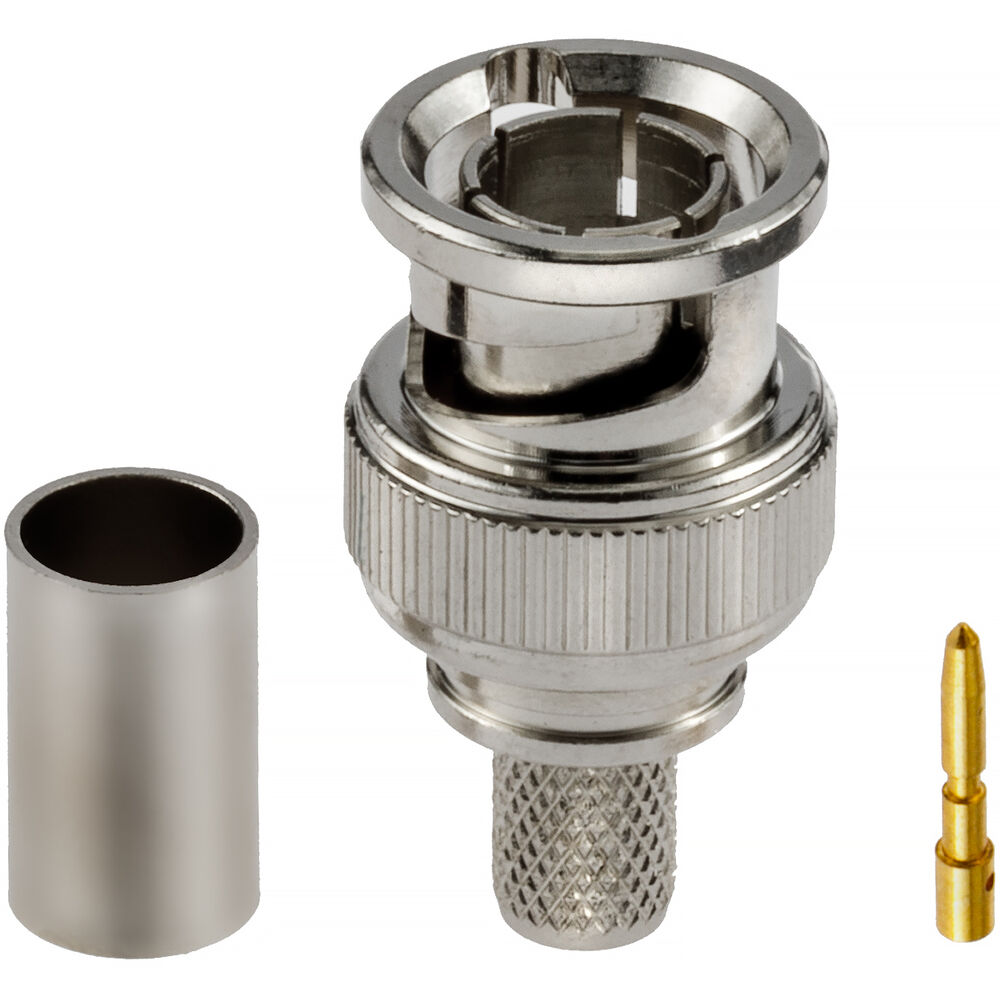

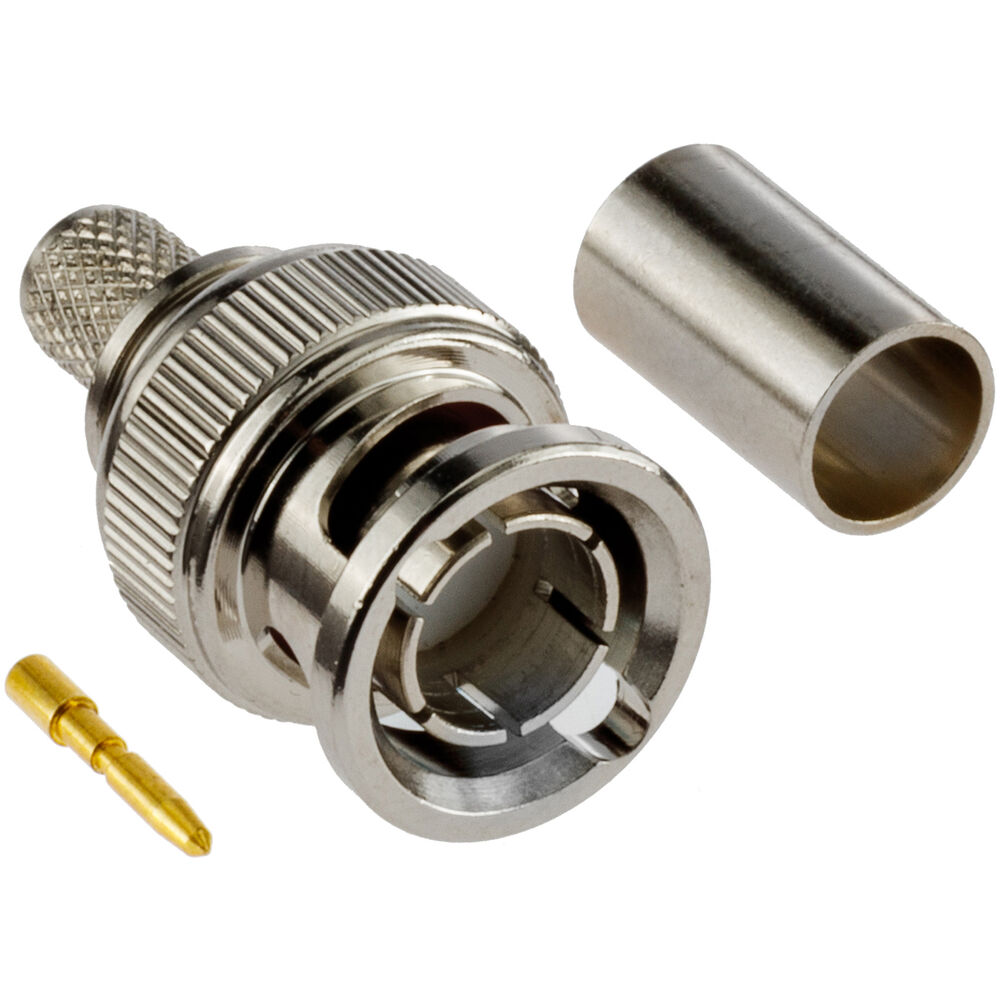

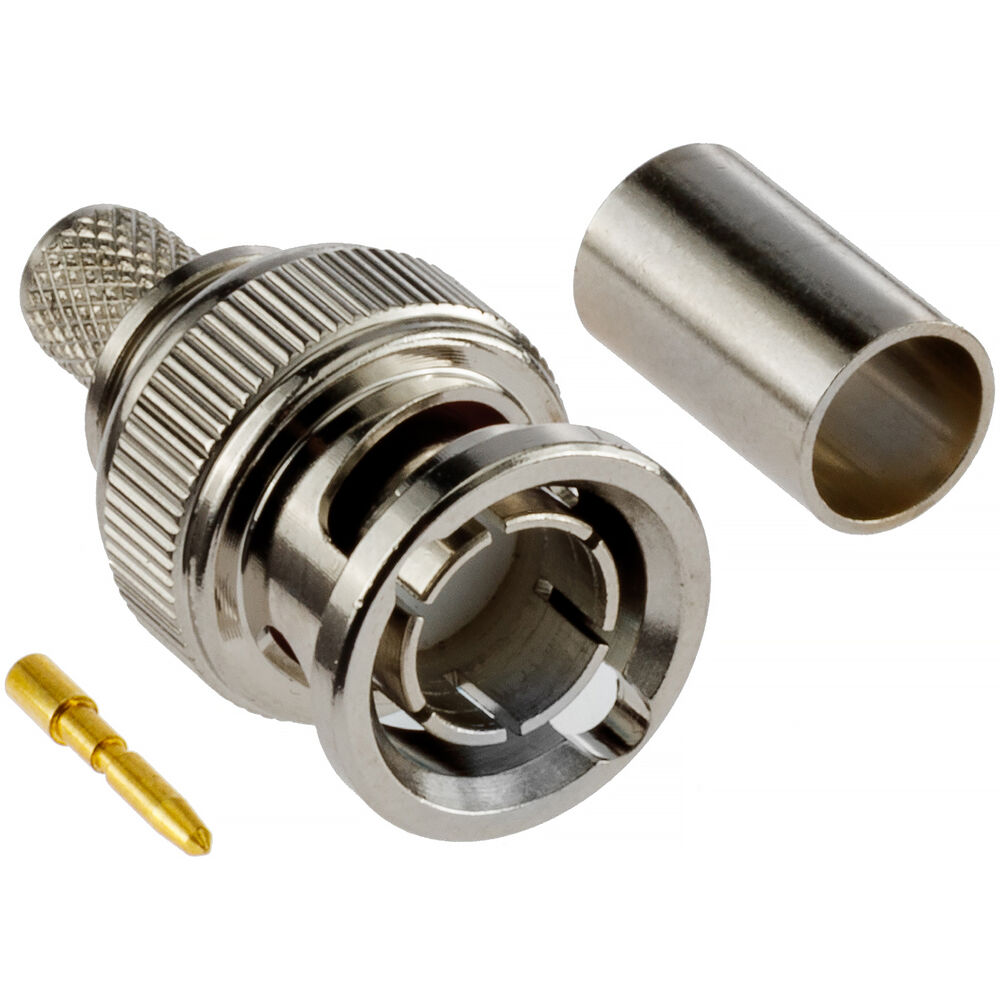

- 100 x Elvid Coaxial BNC Connector for Belden 1505A
- BNC Connector Body
- Crimping Sleeve
- Center Conductor Pin
- Limited 1-Year Manufacturer Warranty
No additional resources available
Elvid BNC-1505A Specs
| Compatibility |
Belden 1505A Coaxial Cable
|
| Impedance |
75 Ohms
|
| Material of Construction |
Body: Nickel Plated, Contact: Gold Plated
|
| Dimensions |
1" / 25.5 mm (Length)
0.6" / 14.4 mm (Diameter) |
| Weight |
0.3 oz / 9 g
|
| Package Weight |
0.03 lb
|
| Box Dimensions (LxWxH) |
3.75 x 3.2 x 0.65"
|
All product and company names are trademarks or registered trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 32286.1 |
| 3-5 | ₹ 31956.65 |
| 5-10 | ₹ 31297.75 |
| 10+ | ₹ 30638.85 |
Bulk discount will be automatically applied during checkout based on quantity.
