Description
- Backlit IPS Monitor with Shutter Release
- 1280 x 800 Resolution
- 800:1 Contrast Ratio
- HDMI & Composite Inputs
- HDMI Loop Output
- False Color, Zebra, Histogram & More
- DSLR Scaling for Full Screen Viewing
- Includes F-970 & LP-E6 Battery Plates
- Canon Shutter Release Cable Supplied
- Nikon Shutter Release Cable Supplied

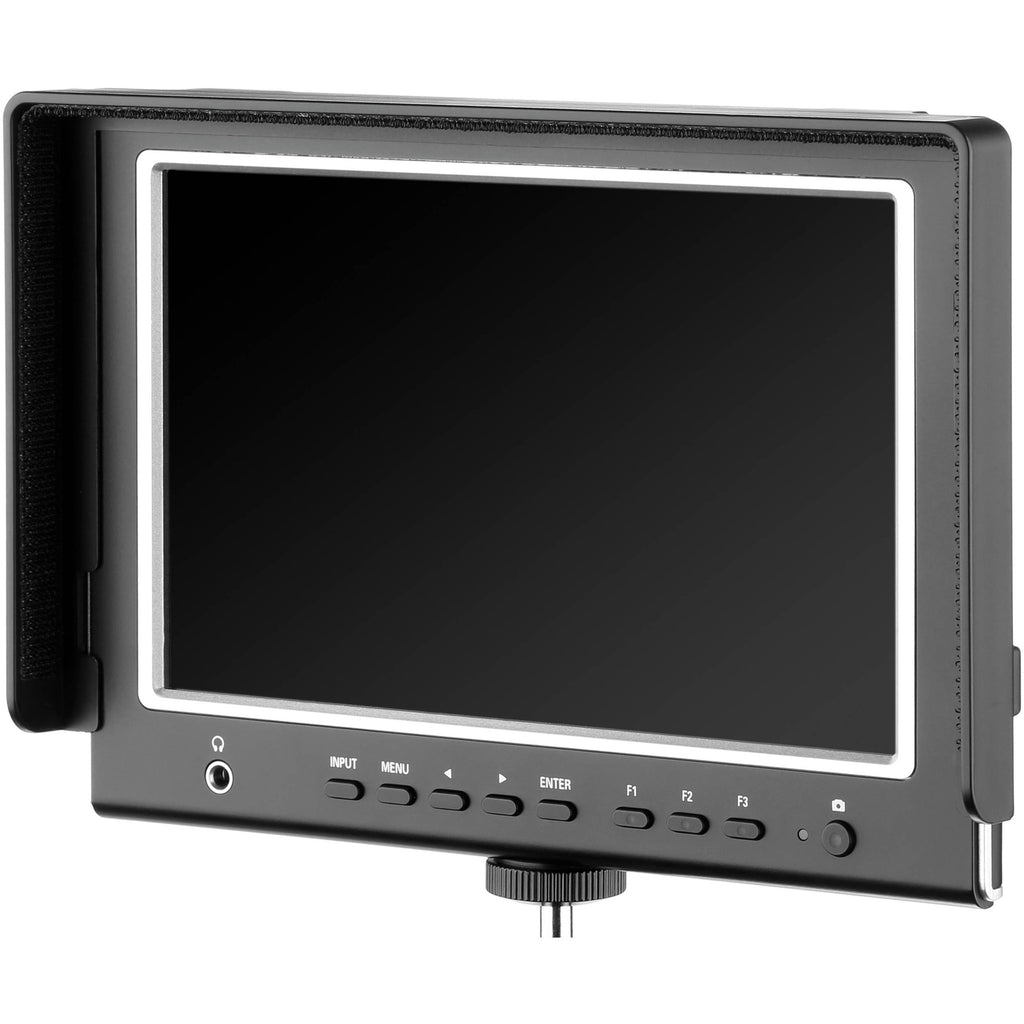

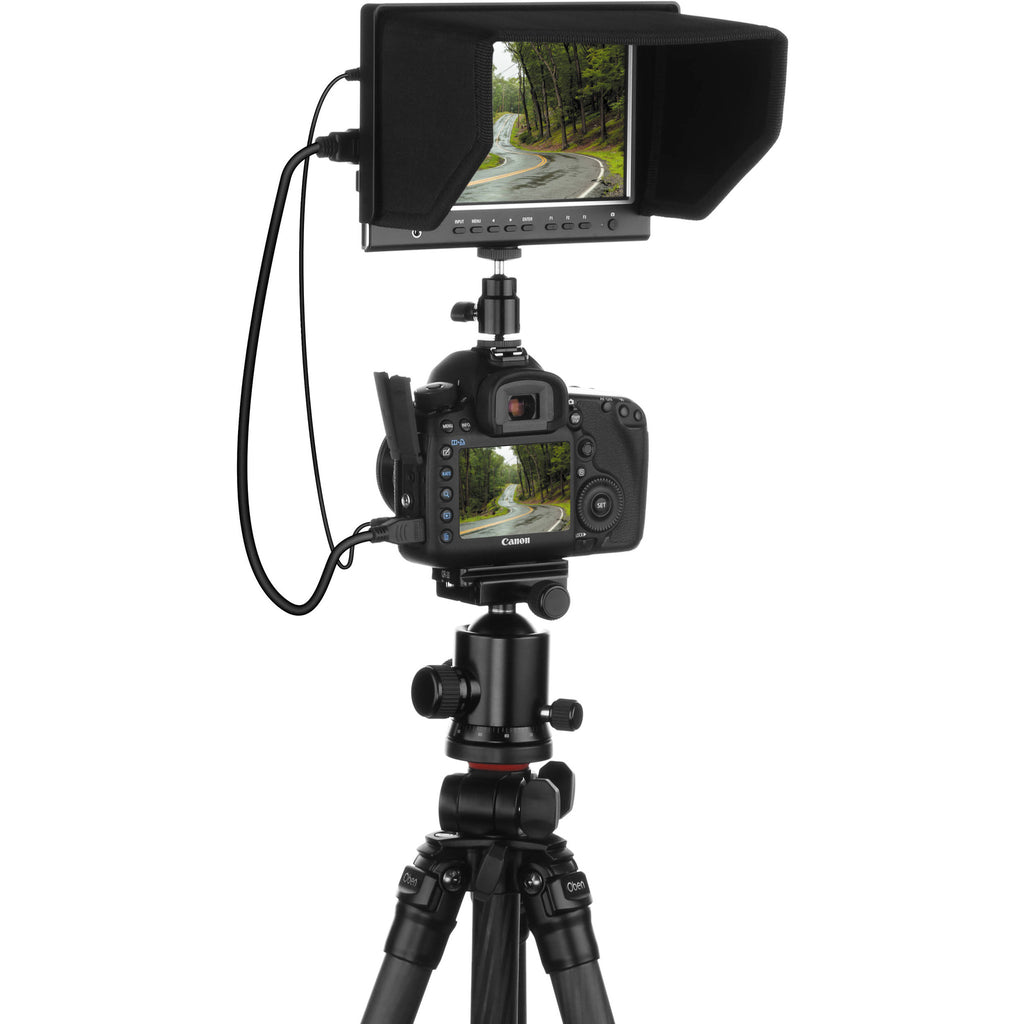

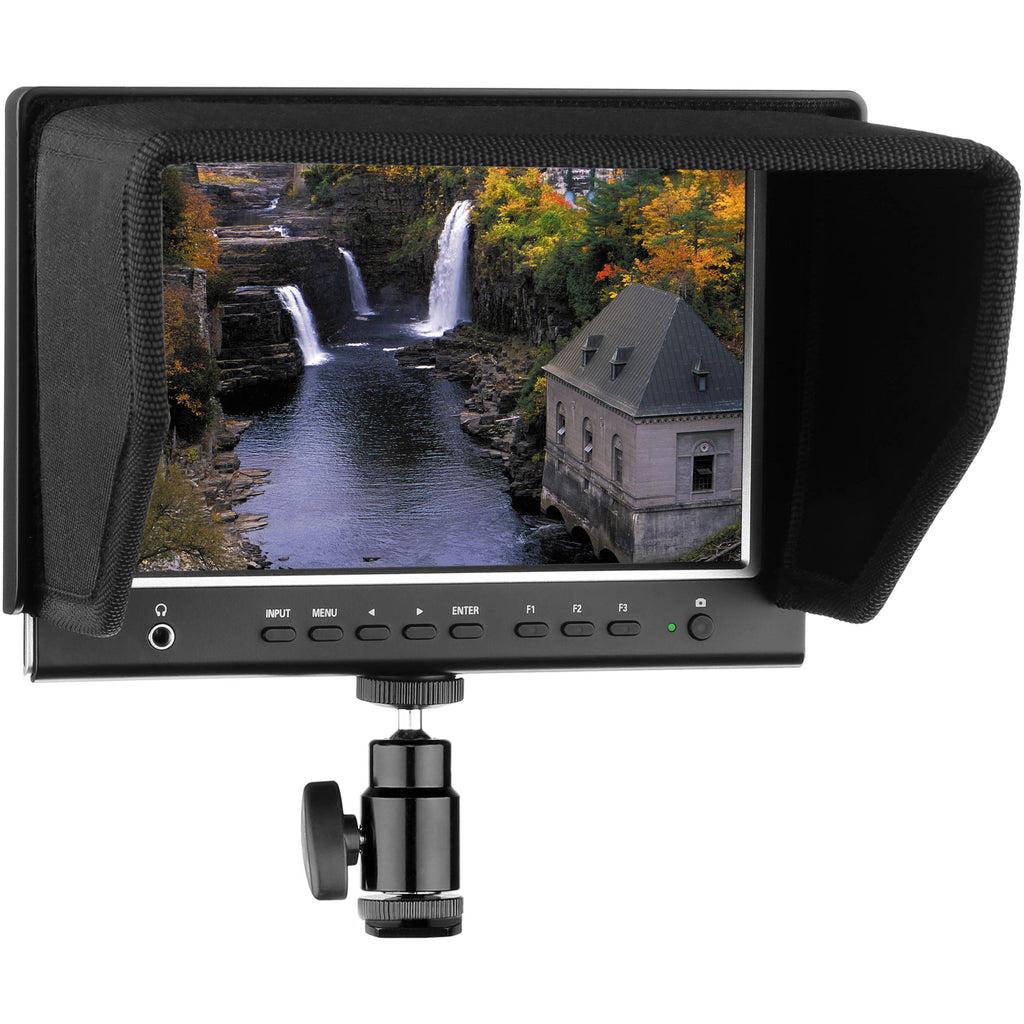

Elvid's 7" RigVision is a very lightweight on-camera monitor offering high image quality and incorporating remote shutter release functionality. Set up and monitor your shots in 1280 x 800 high resolution and sharp 800:1 contrast ratio. Analyze focus, exposure, and other characteristics with False Color, Zebra, Pixel-to-Pixel, Histogram, and altogether over a dozen features. Connect to simultaneously active HDMI and Composite inputs, and loop out the HDMI signal to a recorder or other device. Connect a shutter release cable to a port on the side and take photos using a shutter button on the front panel. For audio monitoring, the RigVision features a built-in speaker, headphone output, and on-screen audio level meter. An assortment of supplied accessories includes two interchangeable DV battery plates, V-mount and Gold-mount plate adapter, and shutter release cables.

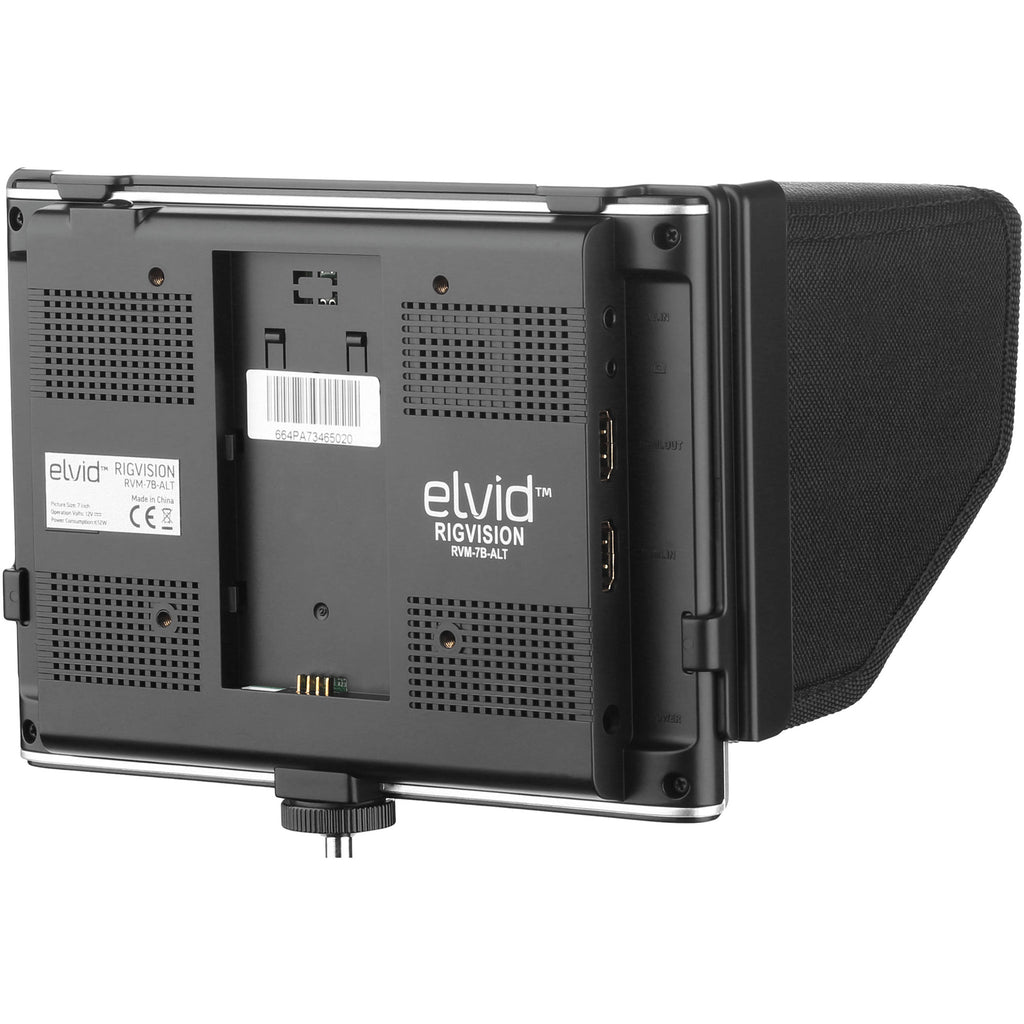

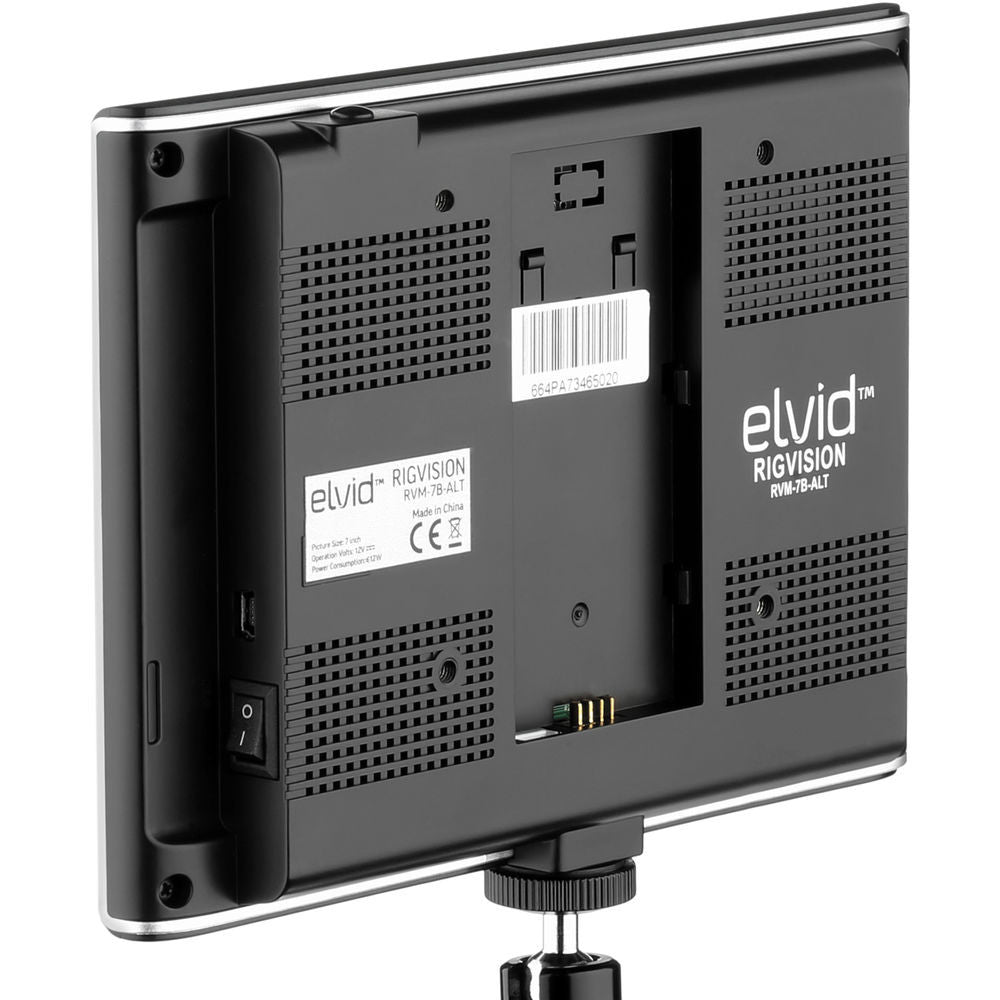

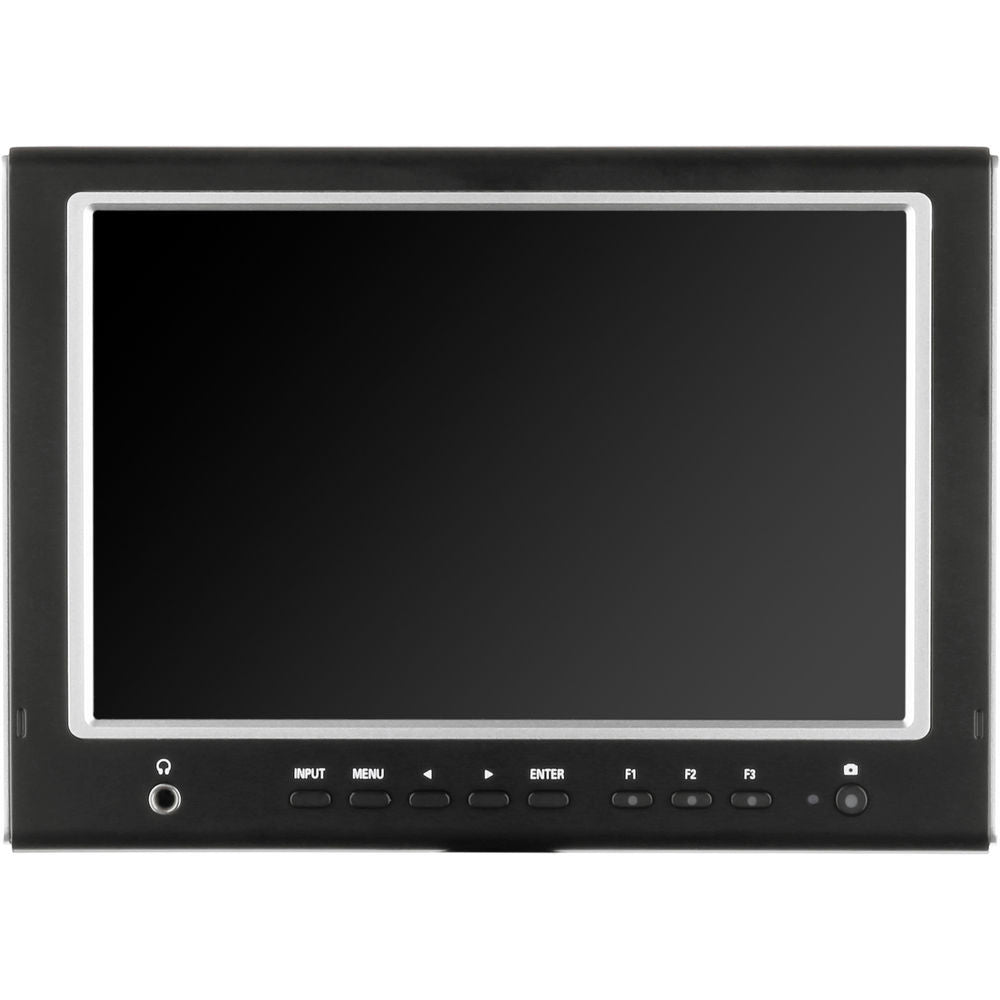

13 functions in total are assignable across three function buttons on the front panel. The included DV battery plates are for Sony F-970 and Canon LP-E6 compatible batteries, and they simply snap into place without any screws required, and additional plates are optionally available from Elvid. An AC power adapter is also included. Weighing less than 1 lb, the 7" RigVision rests easily on your camera while providing a large monitoring display.
- Key Features
-
- Lightweight LED backlit IPS on-camera monitor
- Remote shutter release port and shutter button
- 1280 x 800 resolution
- 800:1 contrast ratio
- 178° viewing angle

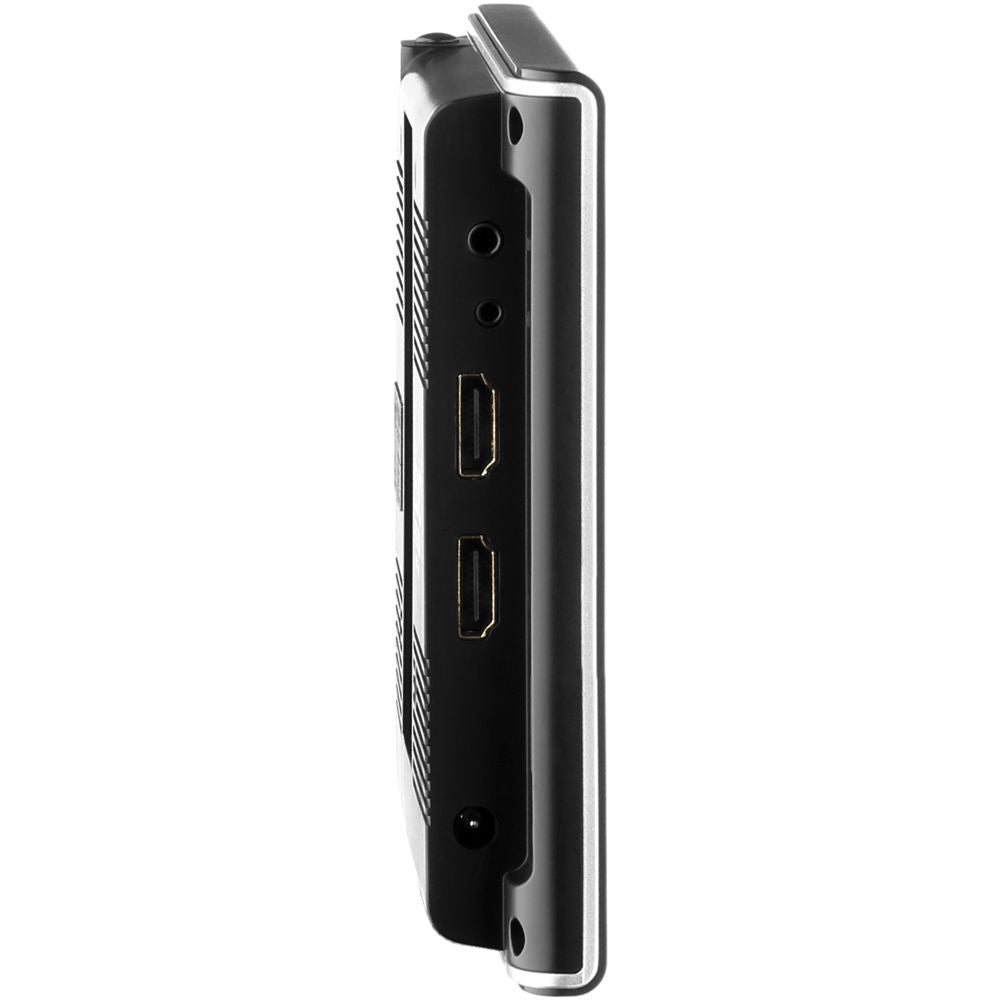

- HDMI and Composite inputs; HDMI loop output
- Fully compatible with RED cameras
- Built-in speaker and headphone output

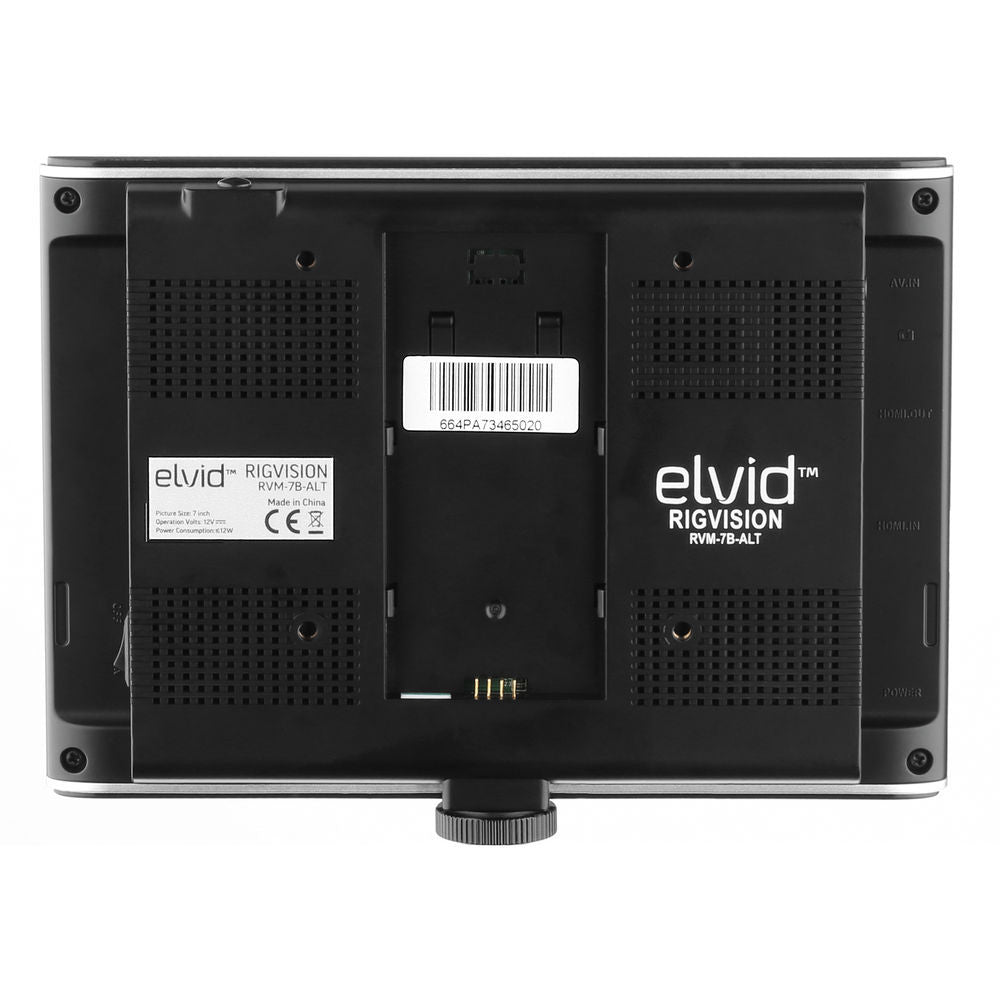

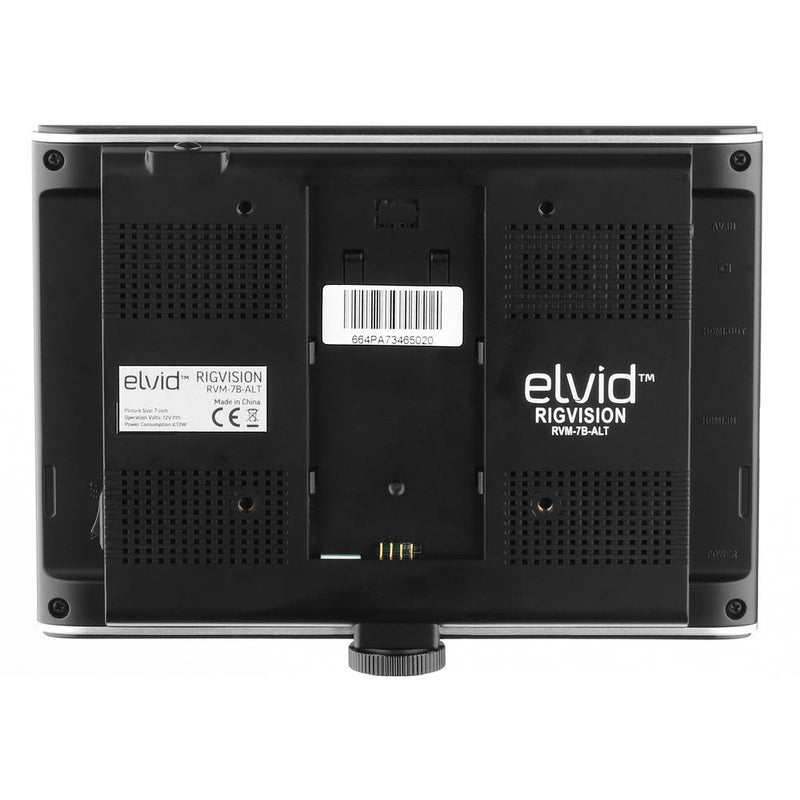

- Includes interchangeable F-970 and LP-E6 DV battery plates
- Includes V-mount and Gold-mount plate adapter
- DC power cable included
- Canon 3-pin and Nikon 10-pin shutter release cables supplied
- Monitoring Features
-
- Histogram
- 1:1 Pixel-to-Pixel
- Picture-in-Picture (for when the HDMI and Composite inputs are used simultaneously)
- H/V Delay
- Underscan
- Center Marker
- Zoom (up to 8x)
- False Color
- Peaking
- Zebra
- Color Bar
- Image Flip
- Audio Level Meter
- Adjustable color temperature
| Display | 7" (17.8 cm) LED backlit IPS panel |
| Aspect Ratios | 16:10, 16:9, 4:3, 1.85:1, 2.35:1 |
| Resolution | 1280 x 800 |
| Brightness | 400 cd/m² |
| Contrast Ratio | 800:1 |
| Viewing Angle | 178°/178° |
| Inputs | 1x HDMI 1x Composite |
| Outputs | 1x HDMI loop output 1x 3.5 mm headphone output |
| Speaker | Built in |
| Input Voltage | 7 to 24 V DC |
| Current | 900 mA |
| Power Consumption | ? 12 W |
| Dimensions | 7.3 x 5.2 x 0.9" (18.5 x 13.2 x 2.3 cm) |
| Weight | 0.8 lb (365 g) |
| Packaging Info | |
|---|---|
| Package Weight | 3.35 lb |
| Box Dimensions (LxWxH) | 8.74 x 6.063 x 4.567" |

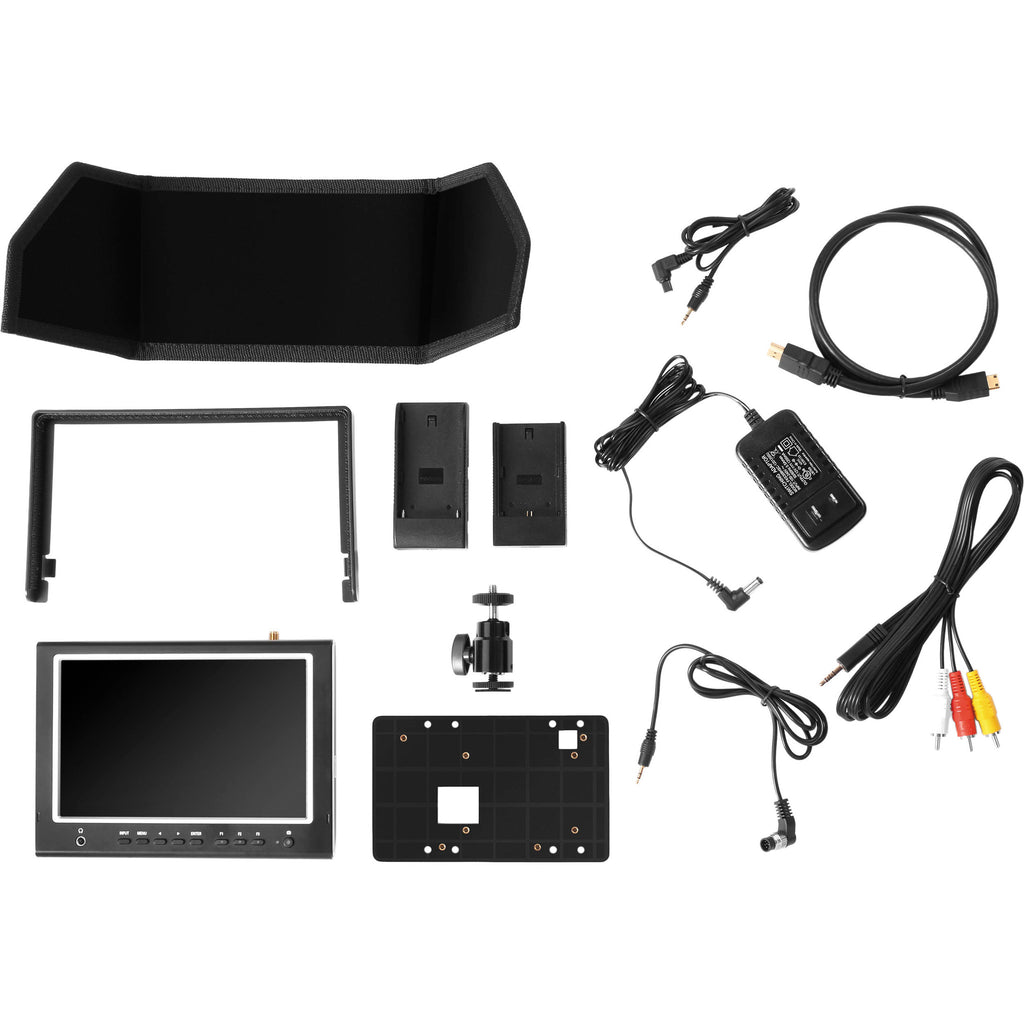

- 12V AC Power Adapter
- Elvid Battery Plate for F-970 Compatible Batteries
- Elvid Battery Plate for LP-E6 Compatible Batteries
- V-Mount / Gold-Mount Adapter Panel

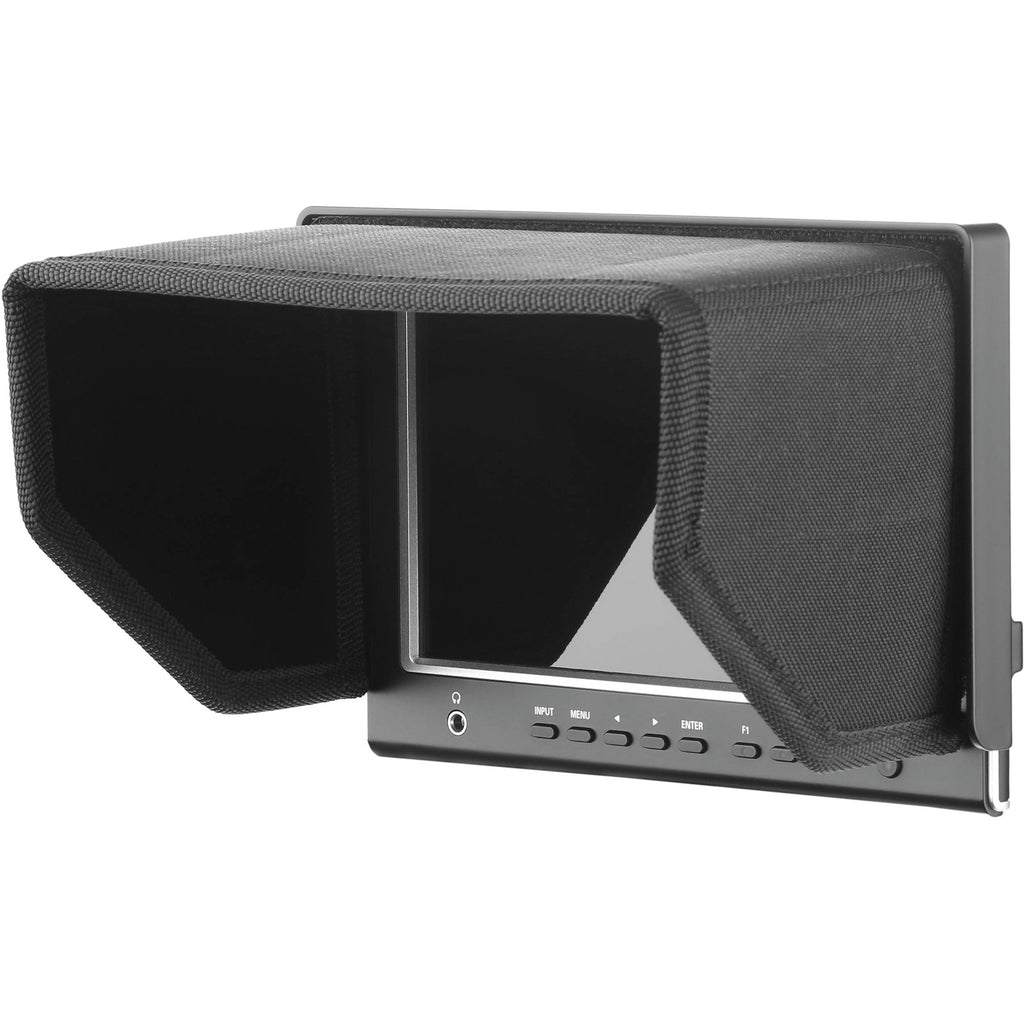

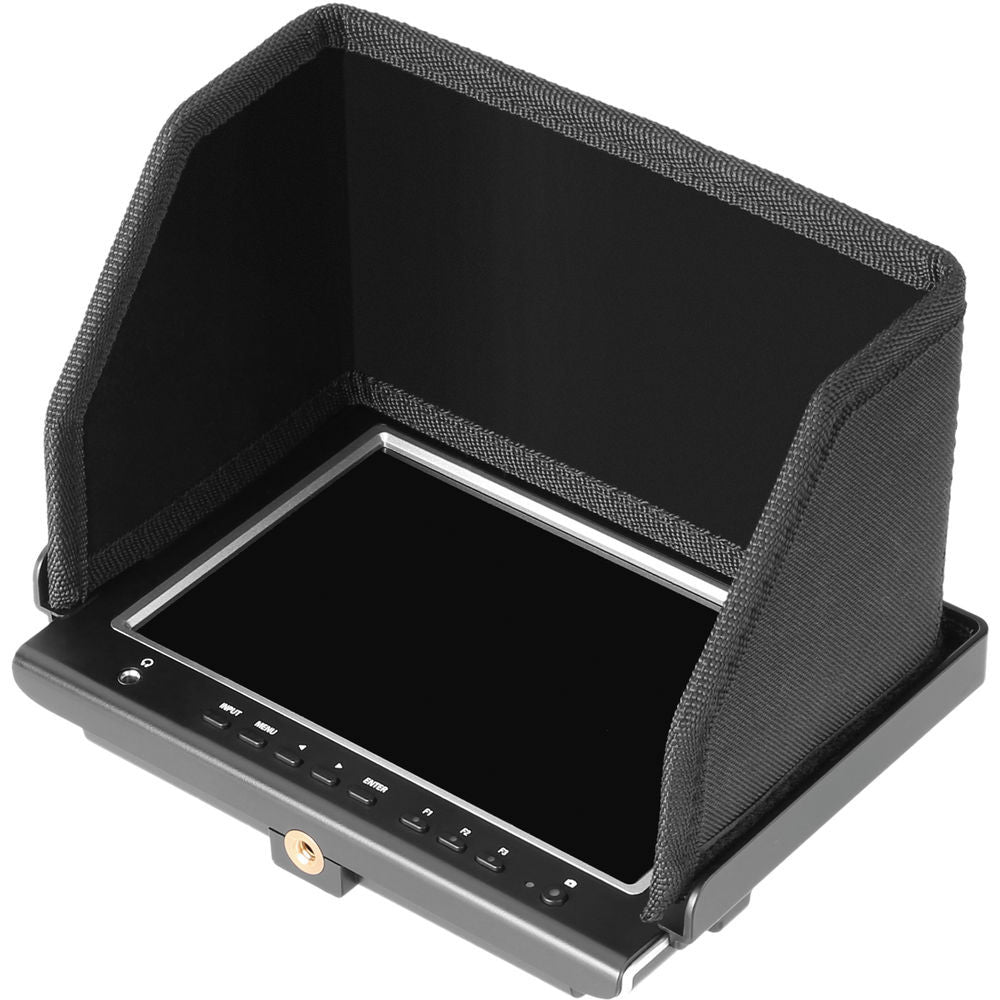

- Sun Shade Cover
- Sun Shade Bracket
- Canon 3-Pin Shutter Release Cable
- Nikon 10-Pin Shutter Release Cable
- HDMI to Mini HDMI Cable
- Shoe Mount Adapter
- User Manual
- Limited 1-Year Warranty
