Elo Touch E440234 Overview
-
1Description
-
2Elo Edge Connect
-
3High Connectivity
-
4Durable Design
-
5Add a Customer-Facing Display
-
6USB 3.1 Gen 1

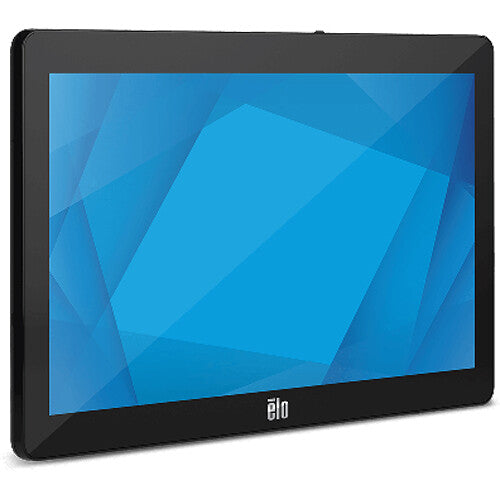

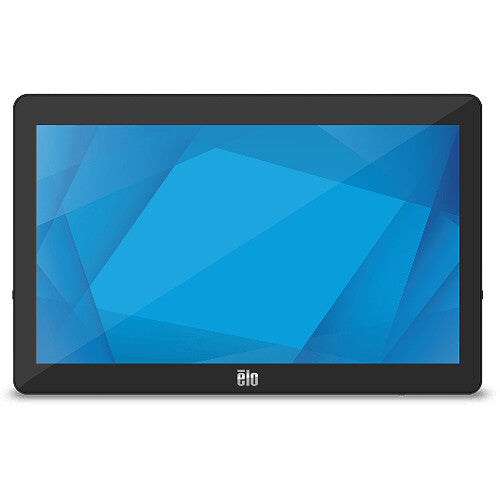

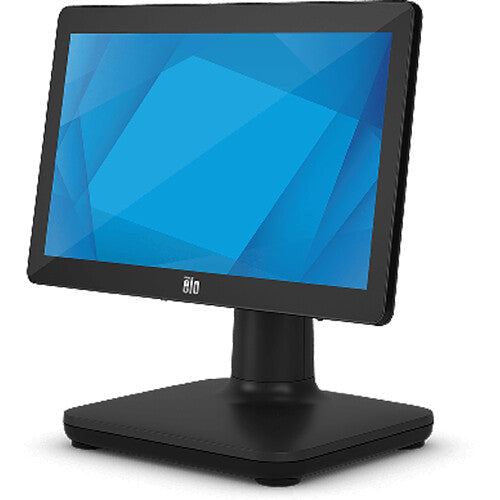

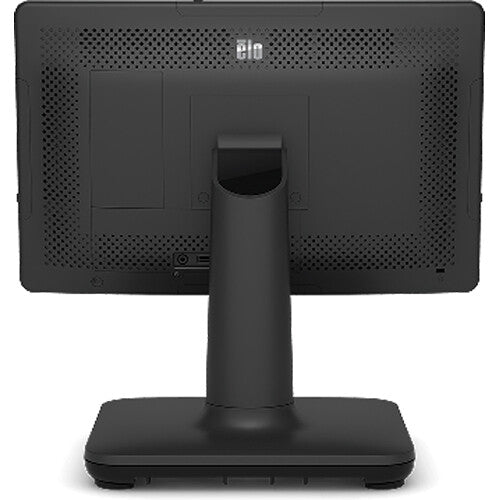

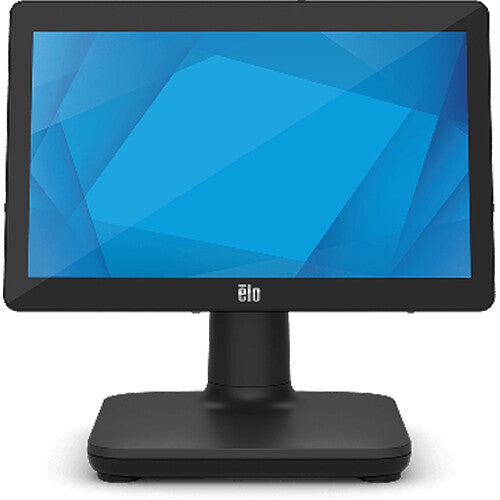

Enhance your retail business with the highly versatile 15.6" EloPOS E440234 Multi-Touch All-In-One Desktop Computer from Elo. Purpose-built specifically for point-of-sale (POS) industries such as retail, hospitality, and entertainment, this stylish all-in-one system features a 15.6" 1366 x 768 HD resolution touchscreen display that can be adapted for traditional POS applications or customer-facing self-service display. Inside is a 2 GHz Intel Celeron J4125 quad-core processor with 4GB of DDR4 memory and a 128GB M.2 SATA solid-state drive that can reliably run a variety of retail applications. Both its screen and its included stand have multiple connection ports available for separately purchased peripherals such as a payment reader, printer, cash drawer, barcode scanner, or scale. Use the included adapter to convert a designated RJ45 port to a serial port.
With Wi-Fi 5 (802.11ac) support, EloPOS E440234 may be connected to compatible high-speed wireless networks. Alternatively, you can connect directly to a wired network through its Gigabit Ethernet port. Windows 10 IoT Enterprise 64-bit is preinstalled on the system.
Built with versatility in mind, Elo Edge Connect offers a wide assortment of peripheral options. Whether for point of sale, endless aisle, or self-order applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. Additionally, you can add or move them later as your needs change.
3 x USB 3.1 Gen 1 Type-A
2 x USB 2.0 Type-A
4 x Micro-USB 2.0
1 x USB 3.1 Gen 1 Type-C
2 x RJ45 serial ports
The splash-proof housing and rugged retail-hardened design can withstand the adverse conditions associated with most commercial environments.
Add a Customer-Facing Display
The EloPOS System includes a USB Type-C port that allows you to connect a second, customer-facing display for increased interaction.
USB 3.1 Gen 1 features a maximum throughput of 5 Gb/s. USB 3.1 Gen 1 and USB 3.0 are synonymous.
In the Box
- Elo Touch 15.6" EloPOS E440234 Multi-Touch All-In-One Desktop Computer
- North American Power Cable
- EU Power Cable
- Power Adapter (180W)
- RJ45 to DB9 Cable
- Cable Cover Locking Screw
Table of Contents
- Description
- Elo Edge Connect
- High Connectivity
- Durable Design
- Add a Customer-Facing Display
- USB 3.1 Gen 1
Elo Touch E440234 Specs
| Operating System |
Windows 10 IoT Enterprise (64-Bit) |
Performance
| Processor |
Intel Celeron J4125 |
| CPU |
2 to 2.7 GHz Quad-Core |
| L3 Cache |
4 MB |
| Graphics Type |
Integrated |
| GPU |
Intel UHD Graphics 600 |
| Memory Type |
2666 MHz DDR4 |
| Total Installed Memory |
4 GB |
| Memory Configuration |
1 x 4 GB (User-Replaceable) |
| Maximum Memory Capacity |
8 GB |
| Memory Slot Type |
260-Pin SO-DIMM |
| Memory Slots |
2 (1 Available) |
| Buffered Memory |
No |
| ECC Memory |
No |
Display
| Panel Type |
LCD |
| Size |
15.6" |
| Aspect Ratio |
16:9 |
| Resolution |
1366 x 768 |
| Touchscreen |
Yes |
| Finish |
Anti-Glare / Matte |
| Maximum Brightness |
220 cd/m2 |
| Refresh Rate |
60 Hz |
| Contrast Ratio |
400:1 |
| Response Time |
10 ms |
| Variable Refresh Technology |
None |
| Viewing Angle (H x V) |
90 x 50° |
Storage and Expansion
| SSD Slots |
1 x M.2 SATA (In Use) |
| Total Installed Capacity |
128 GB |
| Solid State Storage |
1 x 128 GB M.2 SATA |
| Optical Drive |
None |
I/O
| Ports |
3 x USB-A 3.0 / 3.1/3.2 Gen 1
2 x USB-A 2.0
4 x Micro-USB 2.0
|
| USB Type-C |
1 x USB 3.0 / 3.1/3.2 Gen 1 (Supports DisplayPort and 27 W Power Delivery) |
| Audio I/O |
1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speakers |
2 x 2 W |
| Built-In Microphones |
None |
| Media/Memory Card Slot |
None |
Communications
| Ethernet |
1 x RJ45 (Gigabit) |
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth |
5.0 |
| NFC |
No |
| Webcam |
None |
Keyboard & Mouse
| Keyboard |
None |
| Pointing Device |
Touchscreen |
General
| Security |
Dedicated Hardware TPM Security Chip |
| Power Supply |
180 W with Barrel/Proprietary |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Operating Temperature |
32 to 95°F / 0 to 35°C |
| Operating Humidity |
20 to 80% |
| Mounting-Hole Pattern |
75 x 75 mm |
| Dimensions |
15.2 x 14.5 x 8.7" / 386.2 x 369.3 x 221.2 mm |
| Weight |
10.8 lb / 4.9 kg |
Packaging Info
| Package Weight |
15.33 lb |
| Box Dimensions (LxWxH) |
18.1 x 17.8 x 11.6" |
