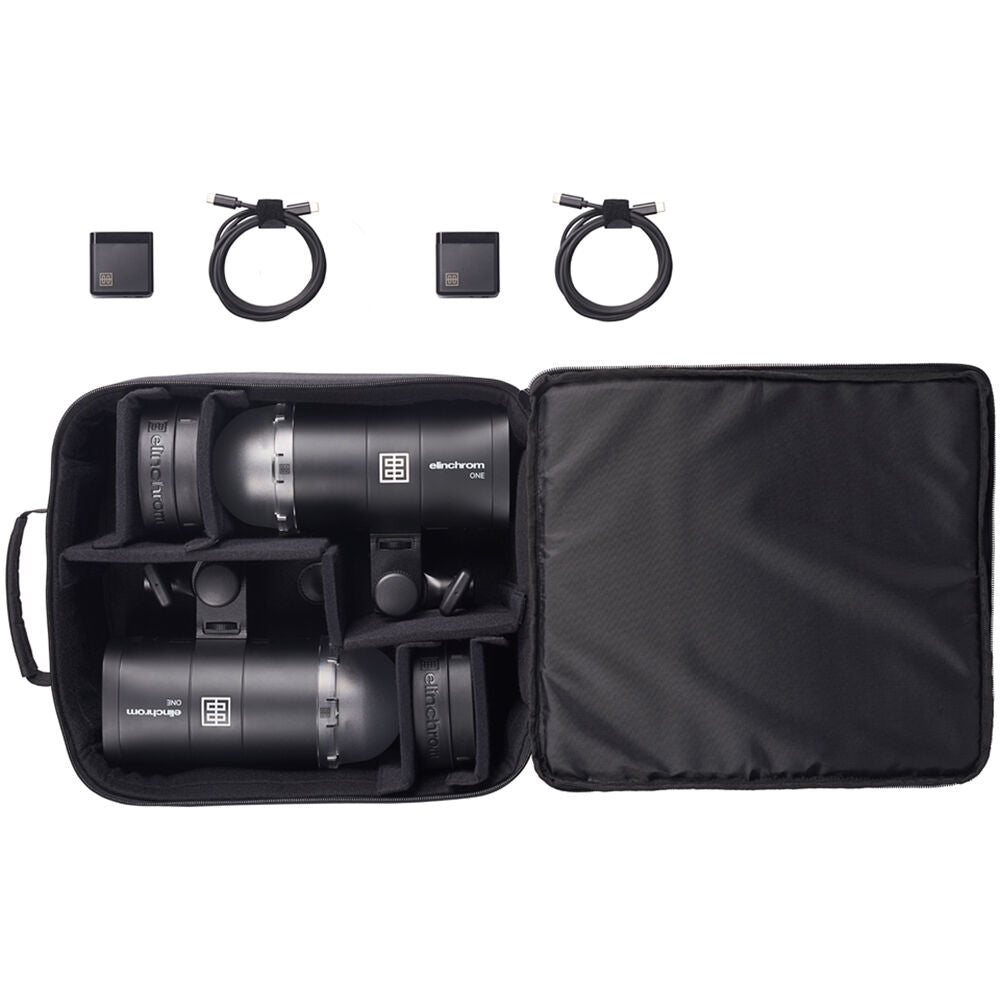

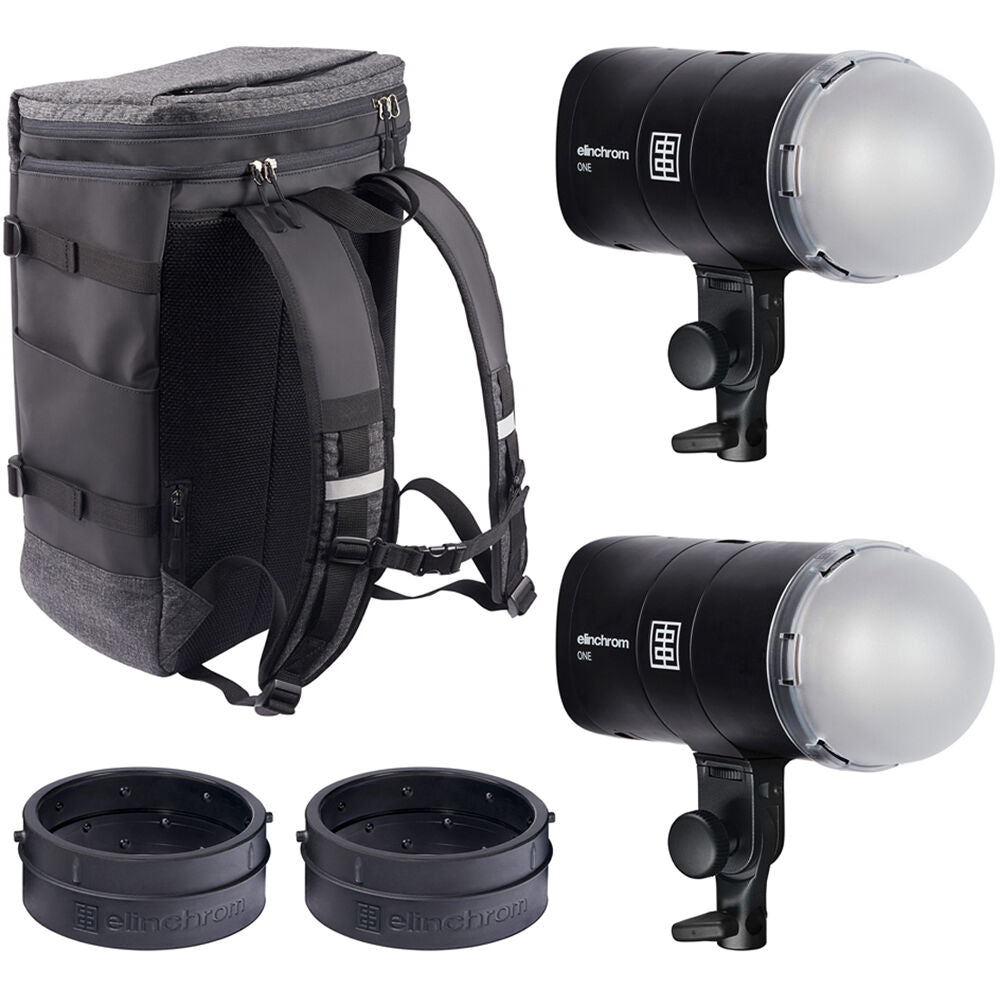

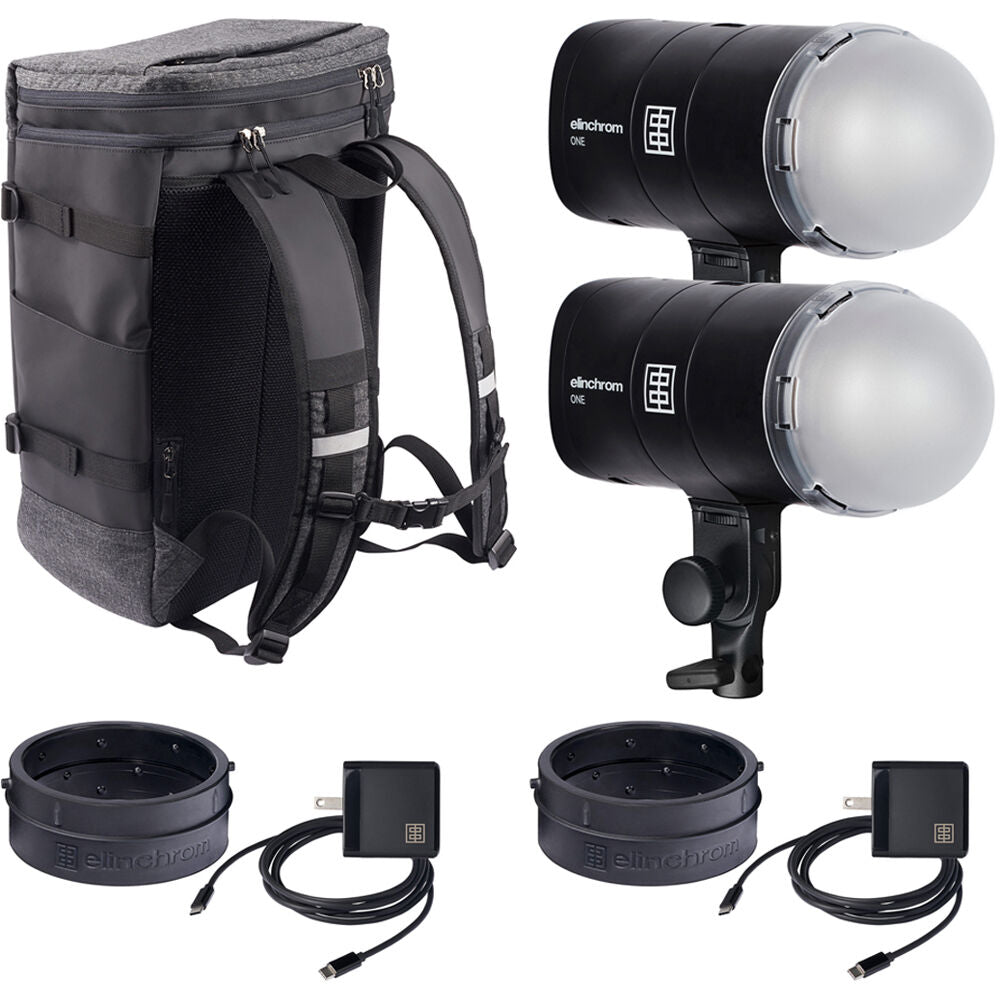

The impressive ONE Off Camera Flash Dual Kit from Elinchrom includes two ONE Off Camera Flash Heads, two OCF Adapters, two OCF Diffusion Domes, two 65W USB Type-C Wall Chargers, two 5.9' USB-C Cables, and an Elinchrom ONE 2-light backpack.
At only 3.3 lb, the compact, portable 131Ws Elinchrom ONE runs on an internal lithium-ion battery that offers 725 full-power flashes (free from an AC outlet) on a 100-minute charge, while thanks to Active Charging technology, you can keep shooting while the battery is topping up. Recycle time is a very quick 0.06 to 0.9 seconds, and the flash supports High Speed Sync times as short as 1/8000 second. Its LED modeling lamp is a 20W LED that can be set to Proportional, On/Off, or Full and with presets from 2700 to 6500K and a CRI of 95, it can actually be used to shoot video. Yet another feature is the built-in 20-channel receiver, that with purchase of a Skyport transmitter, can make adjustments at distances up to 656'. You can also control settings wirelessly via Bluetooth with a smartphone App.
Always be Ready
Always be ready when inspiration strikes with the compact and lightweight Elinchrom ONE. Weighing only 3.3 lb the ONE offers 131Ws of capacity with features including an integrated lithium-ion battery, USB Type-C Active Charging, TTL, HSS, and a streamlined touch interface into a low-profile housing. A portable, rugged and dependable off-camera flash equipped for your shoot, wherever that may be
Keep a Low Profile
Add the versatility of an off-camera flash with light shaping capabilities to any kit while maintaining a minimal footprint with the Elinchrom ONE similar in size to a 70-200mm lens, the ONE is ready to travel
And Brave the Elements
The Elinchrom ONE utilizes an internal lithium-ion battery for maximum portability and enhanced protection from the elements while on location. Plus, you are not tied to proprietary spare batteries or chargers with the ability to charge from any USB Type-C source
Never Losing Momentum
Capable of producing 725 full-power flashes on a single charge, the Elinchrom ONE is ready for longer shoots. Additionally, with Active Charging, the ONE can be connected to a power source and continue shooting while charging regardless of the battery's power level, keeping your workflow uninterrupted
Shape Your Story
Shaping light is at the heart of every great photo you create with the Elinchrom ONE. That's why it utilizes an unconcealed flash tube for optimal light spread, ensuring you experience the light quality Elinchrom is known for
With Your Choice of Light Modifiers
Utilizing the newly developed Elinchrom OCF modifier mount, the Elinchrom ONE is also natively compatible with Profoto OCF light shapers, greatly expanding your selection of available light shaping tools. The included Elinchrom OCF Adapter enables quick mounting to speed rings and reflectors utilizing a traditional Elinchrom bayonet
Doing More with Less
Engineered for peak efficiency, the Elinchrom ONE utilizes its 131Ws of power to generate a light output usually seen in 200Ws+ units. At 3.3' and 100 ISO, the ONE can achieve f/11.9-with the Diffusion Dome attached, and when combined with the HP Reflector 10.2", the achievable f-stop climbs to f/45.2.
Always Navigating Swiftly
With a touchscreen interface and a newly designed menu structure, Elinchrom has streamlined the process of adjusting the ONE's settings to ensure you never miss a chance to capture a moment
In the Box
- Elinchrom ONE Off Camera Flash Dual Kit
- 2 x Elinchrom OCF Diffusion Dome
- 2 x Elinchrom OCF Adapter
- 2 x Elinchrom 65W USB Type-C Wall Charger with USB Type-C Cable (5.9')
- Elinchrom Backpack for ONE Flash Heads and Accessories
- Limited 2-Year Warranty
Table of Contents
- Description
- Always be Ready
- Keep a Low Profile
- And Brave the Elements
- Never Losing Momentum
- Shape Your Story
- With Your Choice of Light Modifiers
- Doing More with Less
- Always Navigating Swiftly
Elinchrom ONE Specs
Flash Head
| Maximum Power |
131 Ws |
| Power Control |
5 Stops in 1/10-Stop Increments |
| Flash Duration |
t.1: 1/153 to 1/8000 Sec (Full Power) |
| Recycle Time |
0.06 to 0.9 Sec |
| Color Temperature |
5700K |
| Flash Ready Indicator |
Visual |
| Accessory Fitting Type |
Elinchrom Umbrella Shaft |
Modeling Light
| Type |
LED |
| Wattage |
20 W |
| Control Modes |
Full On, Off, Proportional |
Sync
| Sync Type |
Cable, Optical, Radio |
| Built-In Wireless Receiver |
Yes |
| Sync Speed |
1/8000 Sec (High-Speed) |
| Wireless Frequency Bands |
2.4 GHz |
| Wireless Range |
656' / 199.9 m (Radio) |
| Interface |
USB Type-C |
Power
| Power Source |
AC Adapter, Integrated Battery |
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz |
| Current |
5 A (Operating) |
Battery
| Battery Chemistry |
Lithium-Ion |
| Maximum Output Voltage |
16.8 VDC |
| Capacity (mAh) |
3000 mAh |
| Battery Capacity |
3000 mAh |
| Flashes Per Charge |
725 Flashes (Full Power) |
| Recharge Time |
100 Minutes |
General
| Display |
LCD |
| Mount |
5/8" / 16 mm Receptacle |
| Auto Dump |
Yes |
| Fan Cooled |
Yes |
| Operating Temperature |
-4 to 95°F / -20 to 35°C |
| Dimensions |
H: 8.9 x W: 3.9 x L: 6.5" / H: 22.5 x W: 10.0 x L: 16.5 cm |
| Weight |
3.3 lb / 1.5 kg, Including Battery, Flash Tube, Modeling Lamp, Yoke |
Packaging Info
| Package Weight |
13.3 lb |
| Box Dimensions (LxWxH) |
20 x 13.8 x 10" |
