500Ws, 7-Stop Power RangeTTL and Manual ExposureRecycling: 0.09 to 1.9 sec @ 115 VAC7-Stop Power Range, 100-240 VAC, 50/60HzThe New Elinchrom ELC 125 / ELC 500 Elinchrom ELC 125/500: Getting out of your artistic comfort zone

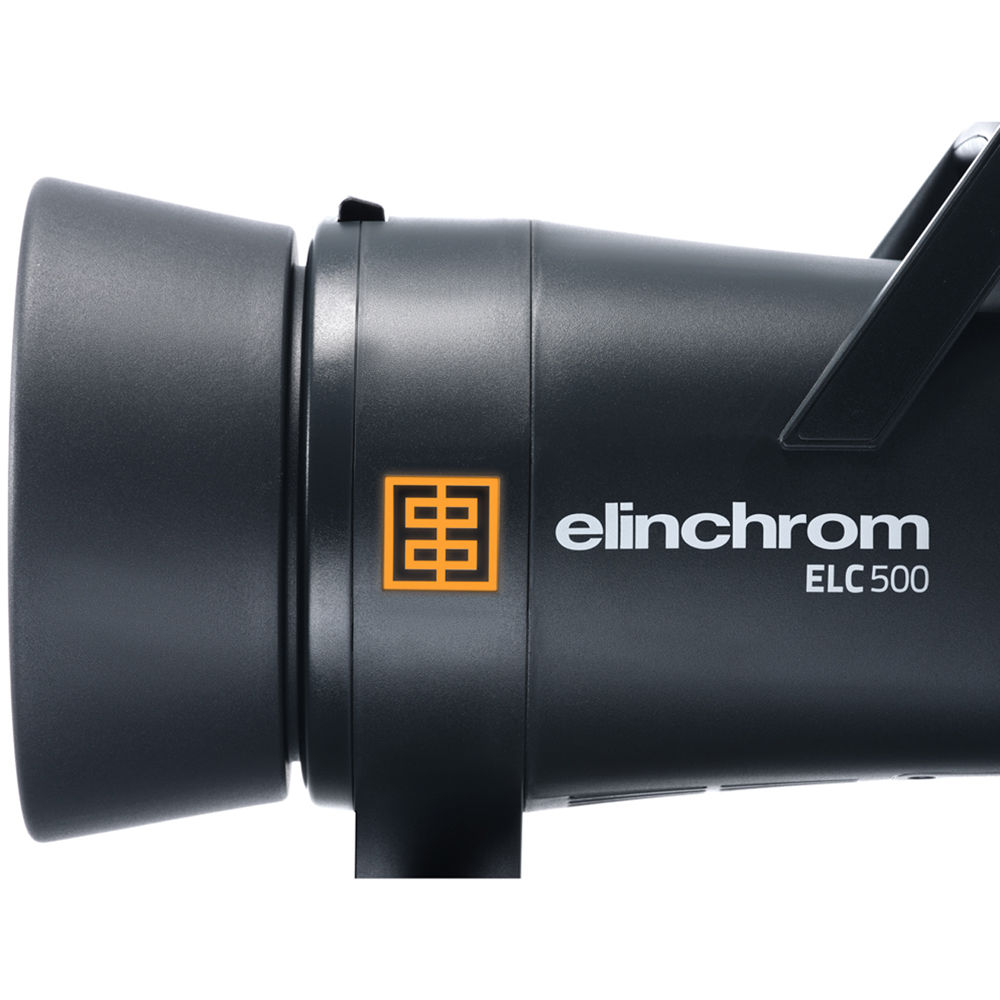

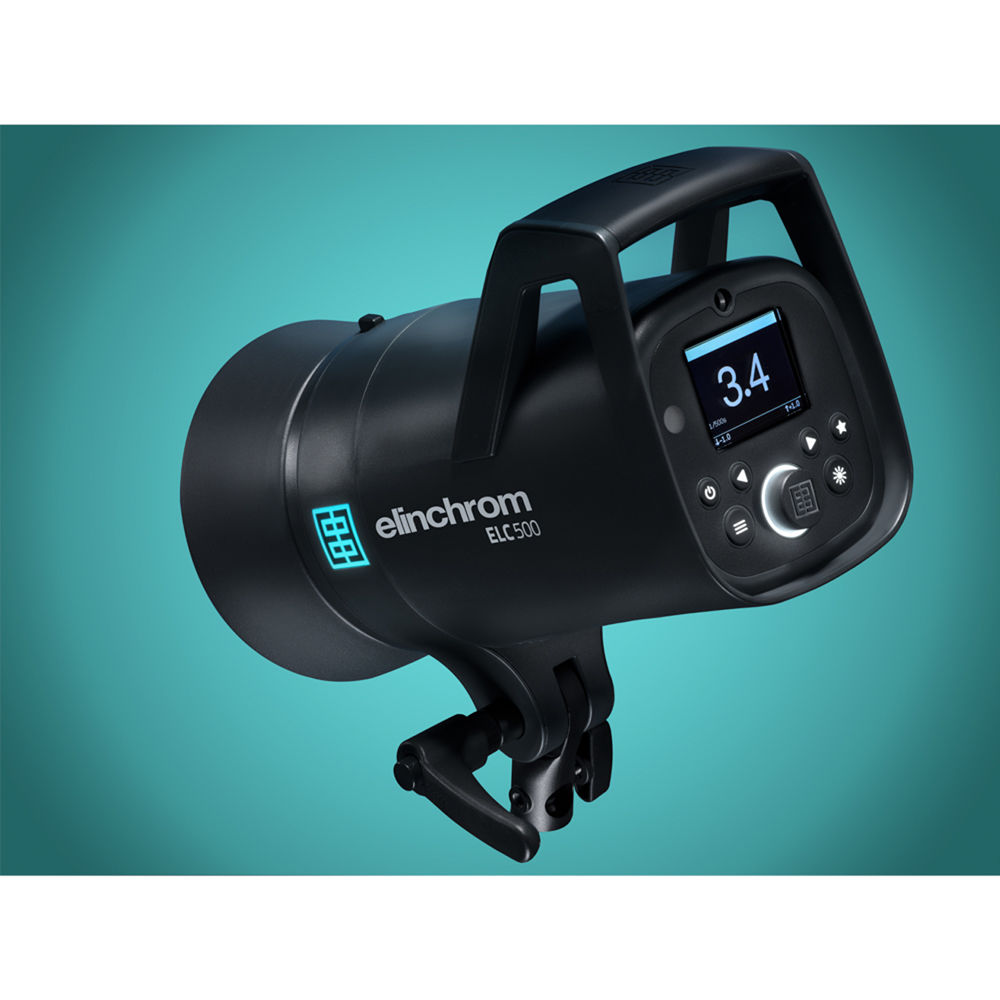

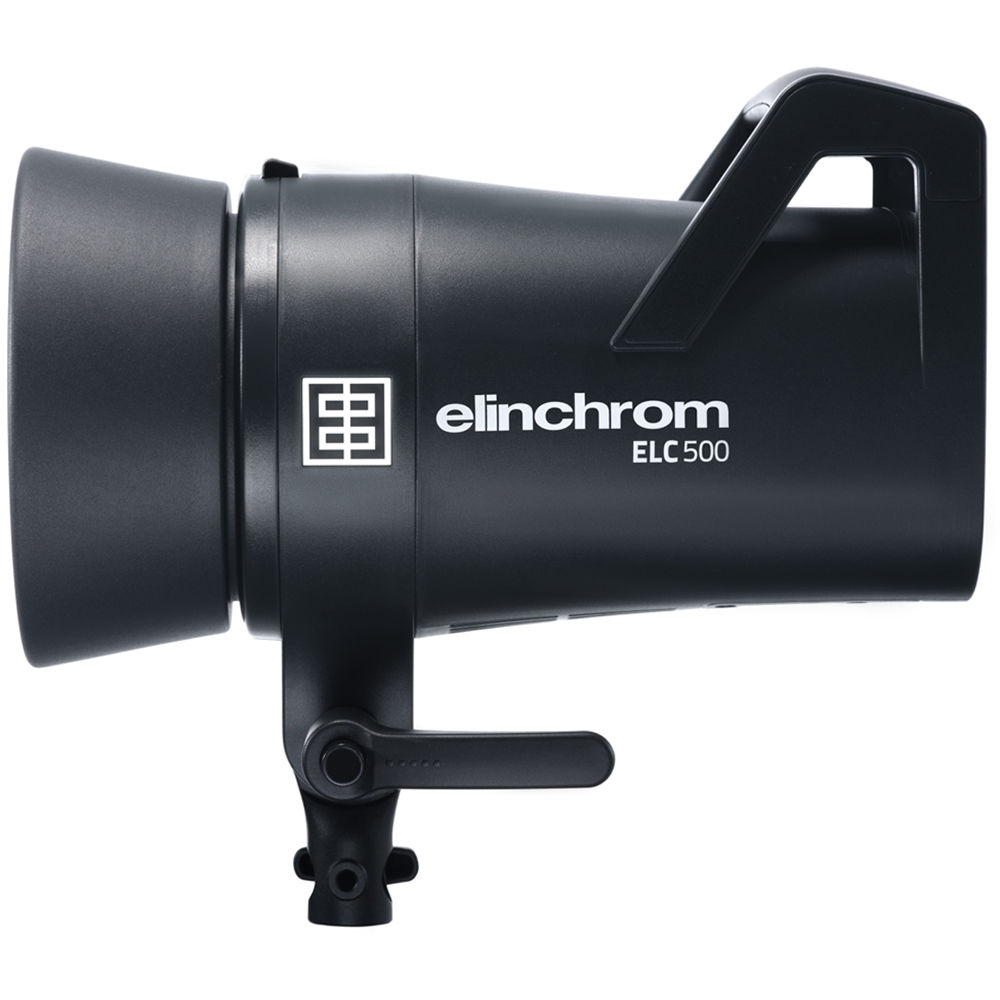

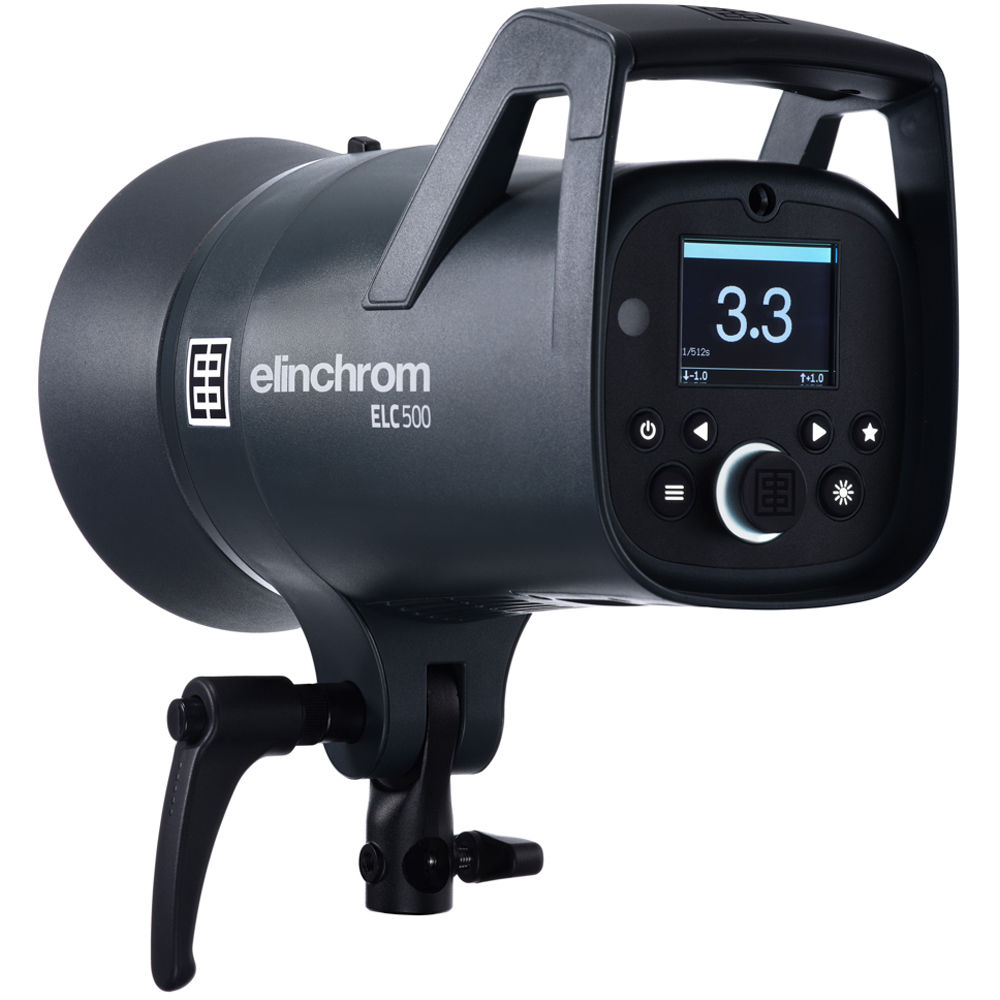

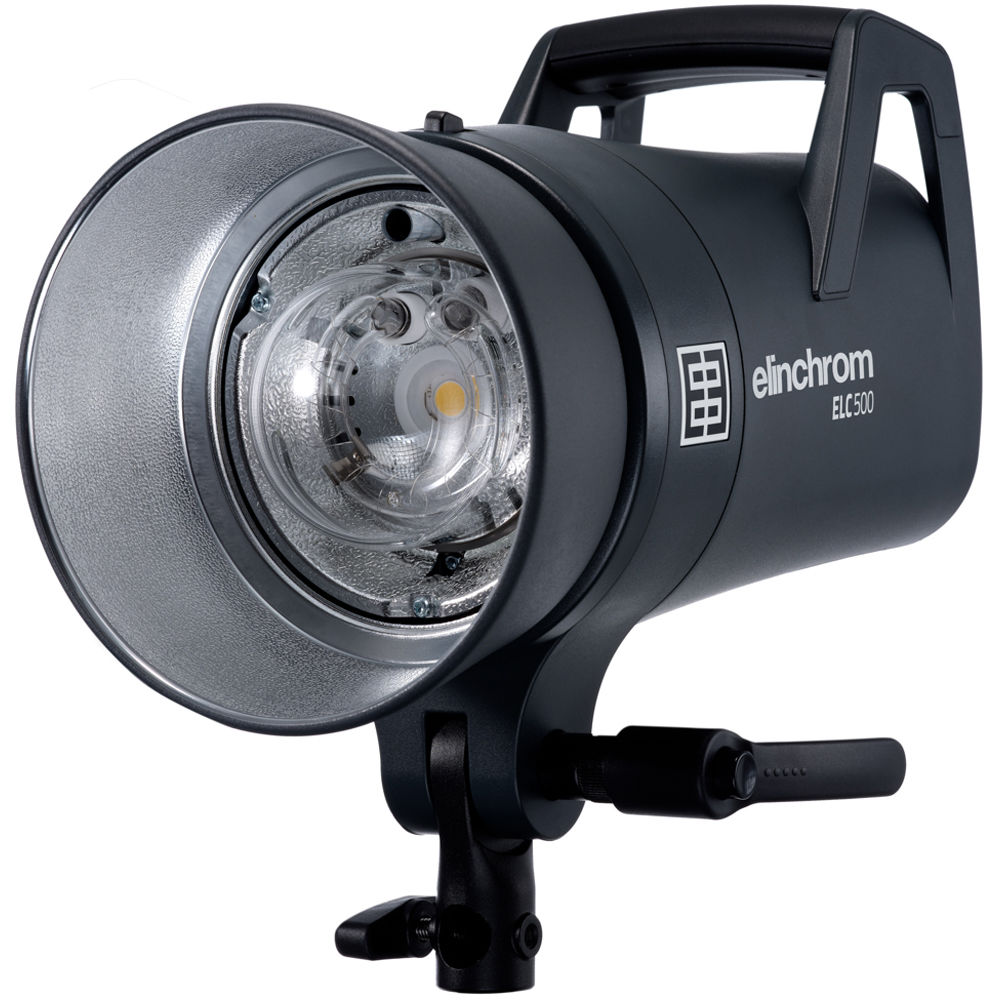

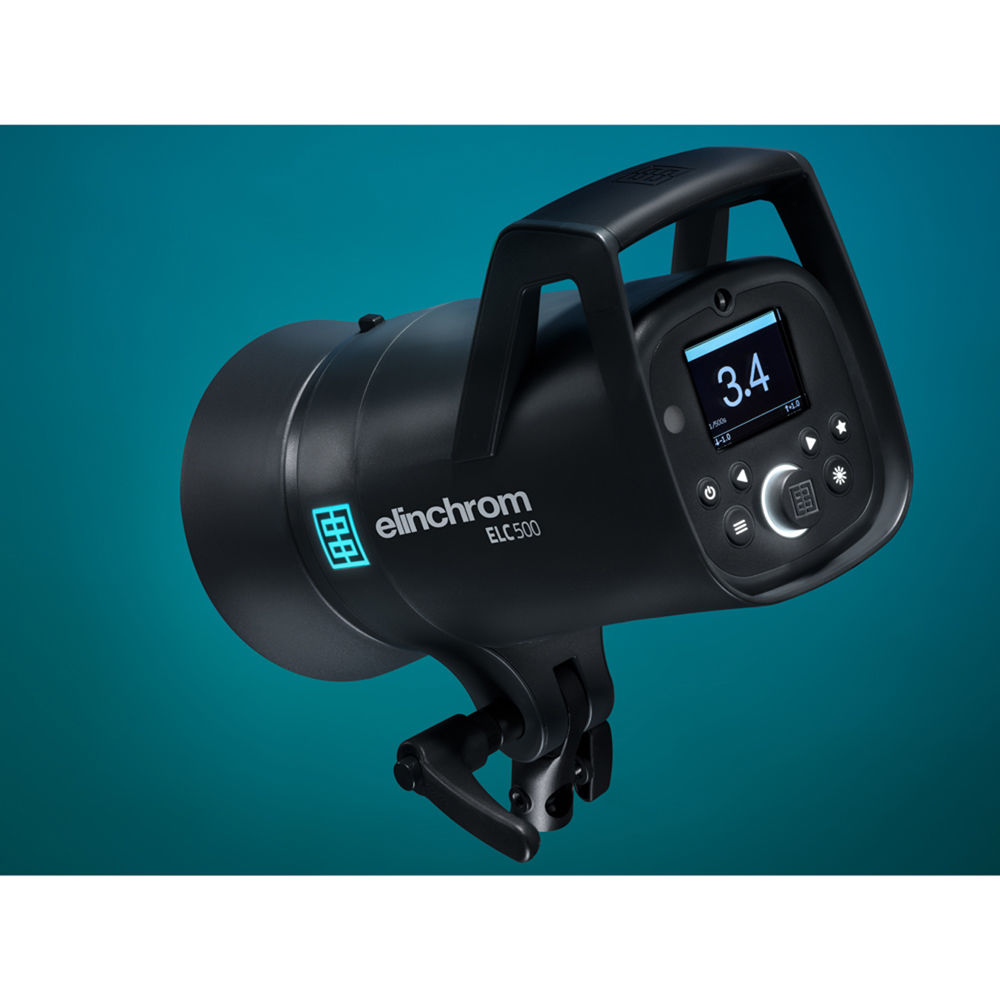

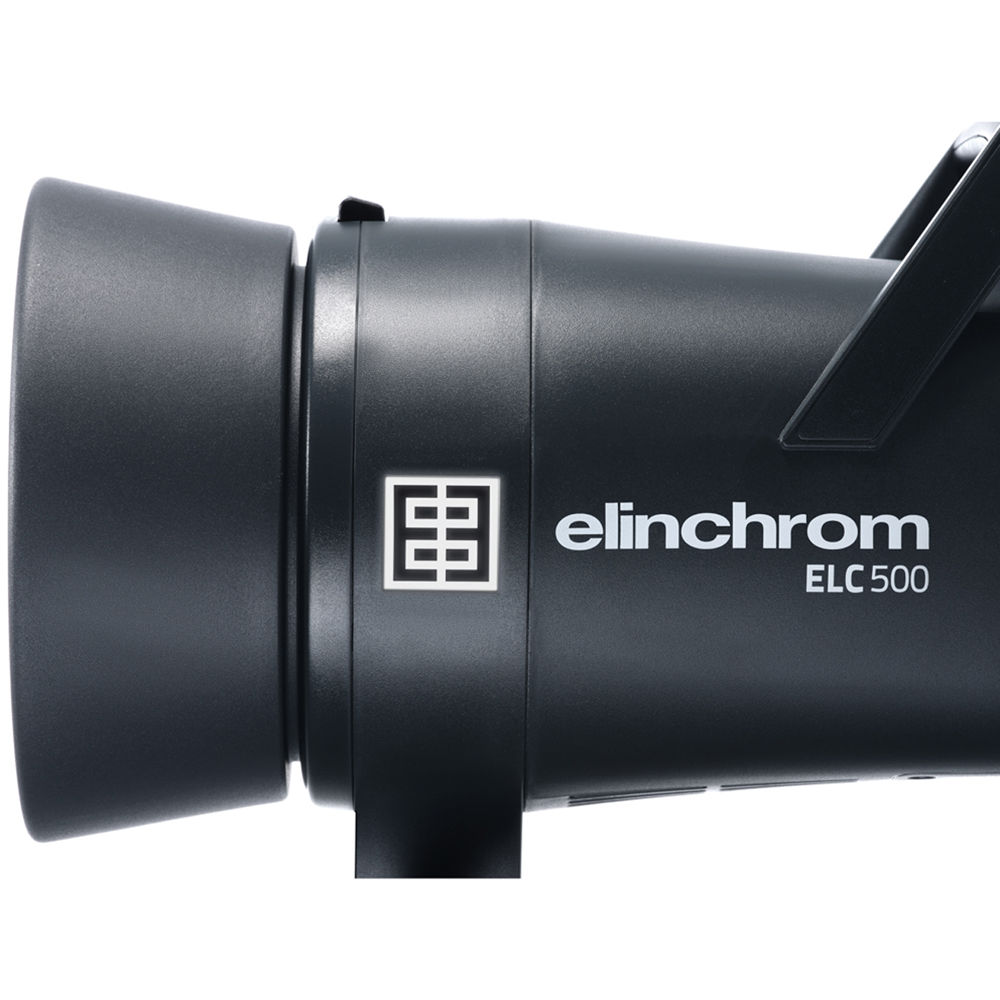

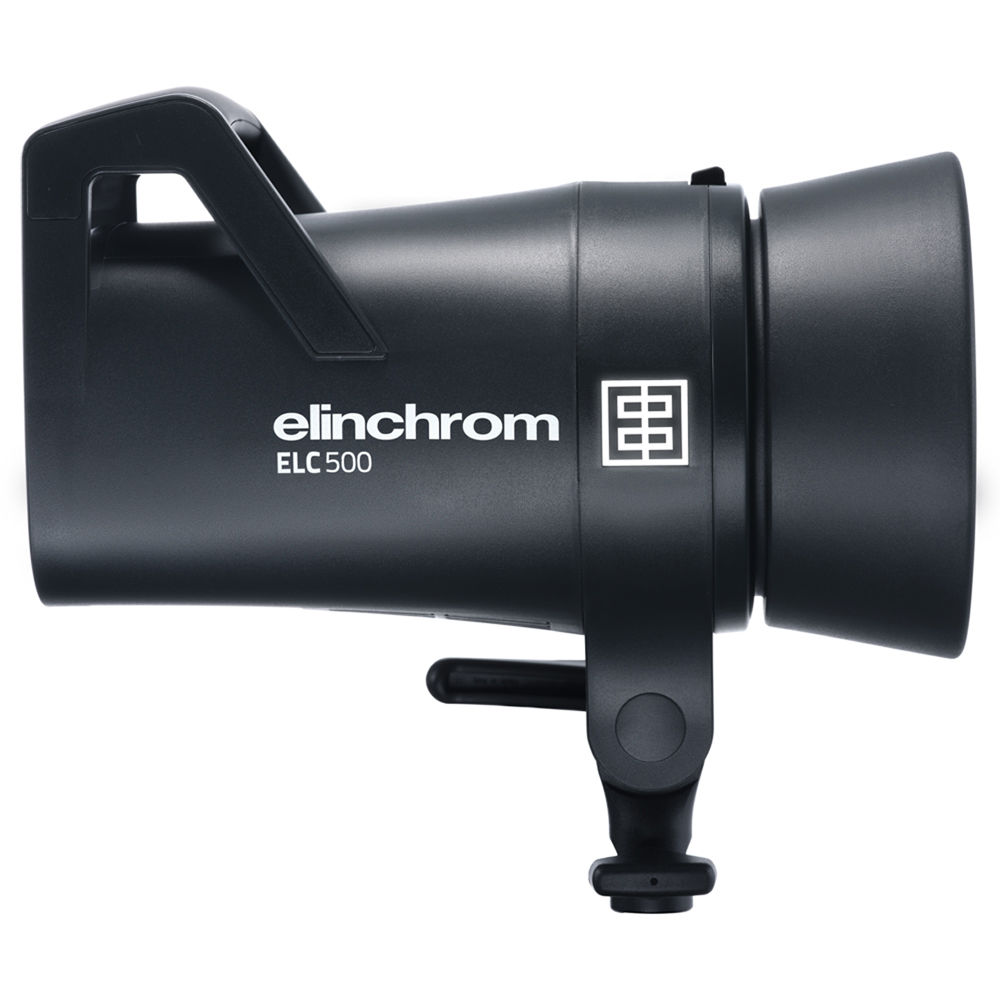

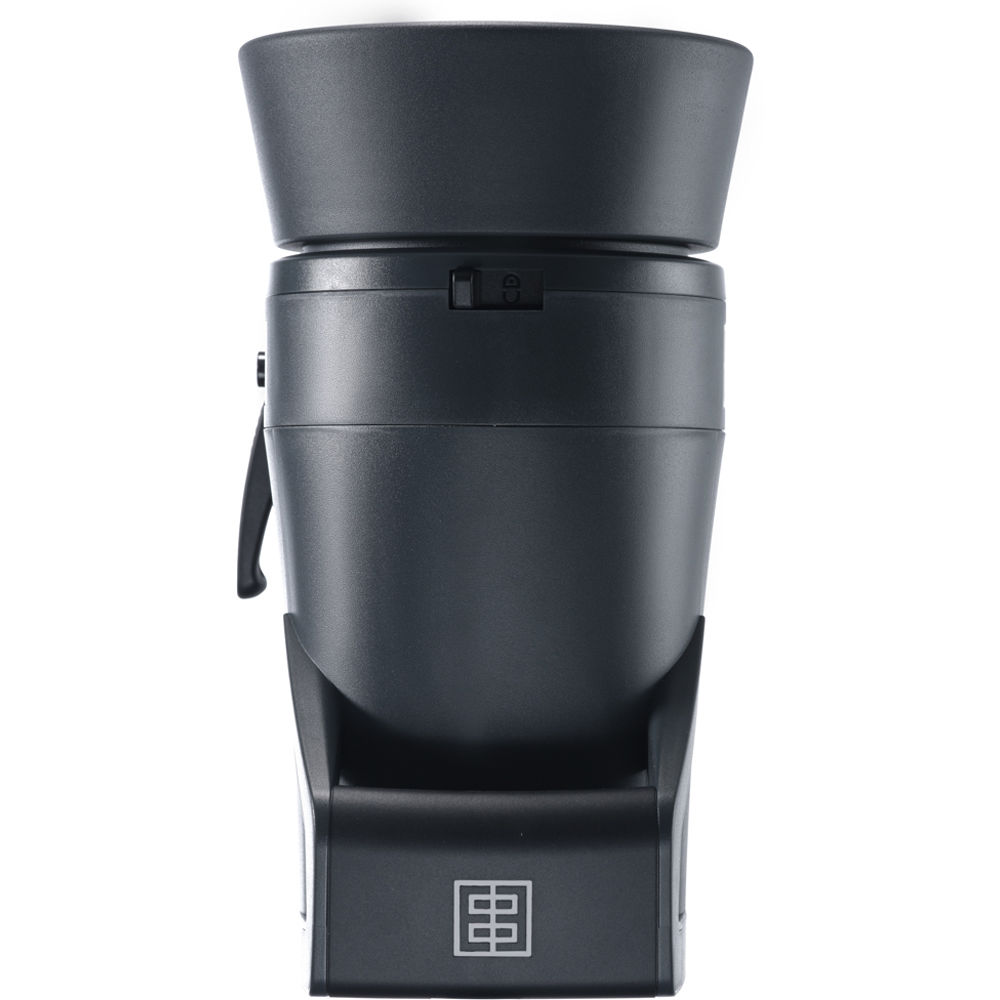

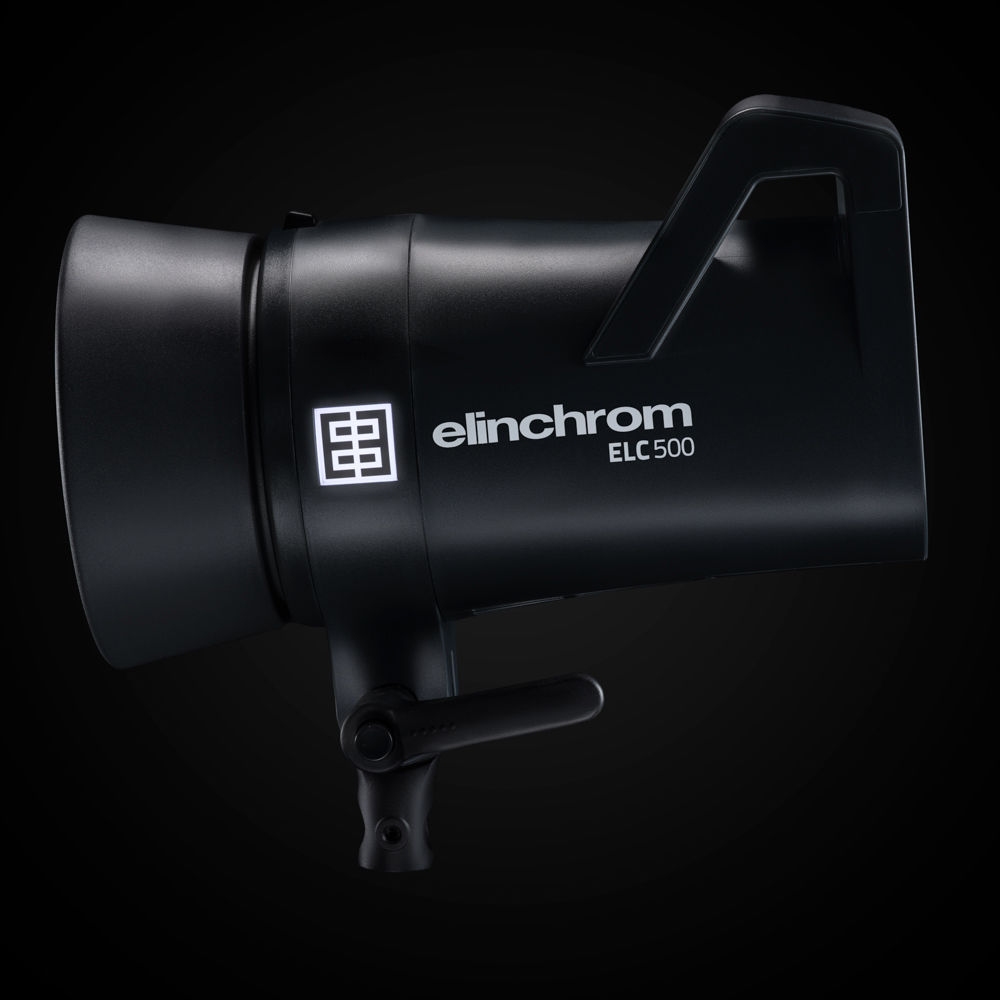

The 500Ws ELC 500 Studio Monolight from Elinchrom is yet another step forward in the evolution of its monolight design. Besides the impressive features we've come to expect from this brand, the ELC 500 added quite a bit more. Short recycling times of 0.09 to 1.9 seconds coupled with flash durations as short as 1/9430 sec. make freeze-motion, stop-action shooting possible. In fact, very high fps rates are possible at minimum power, as well as High-Speed Sync that allows bright background regulation with shutter speeds of a lightning-fast 1/8000 second. An intelligent low noise, temperature-activated fan keeps the head cool and lengthens the life of the flash tube.

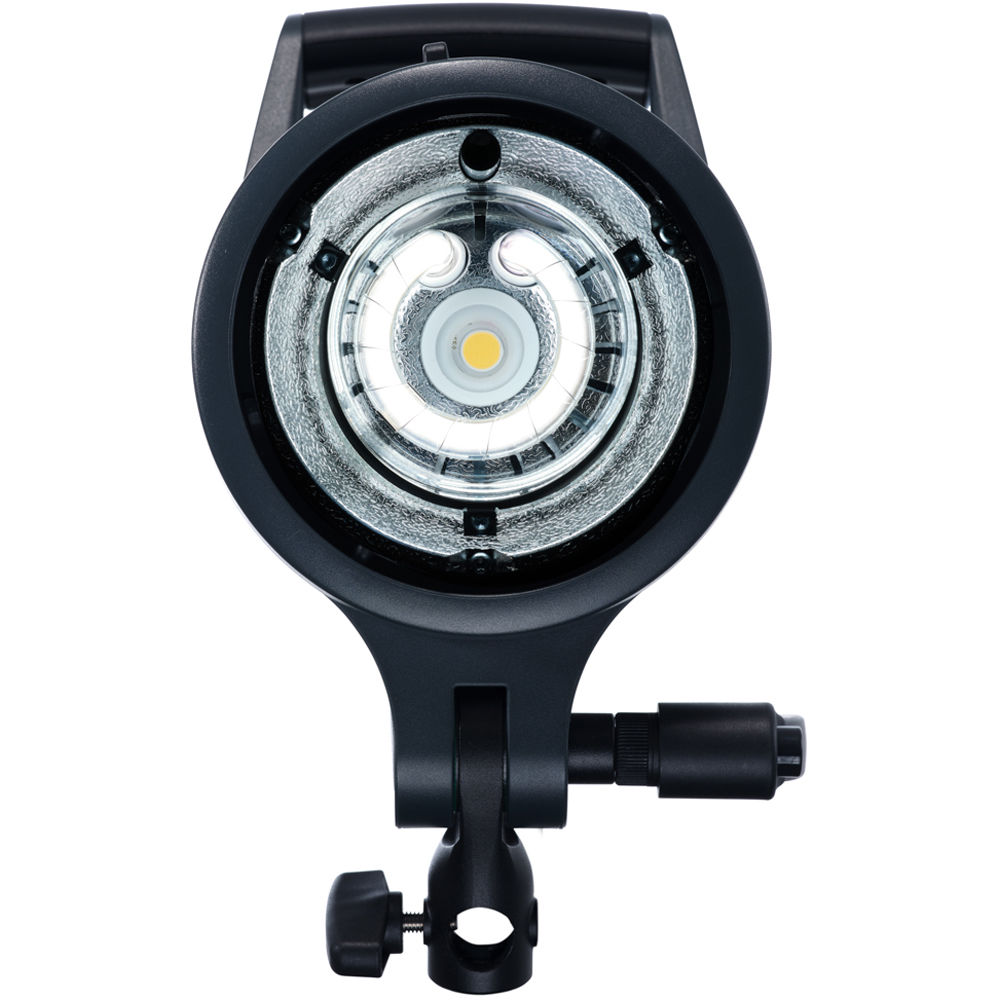

Power, variable continuously over 7 stops from 7 to 500Ws, can be mimicked by the 20W (120W incandescent equivalent) proportional LED modeling lamp to preview your effects. Although triggering with a sync cord is possible, the ELC 500 has a built-in 20-channel receiver that not only allows you to make wireless adjustments to power, the modeling light, and more at distances up to 656', but will allow TTL control of the light by seven compatible, major camera brands with separate purchase of an EL Skyport transmitter.
Yet another sign of versatility is the ELC 500's 100 to 240V power supply that allows you to use it anywhere in the world. The flash head is also of course, compatible Elinchrom's world-renowned, expansive array of light modifiers.

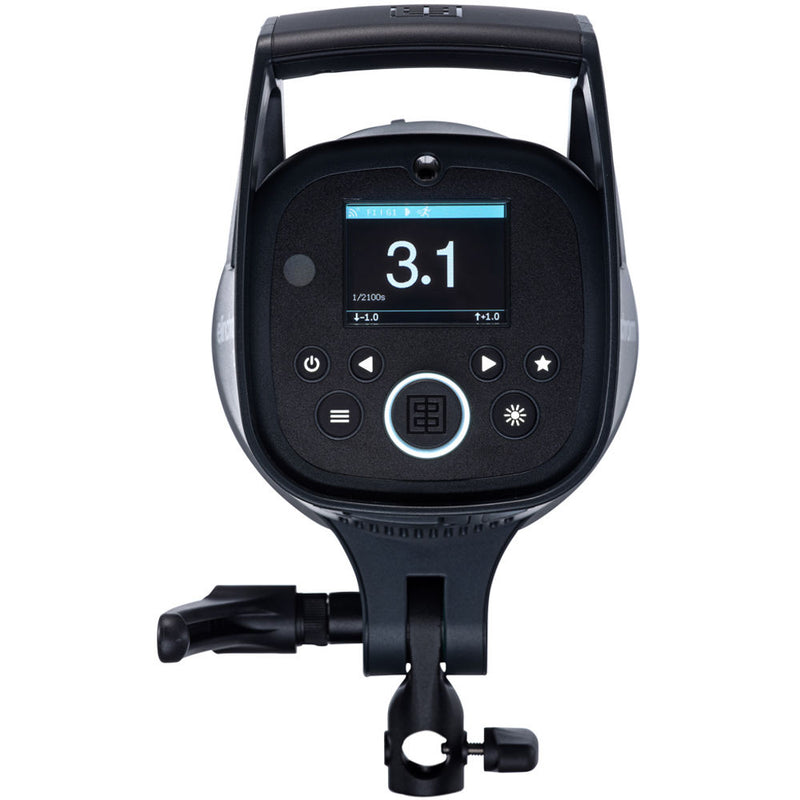

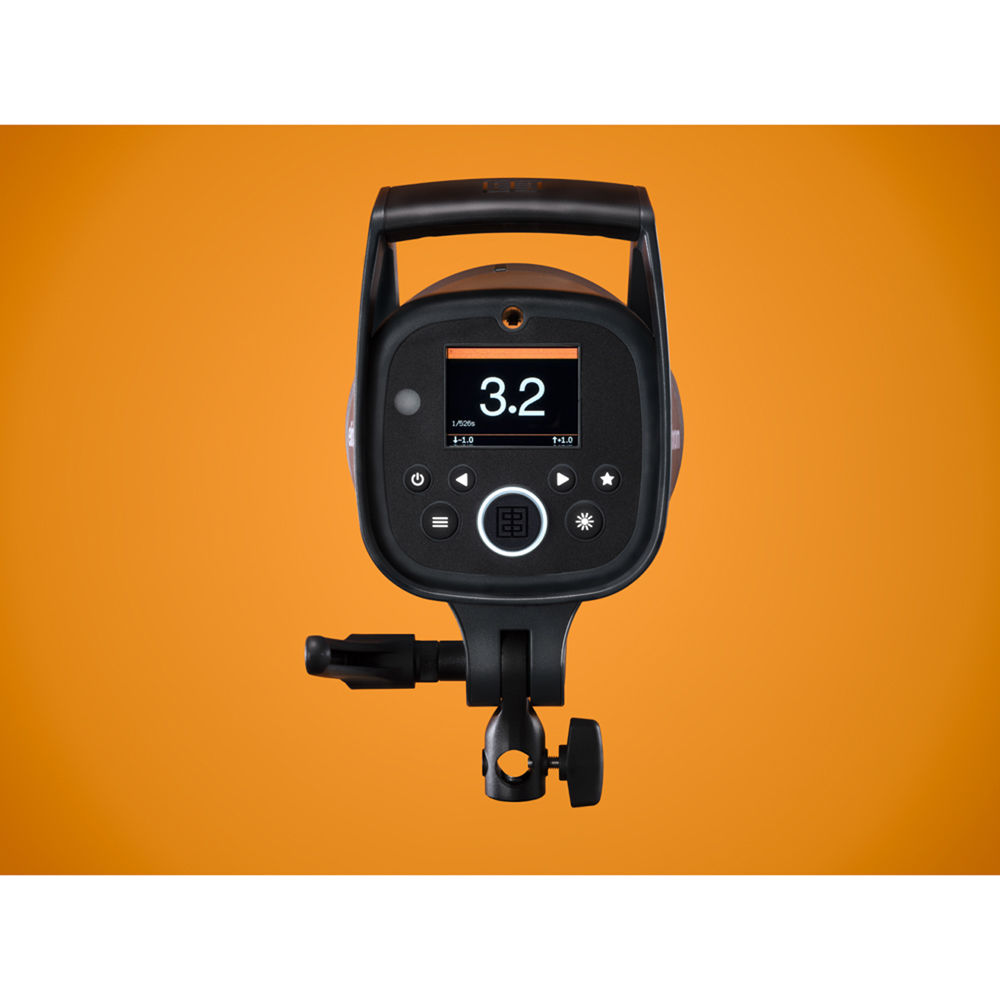

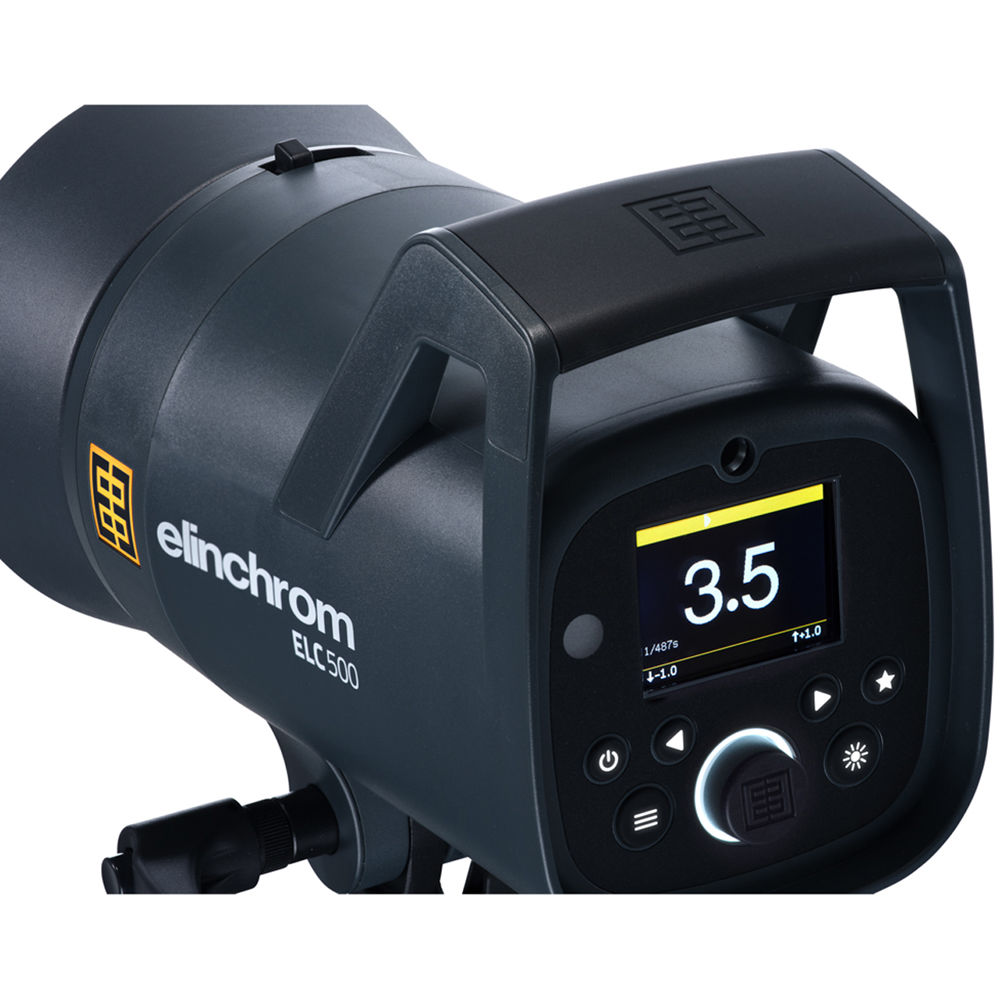

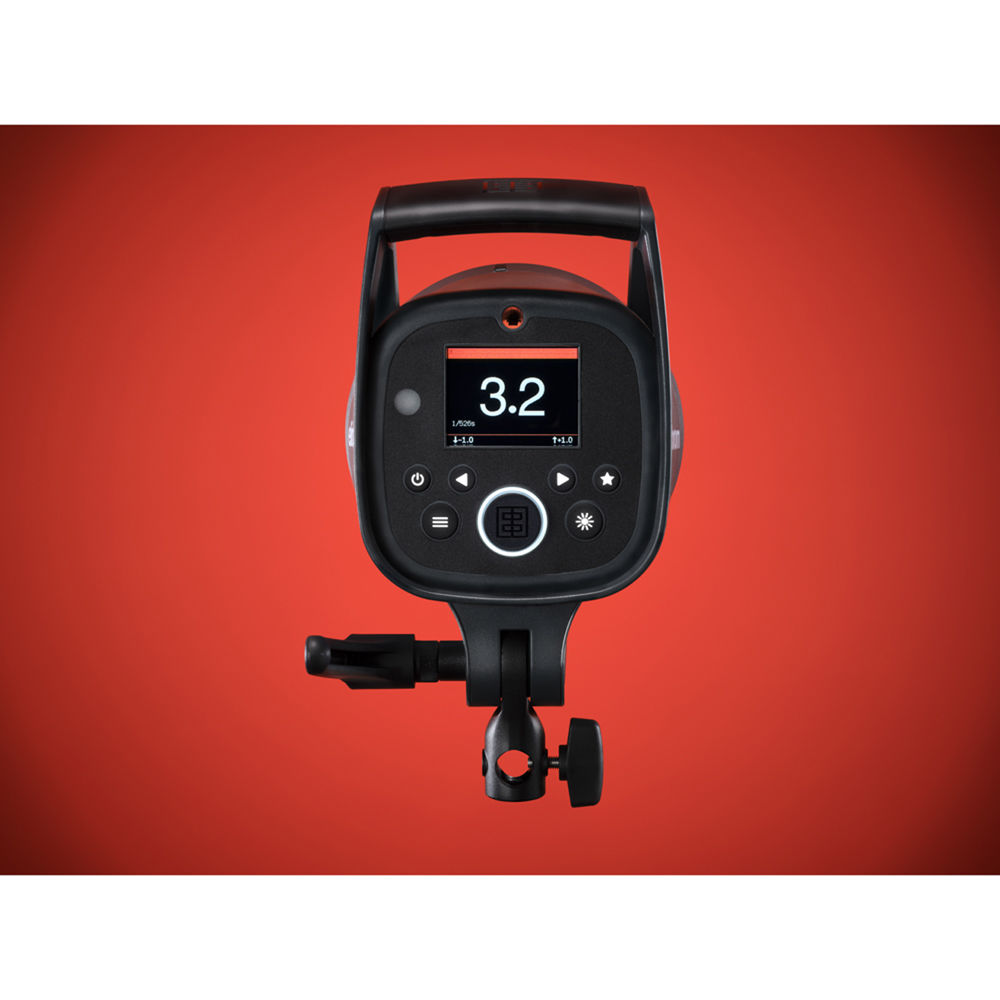

TTL, Manual Lock, Auto-On The ELCs are ready to go the moment inspiration strikes you. With Auto-On, the unit is always in standby mode with your previous settings saved, and the onboard TTL speeds up dialing in your next exposure. The Manual Lock function enables a quick switch from TTL to Manual without losing exposure settings for quick adjustments or to explore creative effects. Wireless Freedom Never miss a shot with Elinchrom's Skyport radio-frequency system compatible with 7 camera brands. You also get intuitive control of flash settings from your camera and your computer. Even non-Elinchrom units and speedlights can be integrated into the wireless setup via the Elinchrom Skyport Receiver Plus. Engineered to Last Every aspect of the ELC 500 has been designed and rigorously tested to deliver maximum reliability and extended lifetime. Elinchrom created the ELCs to last through your next adventure. Stay Cool Under Pressure With Elinchrom's Smart Pro-Active Cooling, the ELC's learn your shooting style and adapt their cooling cycles around it, never interrupting your creative flow. Plus, their cleverly engineered airflow design and low-noise speed-controlled fan can handle the heaviest of workloads. Explore More As important as a solid studio strobe is, the light modifier is where the real magic happens. The bayonet Quick-Lock system grants you direct access to Elinchrom's world-renown light modifiers. Combined with the ELC's bright, daylight-balanced LED modeling lamp to aid your pre-visualization. Expansive Flexibility Your equipment should never limit you. Whether you are experimenting in your living room or working in a large studio, the ELC 500 can acclimate. ELCs can be powered down to 7Ws so that you can reach your desired depth of field or add only a hint of light. Plus, with HSS, you can freeze motion, overpower ambient light, and darken backgrounds. Edit Less, Deliver Faster Elinchrom's precise color science and accuracy over the whole power range enables you to deliver professional and consistent results to your clients with less wasted time and money in post-production.
| Maximum Power | 7 to 500 Ws |
| Power Control | 7 Stops in 1/10-Stop Increments |
| Guide Number | 296.59' / 90.4 m at |
| Flash Duration | t.5: 1/9430 Sec |
| Recycle Time | 0.09 to 1.9 Sec (Full Power) |
| Color Temperature | 5600K |
| Flash Ready Indicator | Audio, Visual |

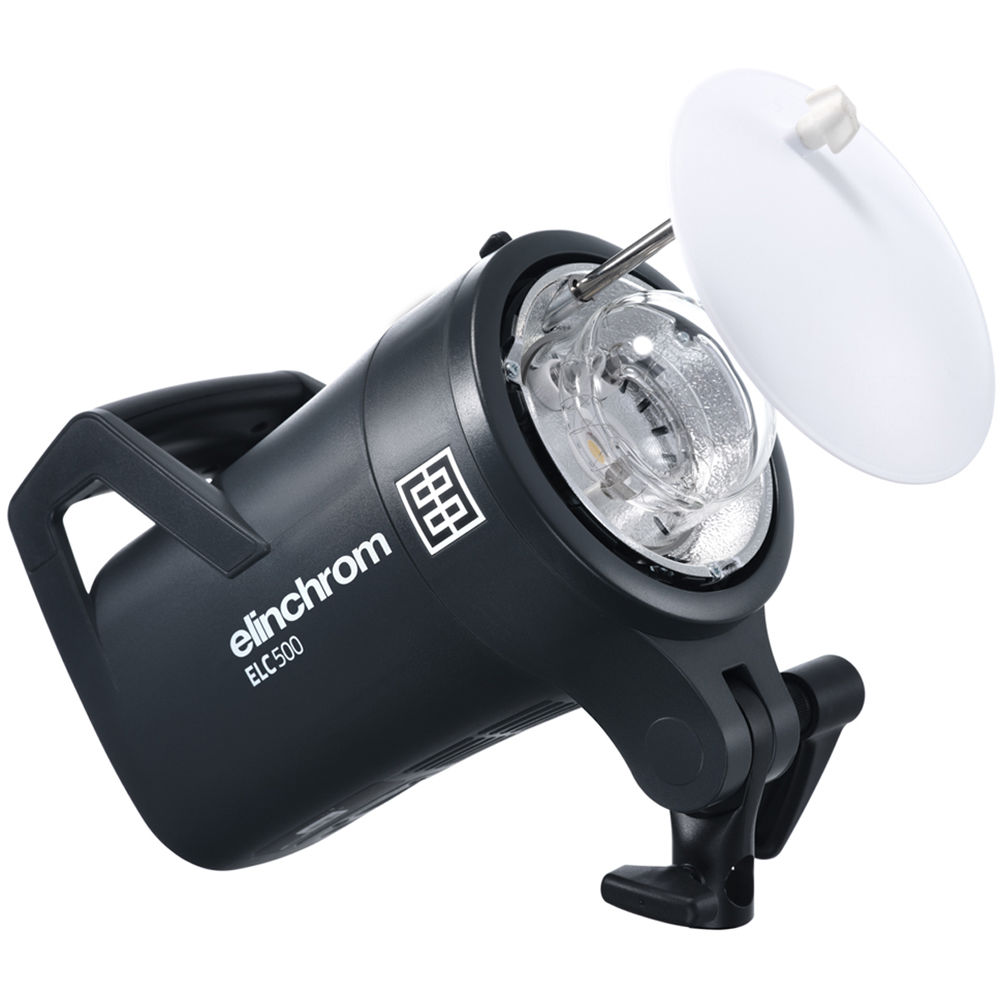

| Reflector | 6.3" / 16.00 cm Changeable |
| Accessory Fitting Type | Elinchrom Umbrella Shaft |
| Type | LED |
| Wattage | 20 W |
| Control Modes | Free Set, Full On, Proportional |
| Sync Type | Cable, Optical, Radio |
| Sync Speed | 1/8000 Sec (High-Speed) |
| Wireless Frequency Bands | 2.4 GHz |
| Wireless Range | 656.2' / 200 m (Radio) |
| Interface | 3.5 mm PC Sync |
| Sync Voltage | 5 V |
| AC Input Voltage | 100 to 240 VAC, 50 / 60 Hz |
| Circuit Protection | Fuse |
| Display | OLED |
| Mount | 5/8" / 16 mm Receptacle |
| Auto Dump | Yes |
| Fan Cooled | Yes |
| Dimensions | H: 10.4 x W: 6.6 x L: 11.0" / H: 264.2 x W: 167.6 x L: 279.4 mm |
| Weight | 5.5 lb / 2.49 kg |
| Package Weight | 8.49 lb |
| Box Dimensions (LxWxH) | 12.7 x 11.4 x 8.2" |
In the Box
- Elinchrom ELC 500 TTL Studio Monolight

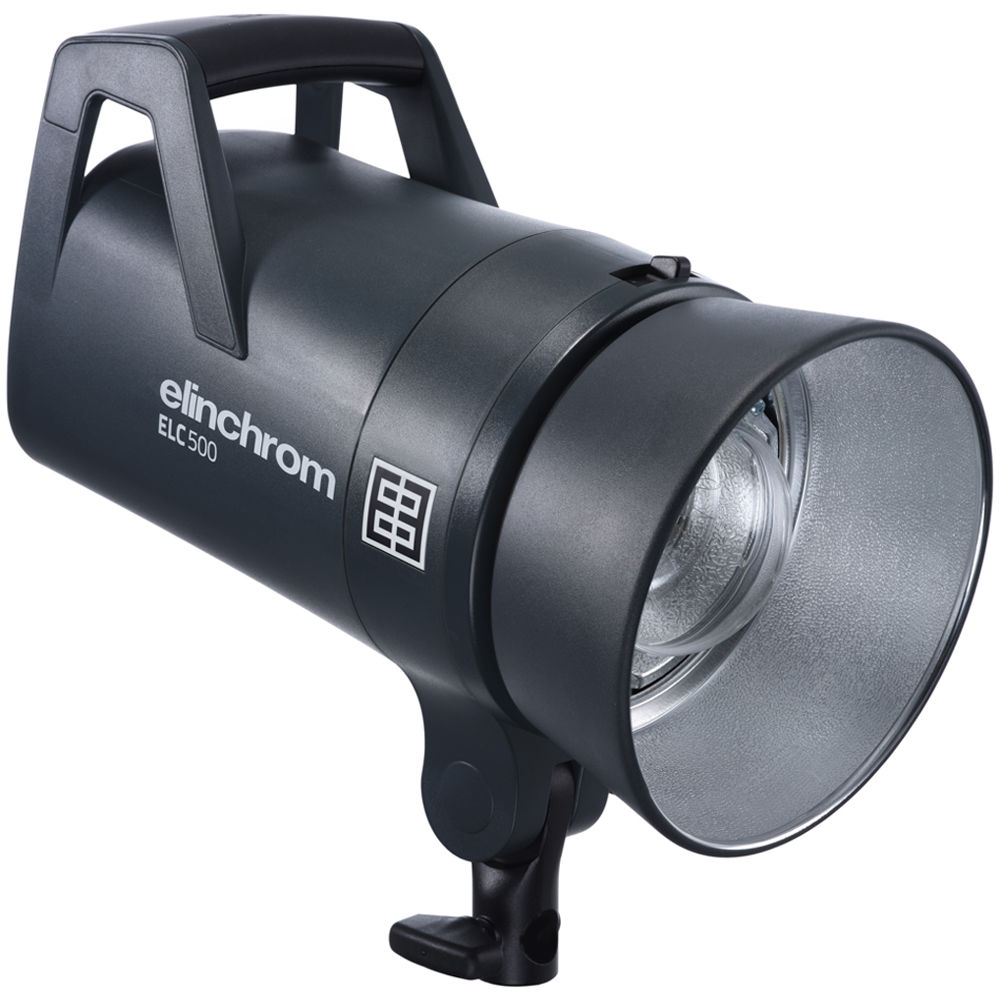

- 90° Wide Angle Umbrella Reflector 6.3" (16cm)
- Limited 2-Year Warranty
