Description
Eliminator Lighting MDF3 Overview

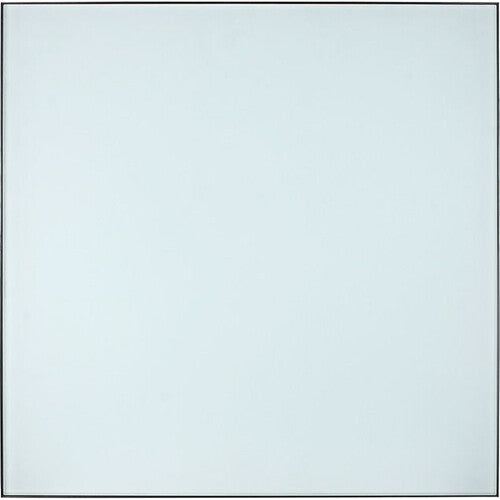

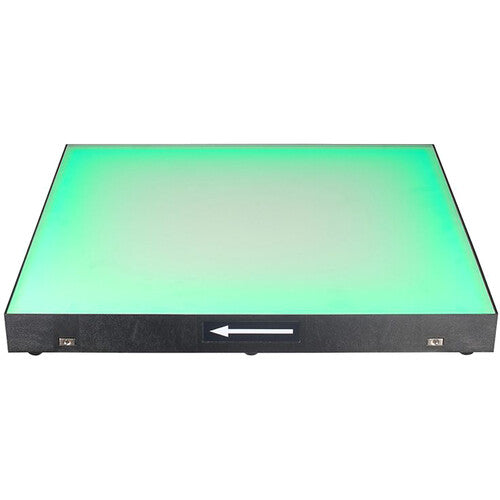

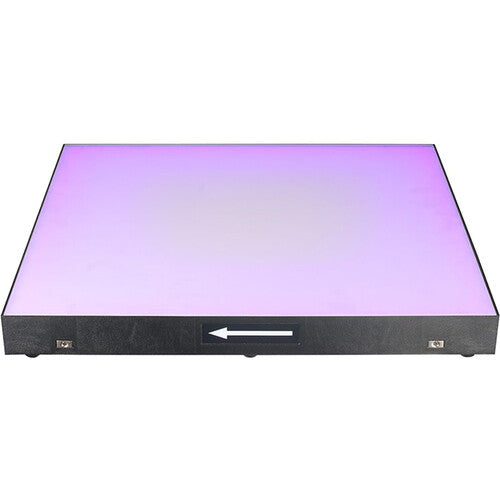

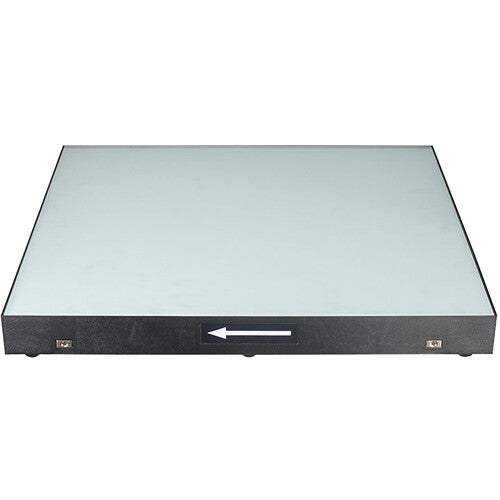

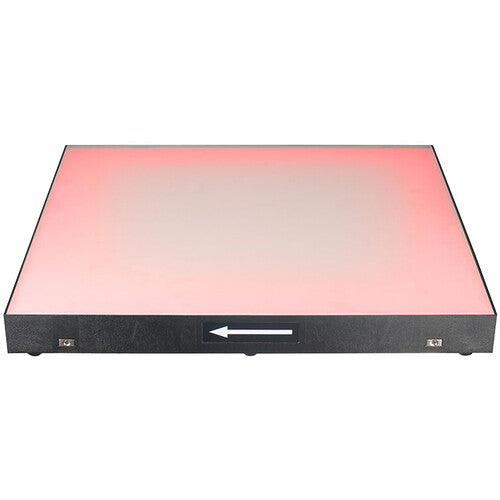

Level up your next party or event with the Eliminator Lighting MDF3, a single, robust, lightweight, and modular LED dance floor panel illuminated by an array of RGB color mixing LEDs. The 23.6 x 23.6" floor panel is made from an opaque tempered glass with an upgraded housing and features an improved power and data connection system that uses gold-plated copper strips and springs underneath the panel to ensure a reliable connection between adjacent units.

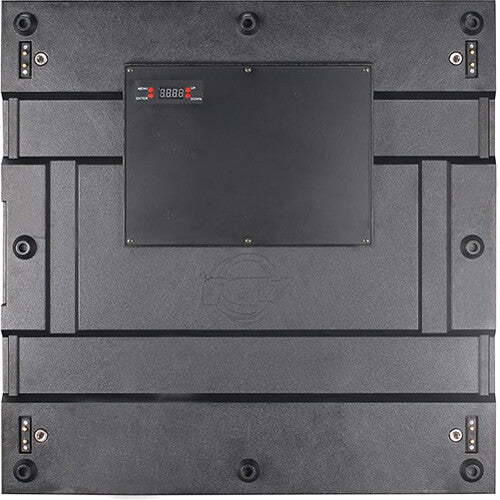

Other enhancements include a convenient service panel and an upgraded PCB with added RDM support to allow remote fixture addressing as well as an onboard battery to allow DMX addressing and mode selection to be carried out in advance of an event without power connected to the panels. A variety of power supply options are available, with the smallest capable of driving a compact configuration of 9 panels and the largest capable of supporting a huge floor of up to 156 panels as well as edge and corner ramps to allow the panels to be deployed safely for parties and events.
- Light source: RGB 3-in-1 LED
- Input signal: DMX512 (3-pin XLR)
- Control mode: DMX512 console, SD controller (with DMX, sound control, audio control, and remote control)
- DMX channel mode: 3, 5, 7, and 10 channel mode
- Visual angle: 160°
- Brightness: high brightness
- Surface material: tempered glass
- Base material: ABS
- Bearing weight: 61.5 lb
Items Included
- Eliminator Lighting MDF3 Modular RGB LED Dance Floor Panel with Color Mixing (Single)
- Limited 1-Year Manufacturer Warranty
Additional Resources
Eliminator Lighting MDF3 Specs
| Fixture Type |
LED Panel / Special Design
|
| Light Source |
1x Color LED
|
| Colors |
Blue, Green, Red
|
| Beam Angle |
160°
|
| Control Protocols |
DMX512
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Mounting |
Floor Base
|
| Fixture Type |
LED Panel / Special Design
|
| Light Source |
1x Color LED
|
| Colors |
Blue, Green, Red
|
| Beam Angle |
160°
|
| Shutter / Strobe |
Electronic
|
| Dimming |
Electronic, 0 to 100%
|
| Operating Modes |
Color Change, Color Dimmer, DMX, Sound-Active
|
| Macros / Programs |
32x Color Change
|
| Effects |
No
|
| Gobos |
No
|
| Control Protocols |
DMX512
|
| DMX Channel Modes |
4 Mode(s):
3 / 5 / 7 / 10-Channel |
| Display / Controls |
LED / 4-Button
|
| Remote Control |
Yes
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
No
|
| Wireless |
No
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
No
|
| DC Input Power |
24 VDC
|
| Fuse |
No
|
| Environmental Resistance |
No
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Mounting |
Floor Base
|
| Included Accessories |
No
|
| Duty Cycle |
No
|
| Exterior Color |
Clear
|
| Dimensions |
23.62 x 23.62 x 2.76" / 59.99 x 59.99 x 7.01 cm
|
| Weight |
26.6 lb / 12.1 kg
|
