Description

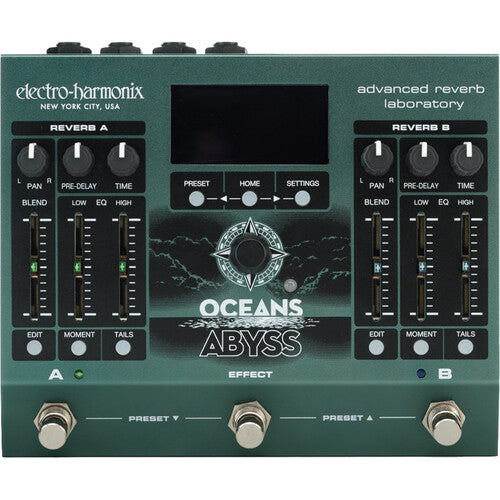

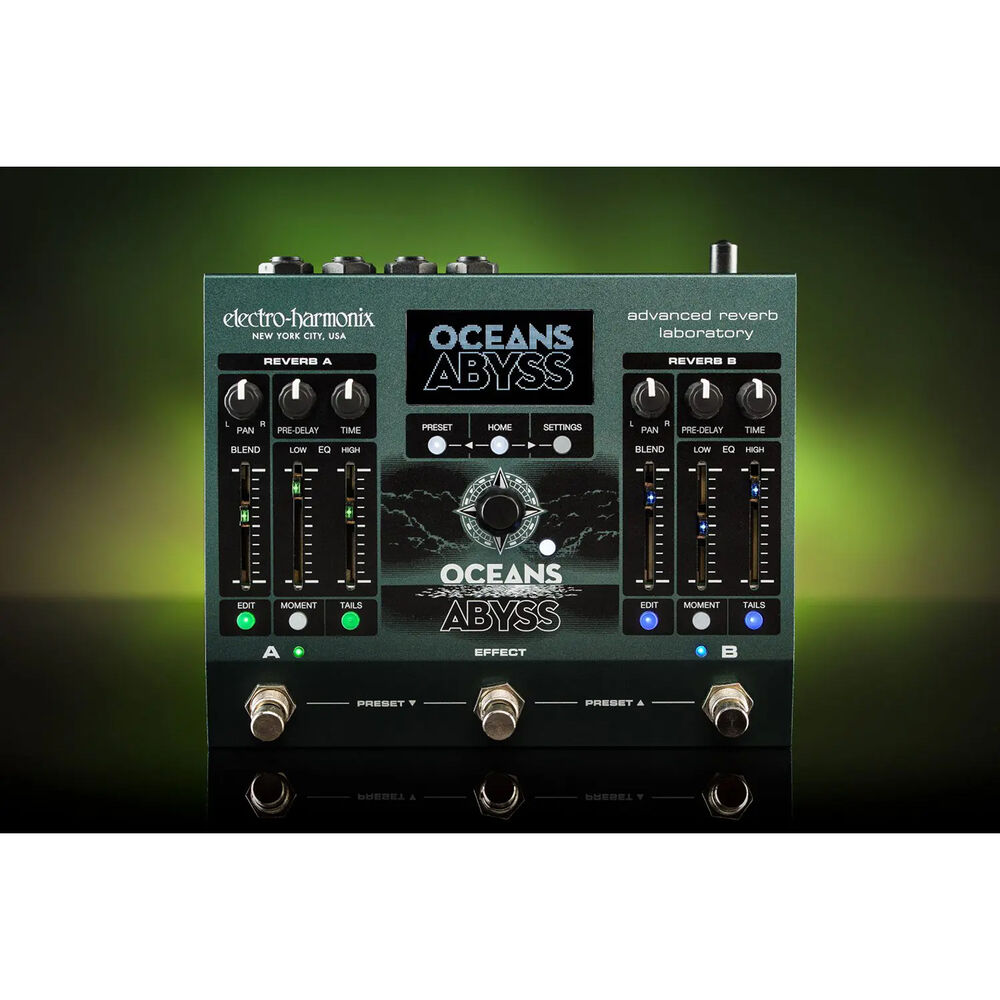

Electro-Harmonix Oceans Abyss Overview
The Oceans Abyss Advanced Reverb Laboratory Pedal from Electro-Harmonix is a truly immersive effects workstation centered around dual reverb engines, independently programmable with all-new full-stereo algorithms including hall, spring, and shimmer among others. Customizable signal paths and additional effects like delay, chorus, tremolo, and bitcrusher make this a unique and immersive audio processing tool.
Featuring a customizable signal path with up to eight effect blocks, the Oceans Abyss can be configured as individual reverb, modulation, EQ, delay, bitcrush, saturation, or volume effects, and all of these can be used in combination with each other to create an almost endless effects palette. The high-visibility OLED display allows for deep parameter editing with multiple graphical views and easy-to-read designs. Expression and CV control over nearly every parameter, fully-stereo I/O and an effects loop round out the main features of the unit. 128 programmable presets via onboard footswitching or MIDI make the user preset recall experience simple and quick. Interface with other equipment and DAWs via the MIDI in and out ports with support of PC, CC, and tempo clock. The unit can be connected to PC or Mac via USB-C.
- Runs on Windows and MacOS
- Firmware updates
- Preset transfer and backup to and from your computer
- Preset rearrangement
- Global settings entry
- Preset editing and creation
- Free download from manufacturer website
- 10 reverb types to choose from: Room, Hall, Spring, Plate, Reverse, Dynamic, Auto-Infinite, Shimmer, Polyphonic, Resonant
- Additional FX blocks: Delay (Digital, Analog, and Tape emulations), Tremolo, Chorus, Flanger, Phaser, Graphic EQ, Saturation, Bit Crusher, External FX Loop, Volume
- Custom signal path routing with up to eight effects blocks. Two blocks may be reverb, the rest may be any of the additional FX blocks
- Infinite reverb sustain with footswitch press
- Loop routing on TRS jacks
- Easily enable or disable tails
- 128 fully customizable presets

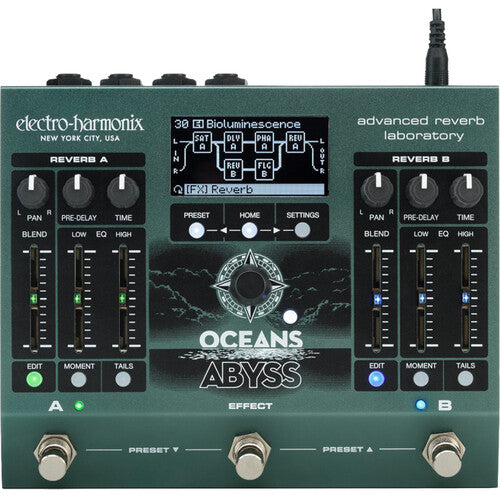

- High-visibility OLED graphical display
- Multiple graphical views: Signal Path, Performance, Settings, Physical, Explorer
- Easy-to-navigate menu system with ergonomic control
- Coder knob allows rotary and directional navigation through menus
- Dual action footswitches allow momentary or latching function and adding up to three external footswitches, each assignable to a number of functions
- MIDI IN supports PC, CC (over nearly every available parameter), and Tempo Clock
- Electro-Harmonix Oceans Abyss Advanced Reverb Laboratory Pedal
- Power Supply
- Limited 1-Year Manufacturer Warranty
Electro-Harmonix Oceans Abyss Specs
| A/D Conversion |
24-bit, 96 kHz
|
| Panel Type |
OLED
|
| Size |
Not Specified by Manufacturer
|
| Touchscreen |
No
|
| USB I/O |
1 x USB-C Female Input
|

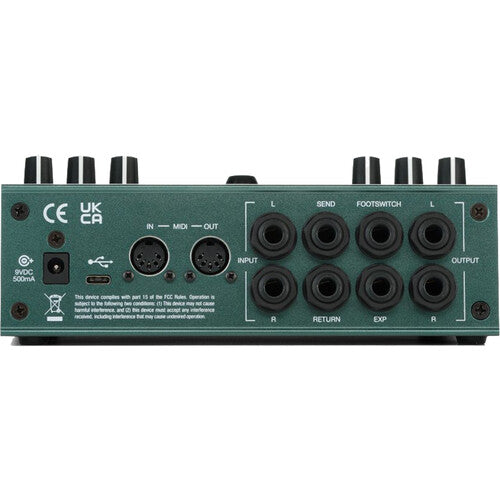

| Audio I/O |
2x 1/4" Hi-Z/Instrument Input
2x 1/4" Hi-Z/Instrument Output 1x 1/4" Hi-Z/Instrument Output (Send) 1x 1/4" Hi-Z/Instrument Input (Return) 1x 1/4" Hi-Z/Instrument Input (Footswitch) 1x 1/4" Hi-Z/Instrument Input (Expression) 1x DIN 5-Pin Input (MIDI) 1x DIN 5-Pin Output (MIDI) |
| Media/Memory Card Slot |
Yes
|
| Internal Storage |
Yes
|
| Mobile App Compatible |
No
|
| Power Source |
DC Input (Included)
|
| DC Input Power |
9 to 10.5 VDC
|
| Operating Current |
500 mA
|
| Input Impedance |
2 Megohms
|
| Output Impedance |
400 Ohms
|
| Color |
Green
|
| Dimensions |
7.13 x 5.75 x 2.25" / 18.11 x 14.61 x 5.71 cm
|
| Package Weight |
2.54 lb
|
| Box Dimensions (LxWxH) |
10 x 7 x 3.5"
|
