Description

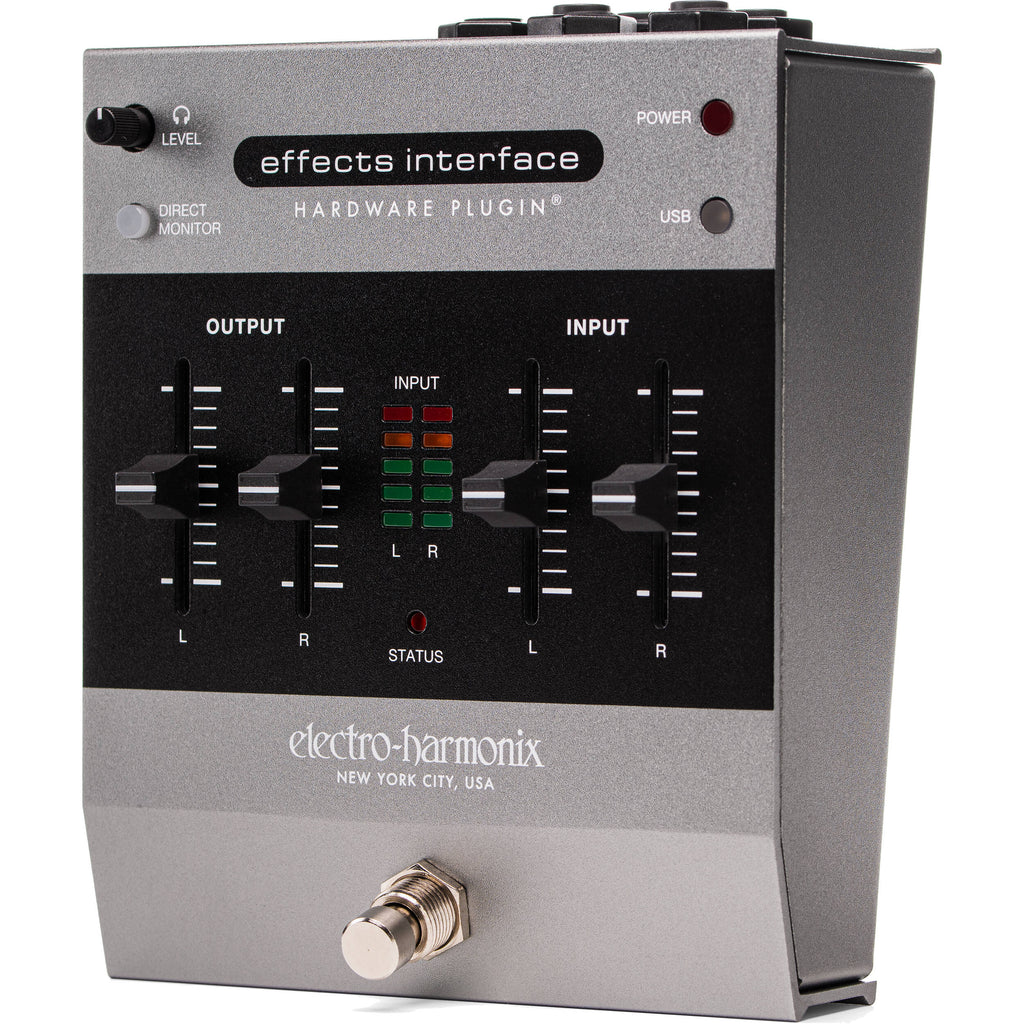

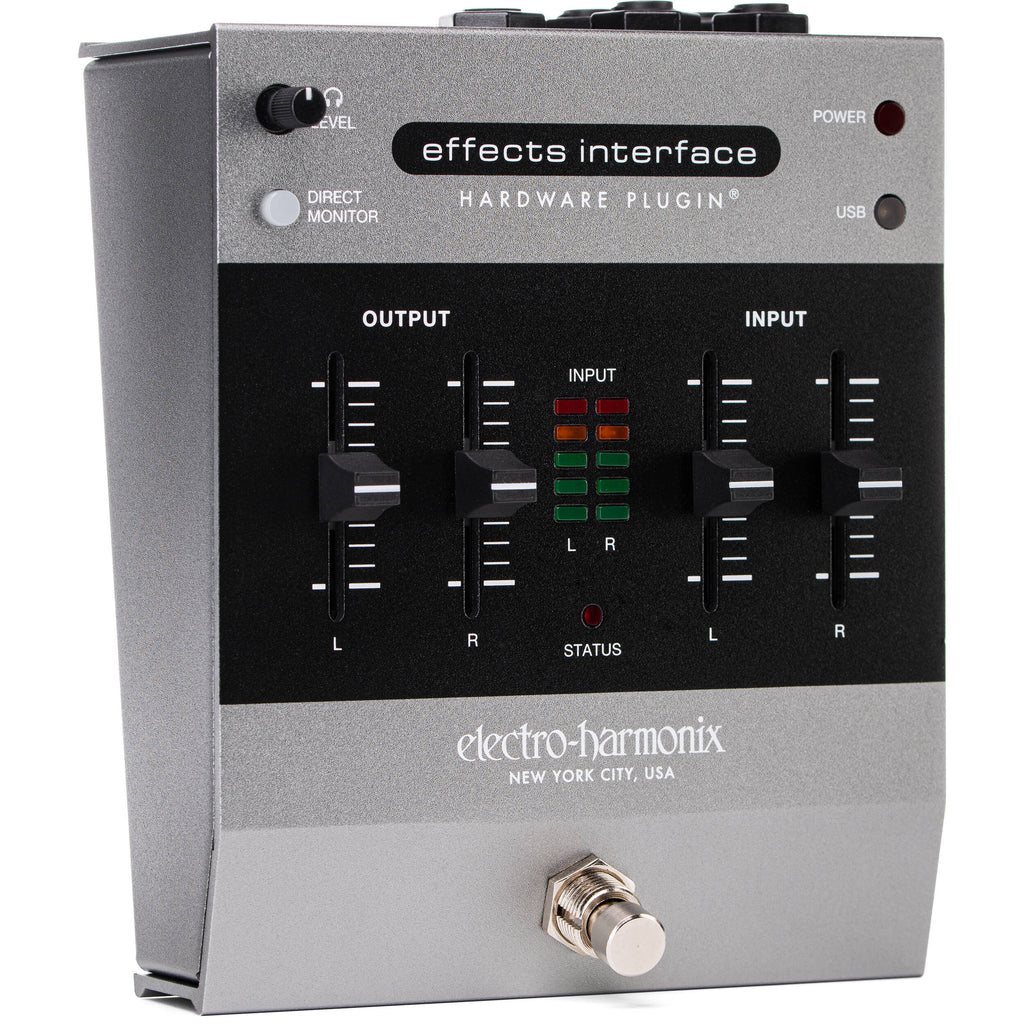

Electro-Harmonix EHX Interface Overview
Integrate your software and hardware like never before with the Electro-Harmonix Effects Interface Hardware Plug-In, an innovative interface pedal for guitar rigs that lets you route your DAW plug-in FX into your external signal chain vice versa. The pedal offers three modes: Hardware Plug-In mode, which sends DAW signals through your hardware, Pedalboard mode for routing signals through your DAW and back out, and a pure 2x2 USB audio interface mode.
The Effects Interface Hardware Plug-In provides stereo 1/4" I/O with dedicated sliders for level control and a clear 5-segment stereo LED meter. The pedal also offers a headphone output with volume adjustment. Hit the Direct Monitor button to listen to what's coming into your pedal before it's routed out to your hardware. The USB-C port enables host connection to your software and optional power. With wide compatibility for numerous DAWs, this pedal greatly enhances the workflow of any guitarist or synthesist working with both plug-ins and outboard gear. The Effects Interface Hardware Plug-In includes a USB-C cable and a power supply.
- Hardware Plug-In mode: sends tracks and signals from your DAW through your pedals and outboard hardware just as if you were using a plug-in
- Pedalboard mode: run your instrument into your DAW, through your plug-ins, and back out to your external signal chain, effectively turning your plug-ins into a pedal
- Audio Interface mode: use the Effects Interface as a traditional 2x2 USB audio interface
- Electro-Harmonix Effects Interface Hardware Plug-In USB Recording Pedal
- USB-C Cable
- Power Supply
- Limited 1-Year Manufacturer Warranty
Electro-Harmonix EHX Interface Specs
| Audio Circuit Type |
Digital
|
| Input Impedance |
2 Megohms
|
| Output Impedance |
330 Ohms
|
| Maximum Input Level |
+7 dBu
|
| Maximum Output Level |
+8 dBu
|
| Sampling Rate |
44.1, 48, 88.1, 96 kHz
|
| Bit Depth |
24-Bit
|
| USB I/O |
1 x USB-C Female Input/Output
|

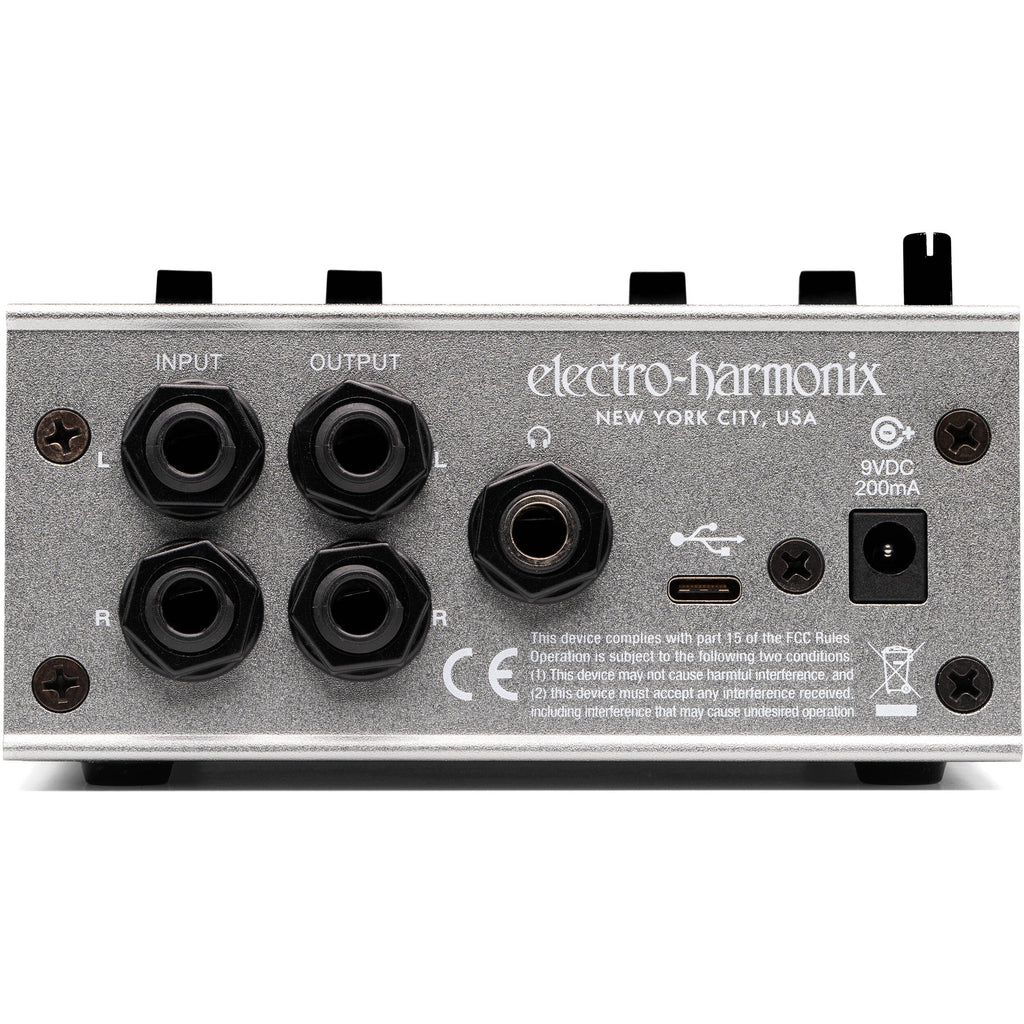

| Audio I/O |
2x 1/4" Hi-Z/Instrument Input (1 Stereo Pair)
2x 1/4" Line Output (1 Stereo Pair) 1x 1/4" TRS Headphone Output |
| Power Source |
AC Adapter with Power Brick (Included)
|
| DC Input Power |
5 to 9 VDC at 200 mA
|
| Operating Current |
125 mA
|
| Color |
Gray
|
| Material of Construction |
Metal
|
| Package Weight |
2.1 lb
|
| Box Dimensions (LxWxH) |
8.5 x 6.5 x 3.4"
|
