Description

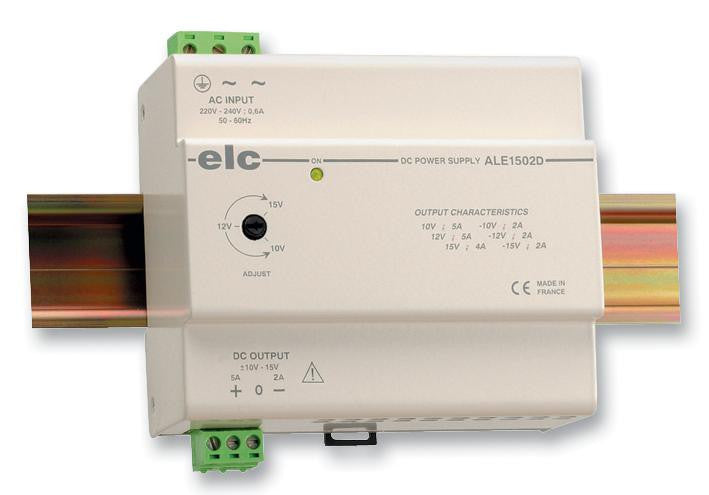

The ALE1502D is a 2A/15V 60W fixed, modular and symmetrical output regulated OEM Power Supply with floating outputs on disconnect screw terminal block for 2.5mm� (AWG 12) wires, balanced-output voltage adjustable from �10 to �15V. Protection against short-circuits by current regulation and against over-current on primary circuit by fuse. This power supply is suitable for integral symmetrical DIN rail clips.
- 72VA Power consumption
- Green power-on LED indicator
- 4000V from input to output & 1500V from input to chassis Dielectric strength
- IP30 Protection rating
- Class-I, complies with EN 60950 safety
Applications
Power Management
Product details
| Power Supply Output Type | Fixed |
| Output Power Max | 60W |
| No. of Outputs | 2Outputs |
| Output Voltage - Output 2 | -15V |
| Output Current - Output 2 | 2A |
| Input Voltage AC Max | 253V |
| Input Voltage AC Min | 190V |
| Product Range | - |
| Output Voltage - Output 1 | 15V |
| Output Current - Output 1 | 2A |
Other details
| Brand | ELC |
| Part Number | ALE1502D |
| Quantity | Each |
| Technical Data Sheet EN |  |
