| ₹ 158440.0 includes GST and import duties. | |
| B2B customers can avail ₹ 24162.1 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

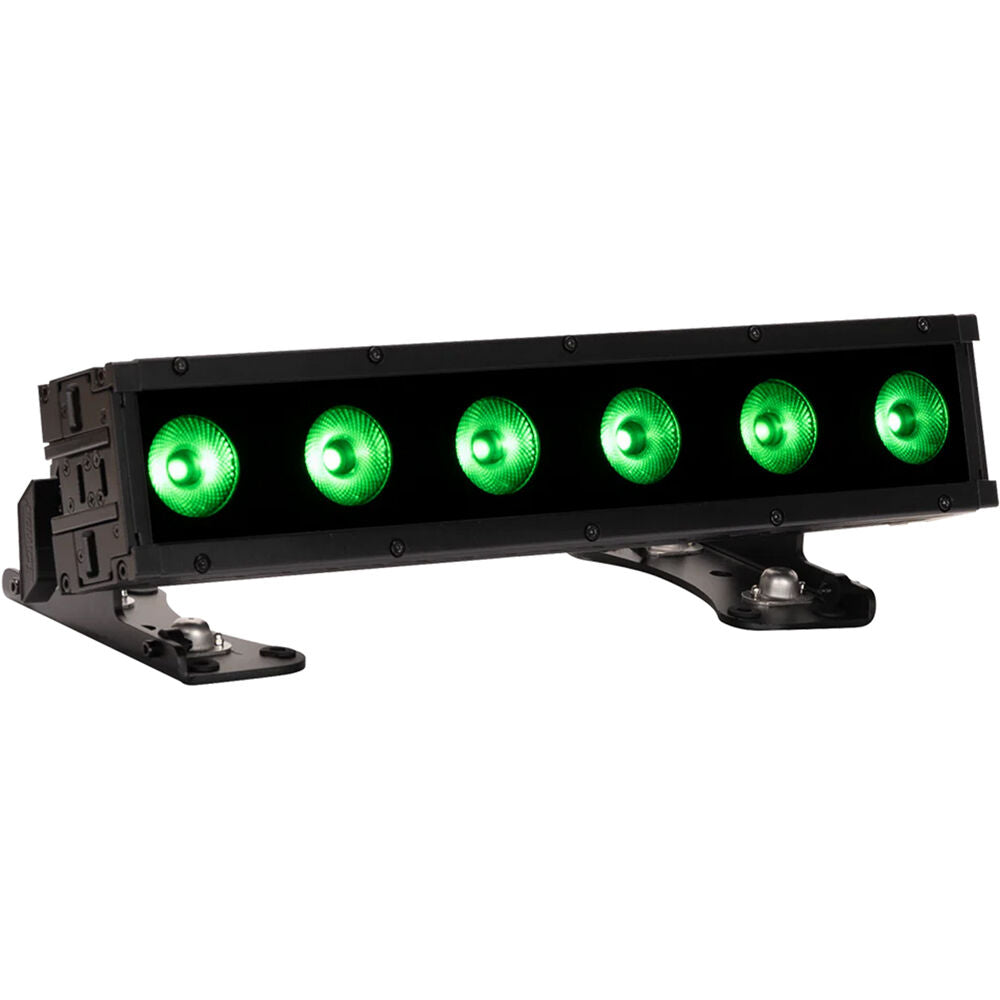

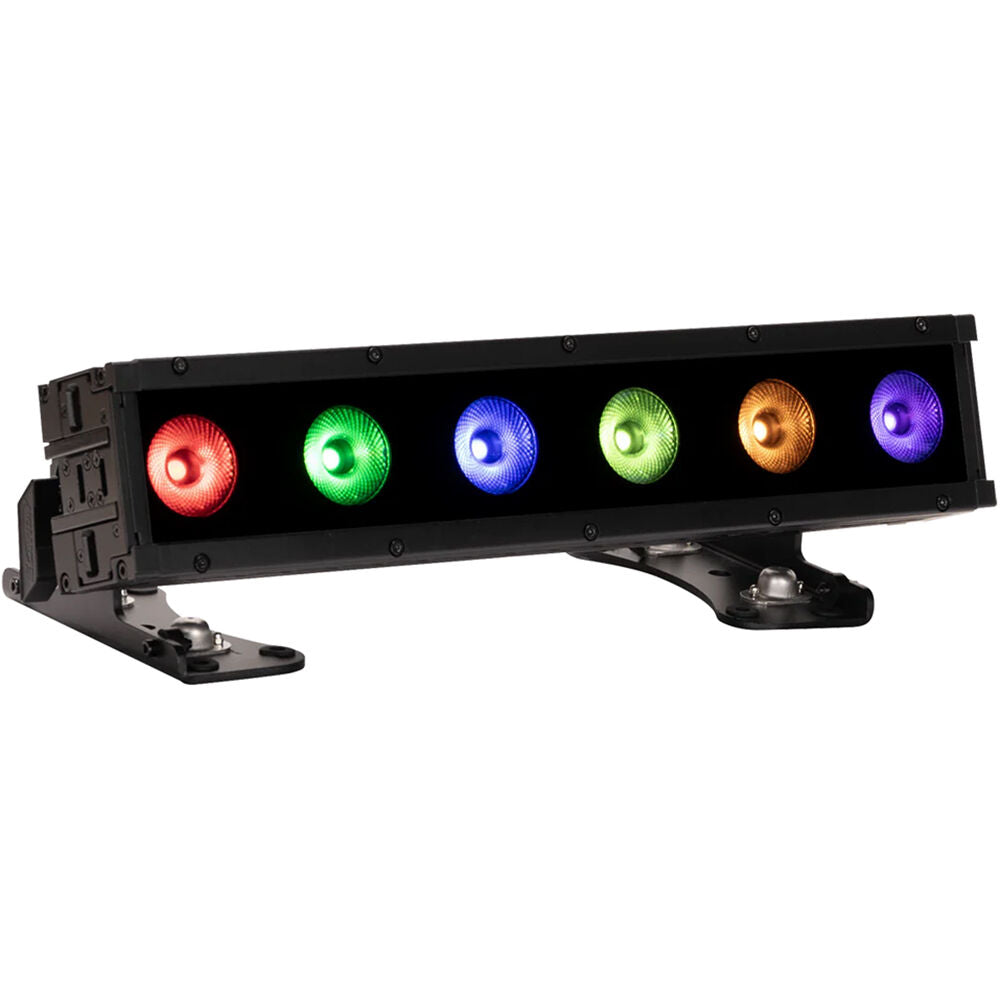

Elation Professional SIX+ BAR S Overview
Designed with a broader color spectrum and a rain and dust-resistant IP-65-rated housing, the Elation Professional SIX+ BAR S RGBLA+UV LED Linear Batten Fixture delivers high-fidelity whites and intense primaries with homogenized color blending, while creating remarkable strobe effects with full pixel control for uplighting and wall washing. This fixture, constructed with six 20W RGBLA+UV LEDs and a native 20? beam angle, produces a 4435-lumen output for illuminating indoor and outdoor productions.
Users can adjust the light's 16-bit electronic dimming and strobe effects and dynamic color effects with its simple control options, including Art-Net, sACN, RDM, and DMX. With its integrated L track on three sides for flexible mounting and the included fixture interconnect splice, the fixture is simple to mount and position. Use the included frost filter and glare shield for more refined lighting output and secure the fixture in place with its included safety cable.
- 6 x 20W RGBLA+UV LED array
- >4000 lumens, 90.9 CRI
- Extra large 50mm lenses
- Beam Angle: 30 x 14? (frost filter included)
- Full pixel control
- Completely fanless cooling

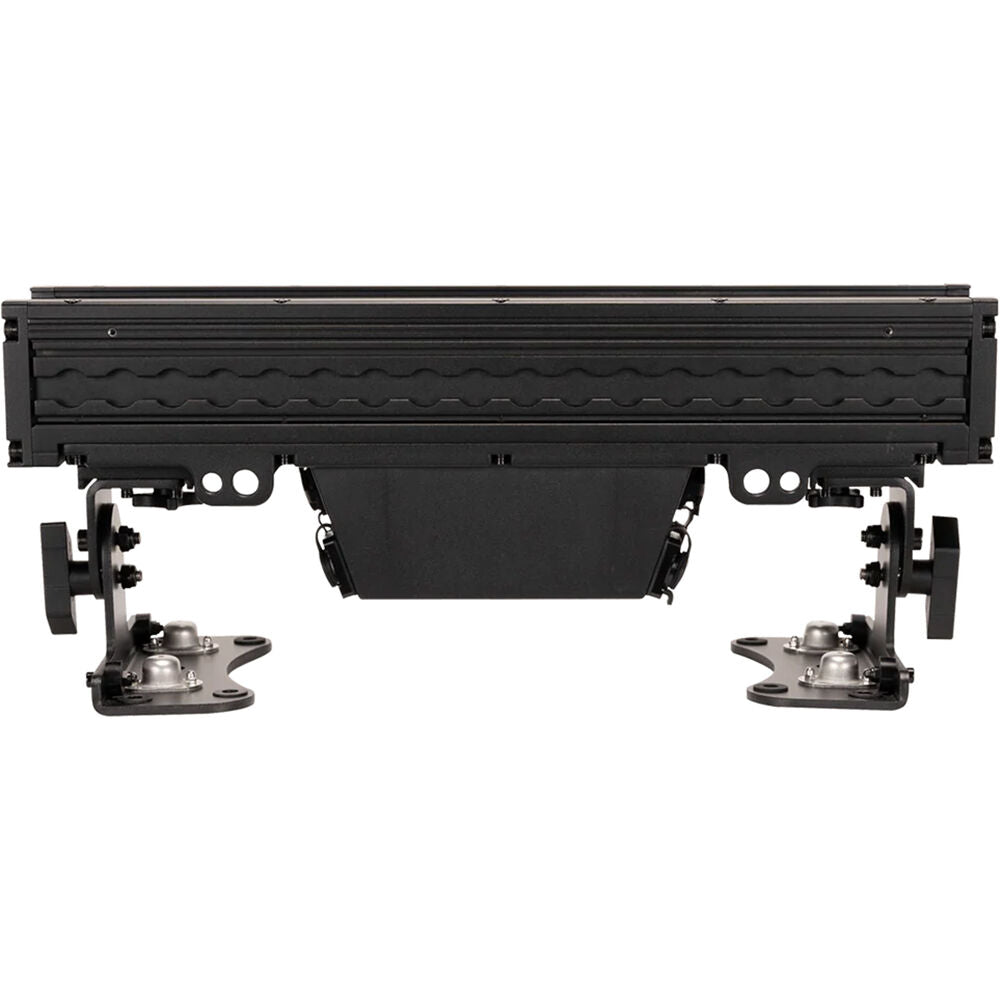

- Integrated L track for flexible mounting
- Unique end-to-end interconnection system
- Art-Net, sACN, and KlingNet support
- IP65 rated
Items Included
- Elation Professional SIX+ BAR S IP65 RGBLA+UV LED Linear Batten Fixture
- Safety Cable
- IP65 Locking Power Cable
- Frost Filter
- Glare Shield
- Fixture Interconnect Splice
- Limited 2-Year Manufacturer Warranty
Additional Resources
Elation Professional SIX+ BAR S Specs
| Fixture Type |
Linear/Bar Light
|
| Light Source |
6x Color/UV LED - 20 W
|
| Colors |
Amber, Blue, Green, Lime, Red, Ultraviolet
|
| Pixel Configuration |
6x Zone
|
| Beam Angle |
20? (without Filter)
30? (with Filter) |
| Control Protocols |
DMX512, RDM, Aria X2, Art-Net, Kling-Net, sACN
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
110 W
|

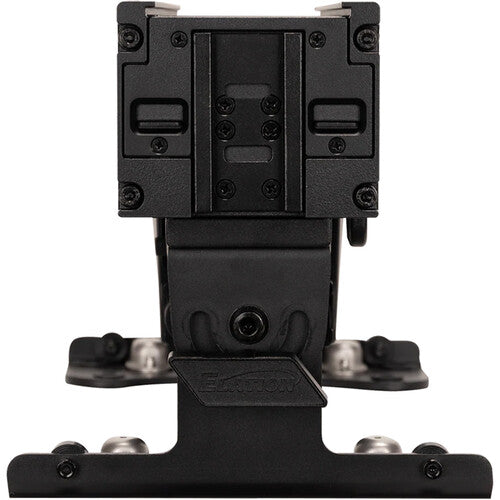

| Mounting |
Mounting Bracket
|
| Fixture Type |
Linear/Bar Light
|
| Light Source |
6x Color/UV LED - 20 W
|
| Expected Lamp Life |
30,000 Hours
|
| Colors |
Amber, Blue, Green, Lime, Red, Ultraviolet
|
| Pixel Configuration |
6x Zone
|
| Photometrics |
20?:
360 fc / 3885 Lux at 9.8' / 3 m (Full On) 129 fc / 1399 Lux at 16.4' / 5 m (Full On) 32 fc / 350 Lux at 32.8' / 10 m (Full On) 30?: 103 fc / 1116 Lux at 9.8' / 3 m (Full On) 37 fc / 402 Lux at 16.4' / 5 m (Full On) 9 fc / 100 Lux at 32.8' / 10 m (Full On) |
| Color Temperature |
2400 to 8500K
|
| Lumen Output |
4435 Lumens
|
| Beam Angle |
20? (without Filter)
30? (with Filter) |
| Field Angle |
33? (without Filter)
60? (with Filter) |
| Shutter / Strobe |
Electronic
|
| Iris |
No
|
| Focus |
Manual
|
| Zoom Adjustment |
No
|
| Dimming |
16-Bit Electronic, 0 to 100%
|
| Operating Modes |
DMX, Primary/Secondary, Static Color
|
| Gobos |
No
|
| Color Accuracy Index |
CRI: 90.9
|
| Control Protocols |
DMX512, RDM, Aria X2, Art-Net, Kling-Net, sACN
|
| DMX Channel Modes |
18 Mode(s):
1 / 6 / 3 / 7 / 9 / 11 / 13 / 16 / 22 / 34 / 46 / 82 / 36-Channel |

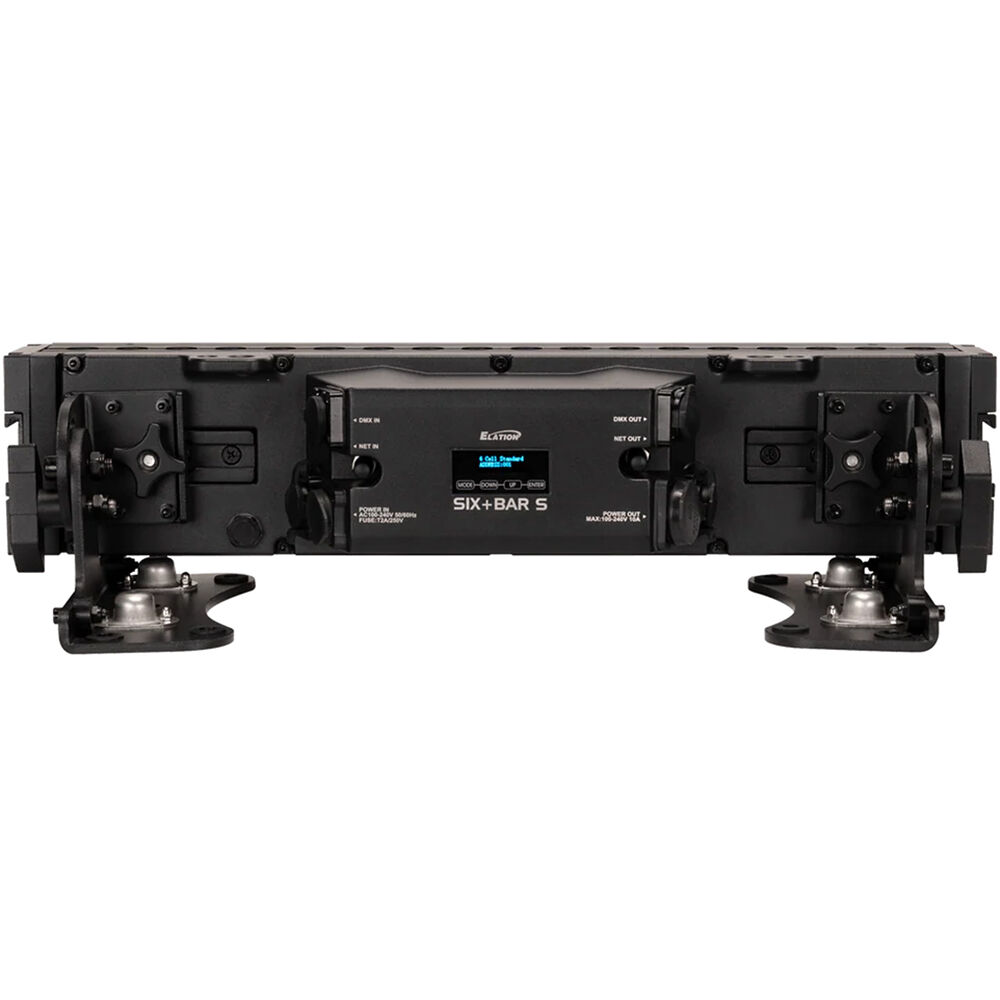

| Display / Controls |
LED / 4-Button
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|

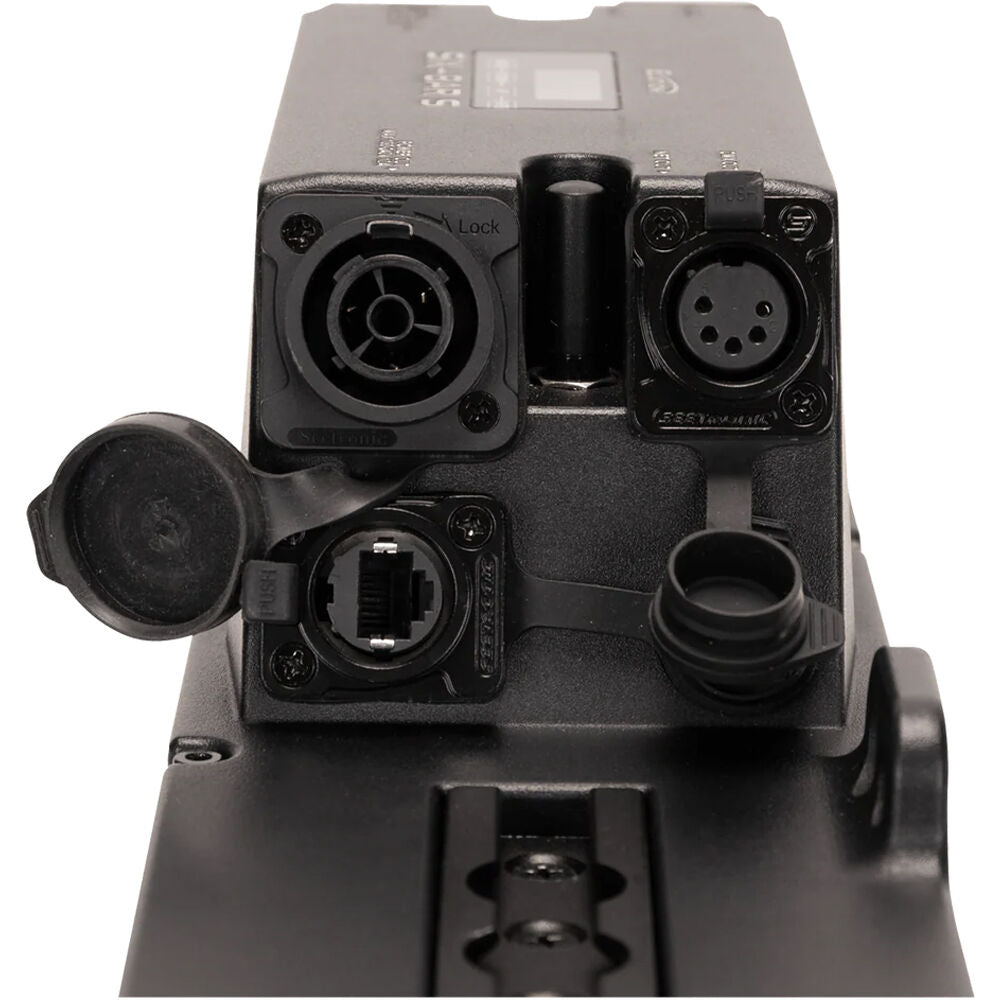

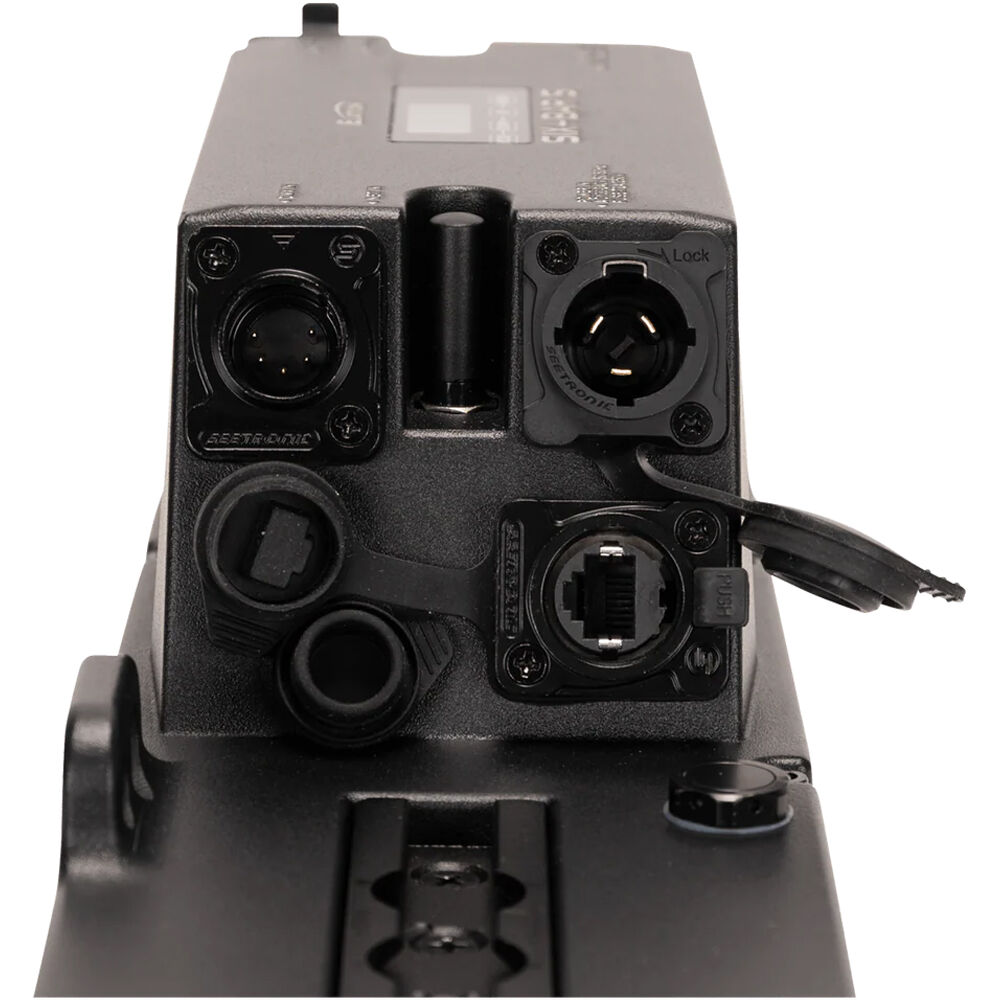

| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x RJ45 Network Input 1 x RJ45 Network Output |
| Wireless |
Proprietary Wireless
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Power / Current Consumption |
110 W
|
| Power Linking |
10 Units at 110 VAC
21 Units at 240 VAC |
| Environmental Resistance |
Dust/Water-Resistant (IP65)
|
| Operating Conditions |
5 to 113?F / -15 to 45?C
|
| Mounting |
Mounting Bracket
|
| Included Accessories |
1x Power Cable
1x Filter 1x Safety Cable |
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, FCC, UKCA, cETLus
|
| Dimensions |
19.7 x 8.1 x 6.9" / 50 x 20.6 x 17.5 cm
|
| Weight |
14.8 lb / 6.7 kg
|
| Package Weight |
21.06 lb
|
| Box Dimensions (LxWxH) |
26.8 x 12.6 x 9.8"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 155271.2 |
| 3-5 | ₹ 153686.8 |
| 5-10 | ₹ 150518.0 |
| 10+ | ₹ 147349.2 |
Bulk discount will be automatically applied during checkout based on quantity.
