Description
Elation Professional Pixel Driver 170IP Overview

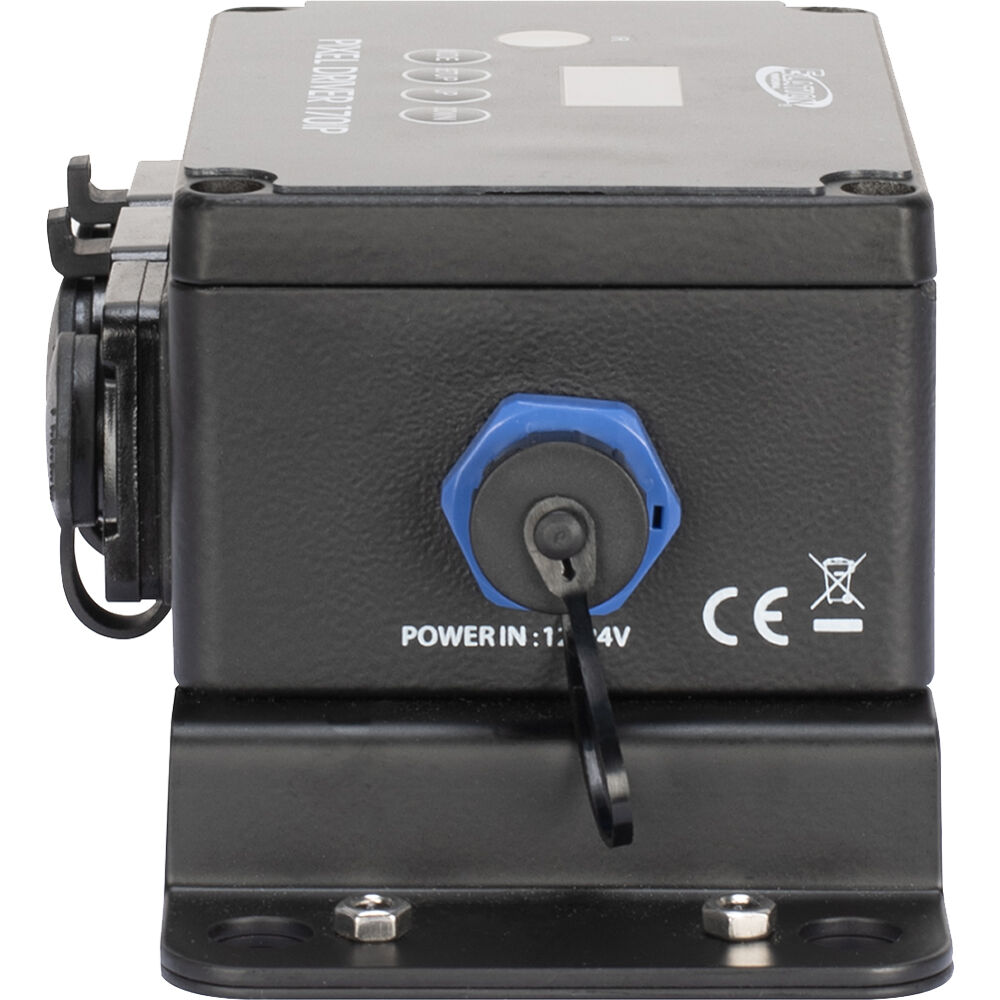

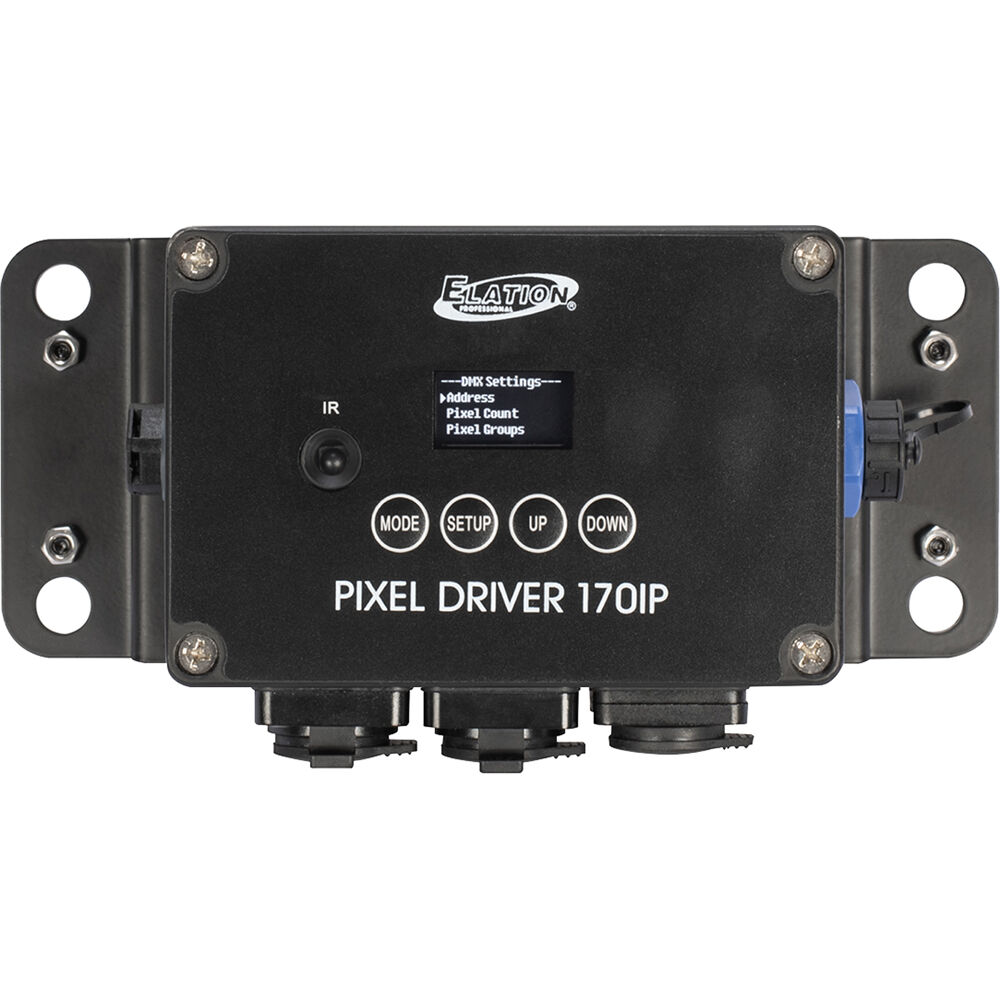

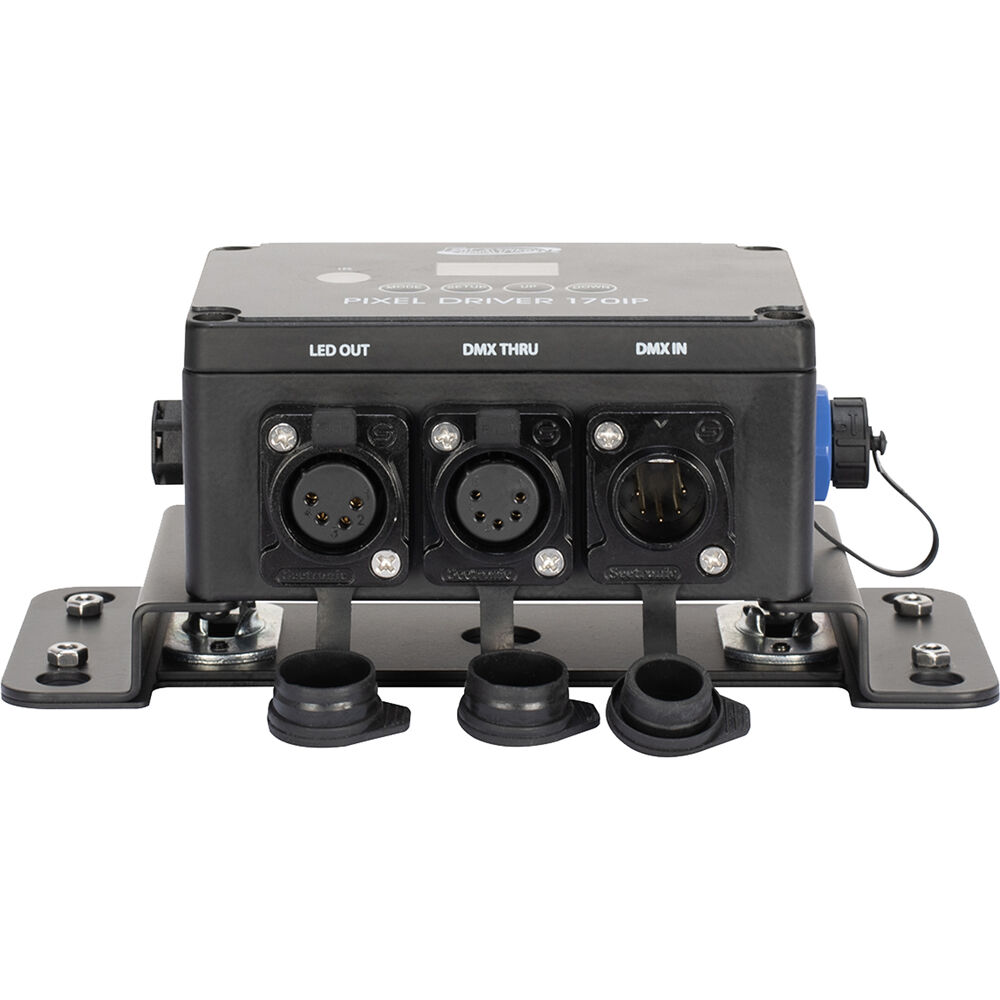

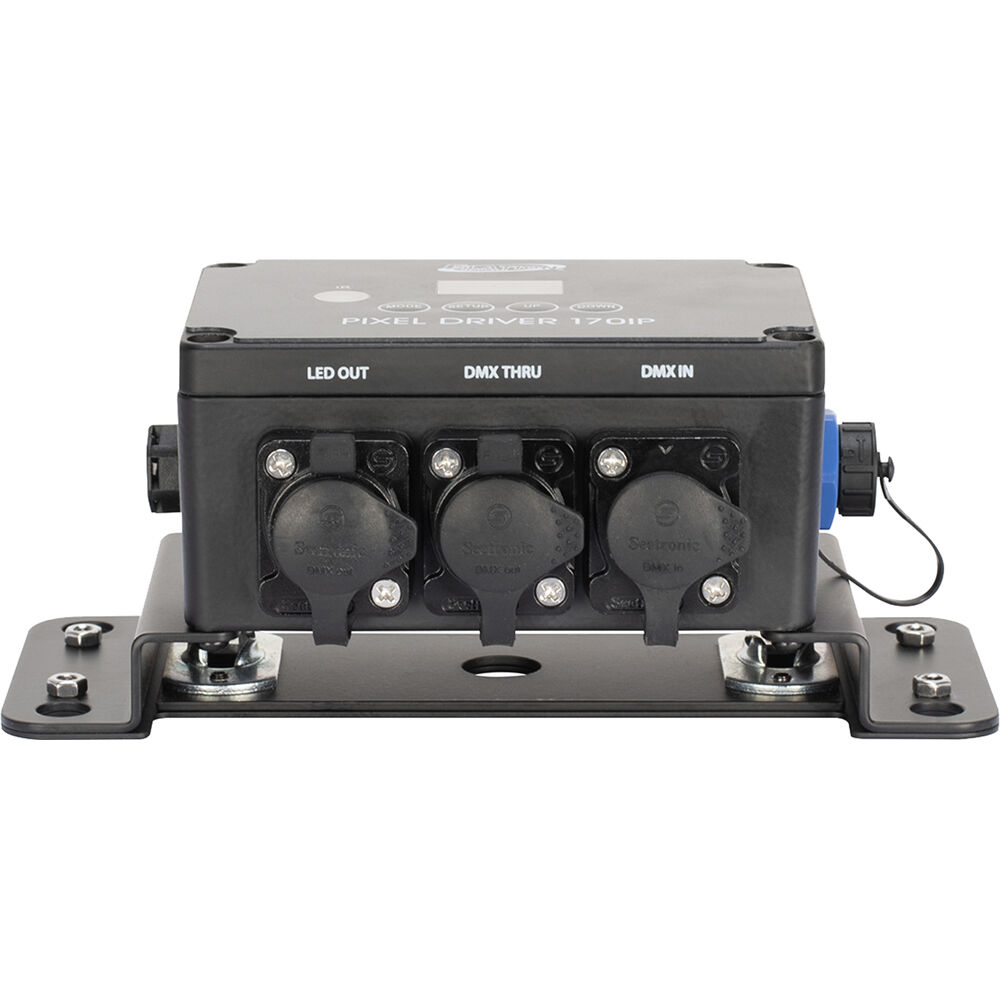

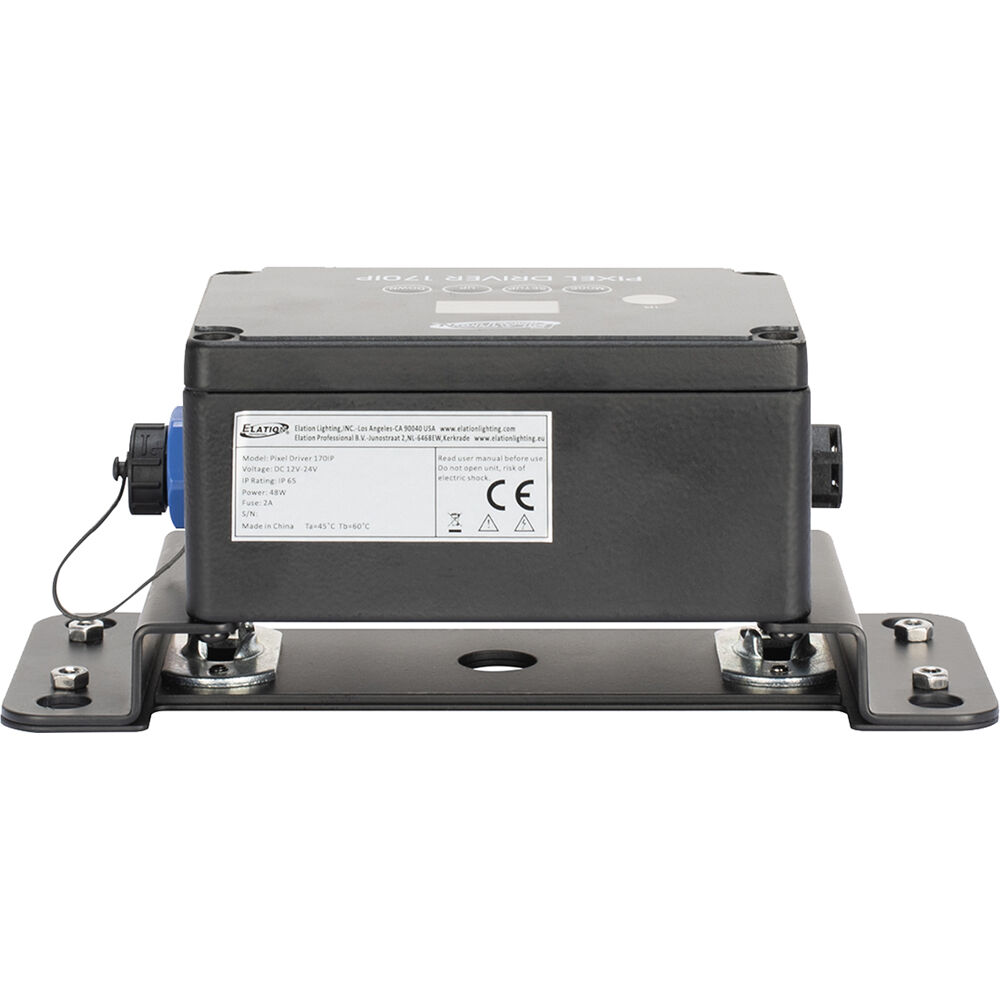

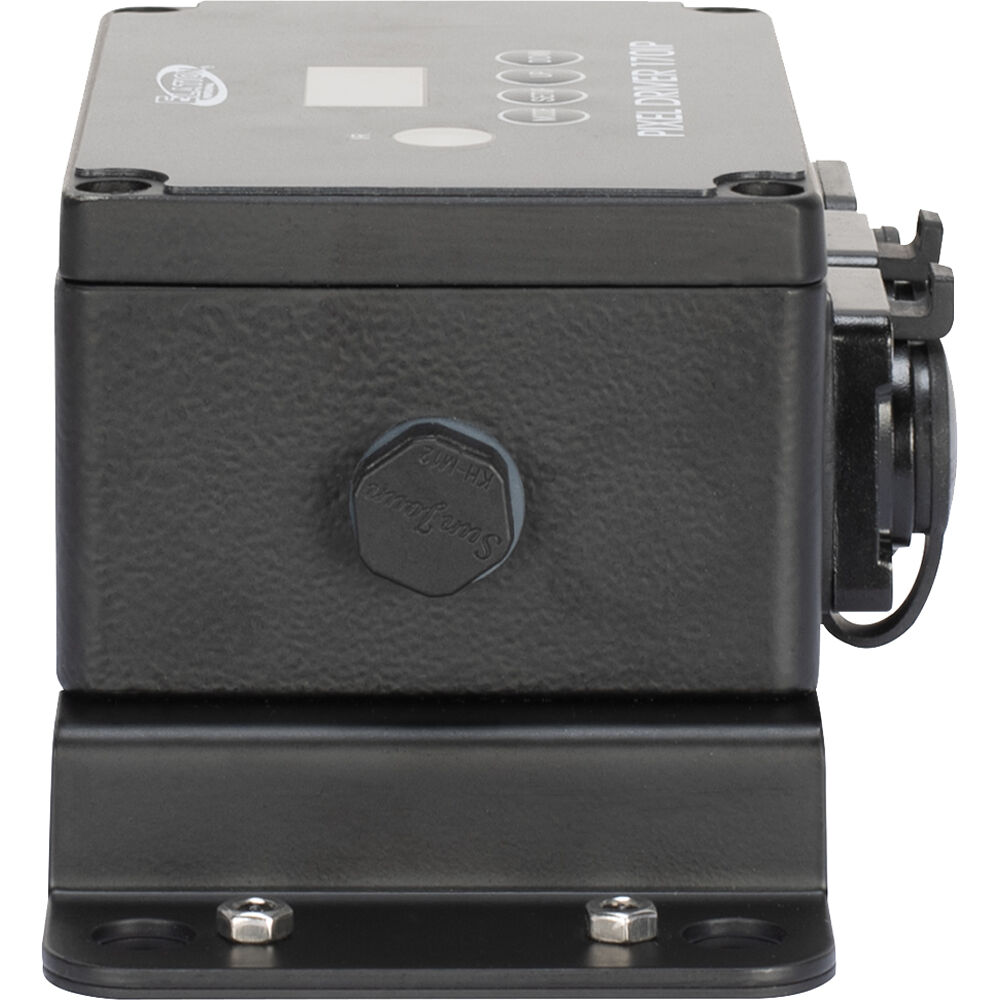

The Pixel Driver 170IP from Elation Professional is a proficient, IP65 water-resistant tape driver specifically designed for the Elation Pixel Tape 16IP, Pixel Tape 40IP, and Pixel Wash 40IP. This driver provides simple and easy control options, including a 3-button OLED display, EL IR Remote (included), and one full universe of DMX control (170 pixels). The Pixel Driver 170IP features an easy-to-use OLED display, pixel grouping, DMX in and out, a 4-pin XLR connector for LED output, and a 2-pin connector for 12-24 VDC power in.
Benefits
The Pixel Driver 170IP's small compact design allows for easy mounting and integration into any system.
UPC: 810008263686
In the Box
- Elation Professional Pixel Driver 170IP
- EL-IR Remote
- IR Receiver Cable
- 2-Pin Power Cable
- Limited 2-Year Manufacturer Warranty
Not in the Box
- Essential Power Supplies (Not Included)
Elation Professional Pixel Driver 170IP Specs
Key Specs
| Inputs/Outputs |
2 x 5-Pin (DMX) Male Input/Output
|
General
| Inputs/Outputs |
2 x 5-Pin (DMX) Male Input/Output
|
| Cooling System |
Passive
|
Power
| Power Consumption |
48 W
|
| DC Input Power |
12 to 24 VDC at 2 A
|
Environmental
| Certifications |
CE, RoHS, cETL
*as per Manufacturer |
| IP Rating |
IP65
|
| Environmental Protection |
Advertised as Weather Resistant
*Manufacturer Testing: IP65 |
Physical
| Dimensions |
3.7 x 7.4 x 3.0" / 93.5 x 187.0 x 75.7 mm (Without Mounting Bracket)
|
| Weight |
1.79 lb / 0.81 kg
|
