Description
Elation Professional Paladin Brick Overview
- 1Description
- 2Features
- 3Source
- 4Photometrics
- 5Control Connections

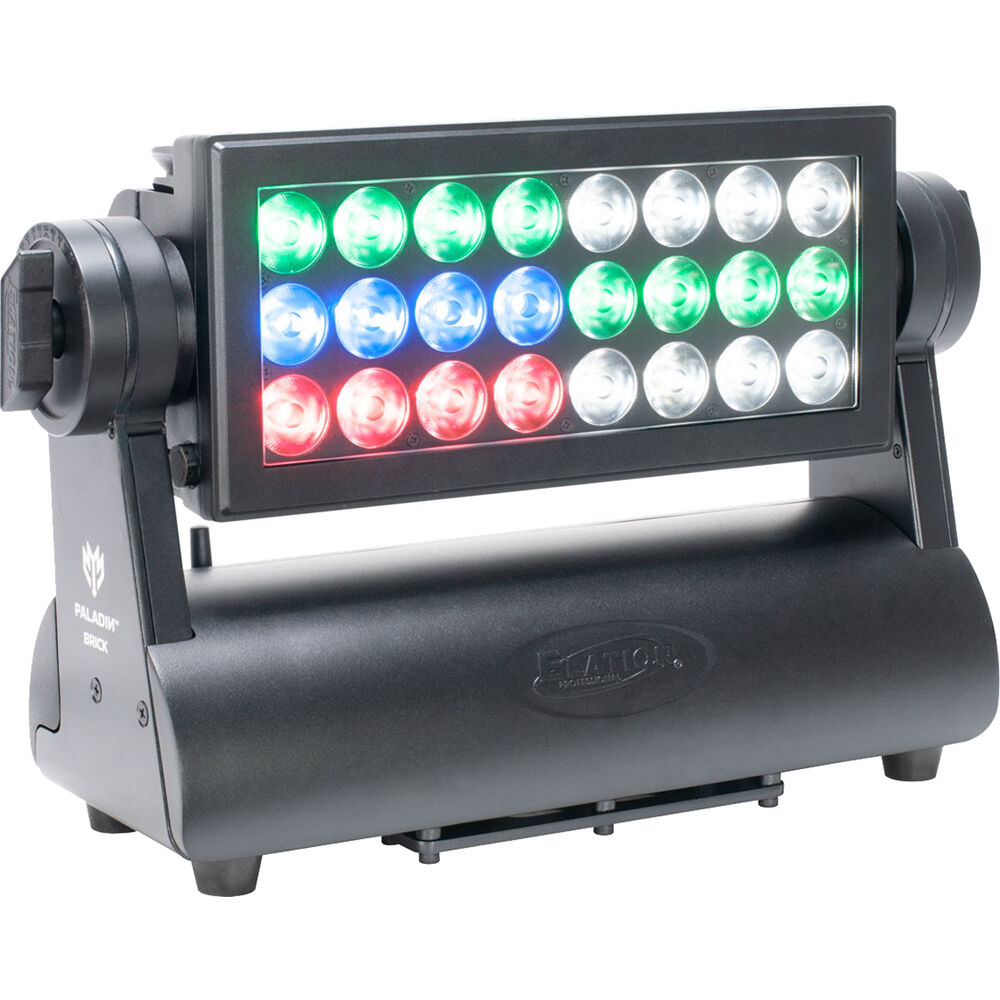

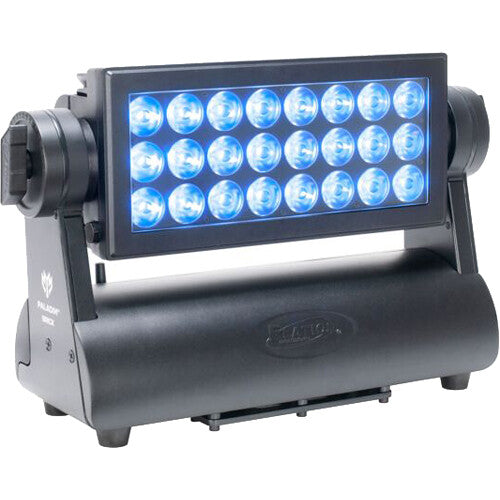

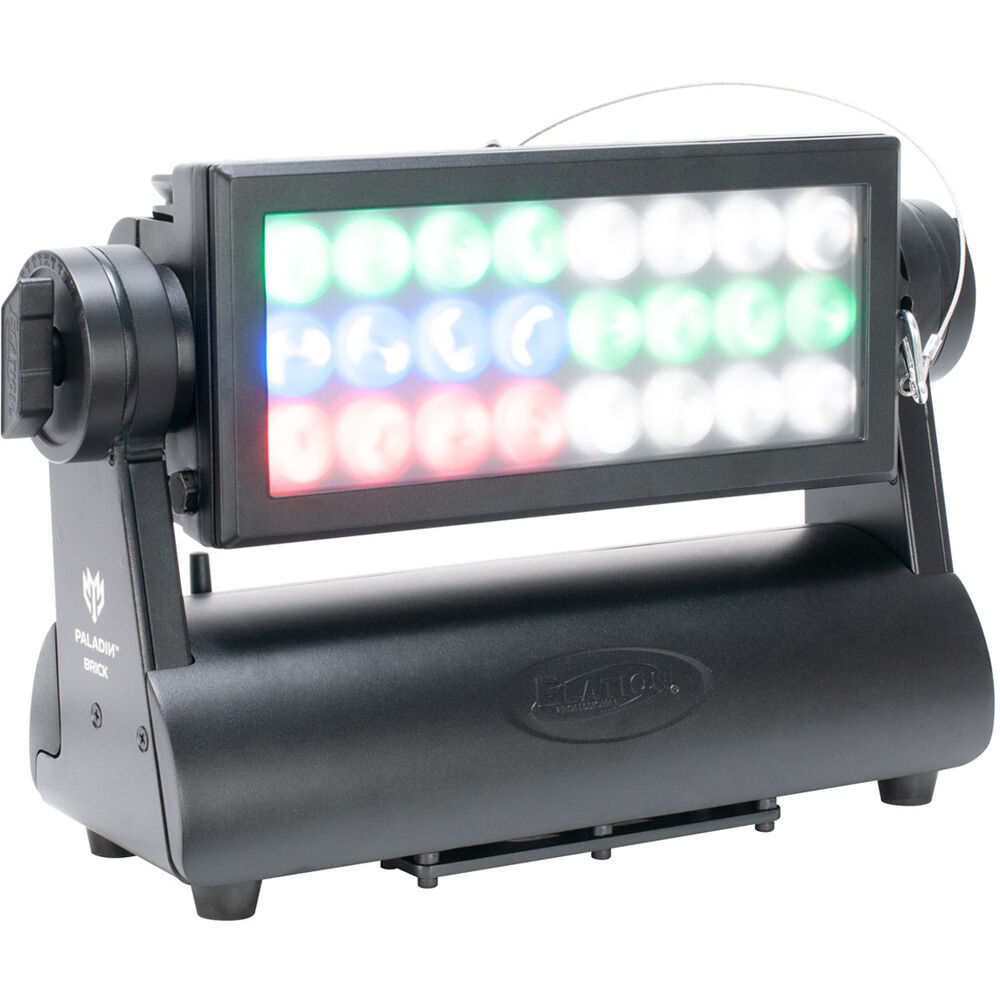

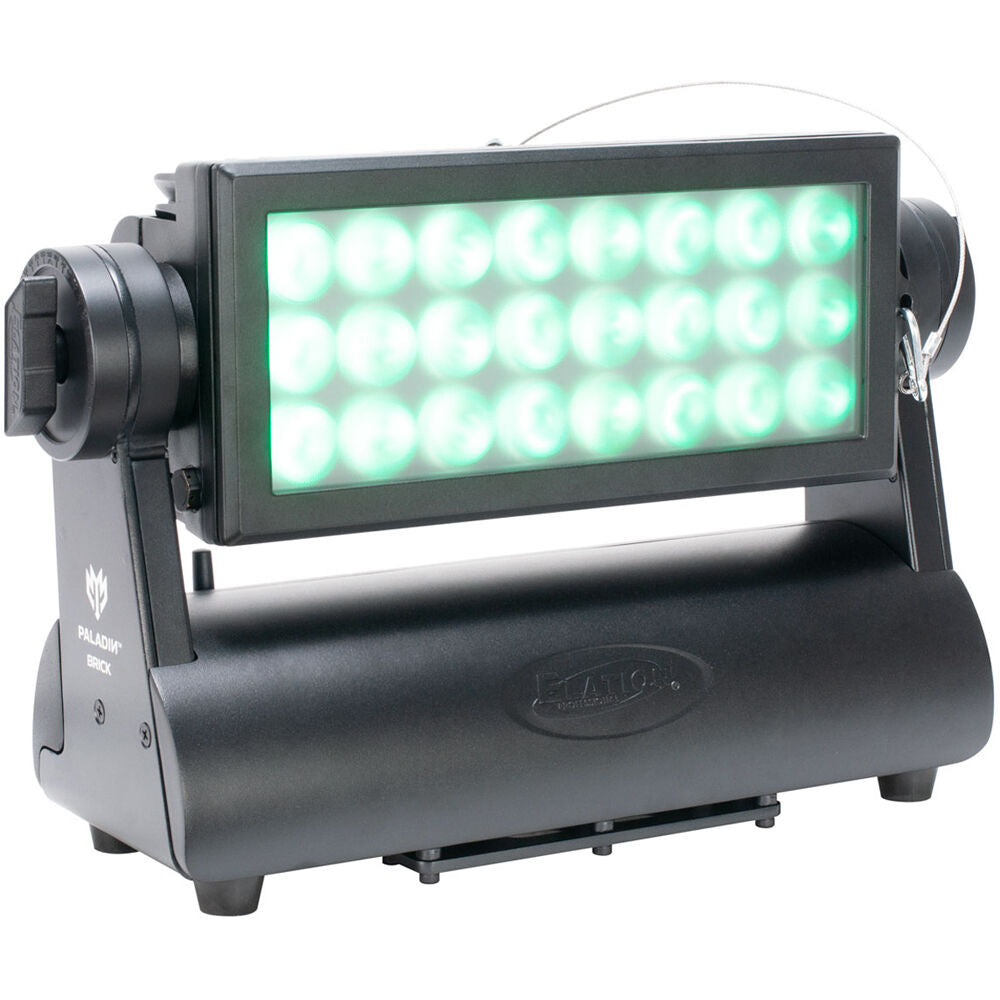

The Paladin Brick RGBW Floodlight from Elation Professional is a compact and powerful outdoor floodlight for a wide variety of applications. Using twenty-four 15W RGBW cells, it provides a total output of up to 8200 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP-rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. It can be operated standing on the floor or hung in any orientation using the provided omega brackets. Available cell control and strobe features make the PALADIN Brick also a versatile effects fixture or audience blinder.
- 360W RGBW floodlight
- 3x2 control
- Rugged IP65 design for outdoor events
- Floor standing or mountable in any orientation
- Twenty-four 15W RGBW LED emitters
- 50,000-hour average LED life
- 6000K color temperature
- 8200 total lumen output
- 14.1° beam, 25.4° field angle (without diffuser)
- 25.3° beam, 50° field angle (with diffuser)
- 11 DMX channel modes (56 total channels)
- 3x2 cell control manual tilt adjustment
- DMX and RDM protocol support
- Standalone and primary/secondary operation
- 4-button OLED control display
- Elation�s E-FLY internal wireless DMX transceiver
- IP65 5-pin DMX in/out
- IP65 power in/out
- Wired digital communication network
In the Box
- Elation Professional Paladin Brick RGBW Floodlight (360W)
- Magnetic Frost Filter
- Omega Bracket
- Frost Filter Safety Cable
- IP65 Twist-Lock Power Cable
Guides & Manuals
- Description
- Features
- Source
- Photometrics
- Control Connections
Elation Professional Paladin Brick Specs
| Fixture Type | LED Panel |
| Light Source | 24 x Color LED - 15 W |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red Green Blue White |
| Pixel Configuration | 6 x Zones |
| Photometrics | 14°: 10,767.3 fc / 115,902 Lux at 3.3' / 1 m (Full On) 2691.8 fc / 28,975 Lux at 6.6' / 2 m (Full On) 1196.4 fc / 12,878 Lux at 9.8' / 3 m (Full On) |
| Color Temperature | 6000K |
| Lumen Output | 8200 Lumens |
| Beam Angle | 14° (without Filter) 25° (with Filter) |
| Field Angle | 25° (without Filter) 50° (with Filter) |
| Iris | No |
| Zoom Adjustment | None |
| Operating Modes | DMX, Primary/Secondary, Standalone |
| Macros / Programs | 12 x Internal Program |
| Effects | Strobe |
| Gobos | None |
| Refresh Rate | 900 Hz to 25,000 Hz |
| Control Protocols | DMX512, W-DMX, RDM |
| DMX Channel Modes | 11 Mode(s): 32-Channel |
| Display / Controls | OLED / 4-Button |
| Remote Control | None |
| App Compatible | No *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1 |
| Fuse | None |
| Power / Current Consumption | 390 W |
| IP Rating | IP65 |
| Operating Temperature | 5 to 113°F / -15 to 45°C |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | 1 x Power Cable 1 x Filter |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 17.2 x 11.3 x 5.8" / 43.7 x 28.7 x 14.7 cm |
| Weight | 21 lb / 9.5 kg |
