Elation Professional PM-DMX1 Overview

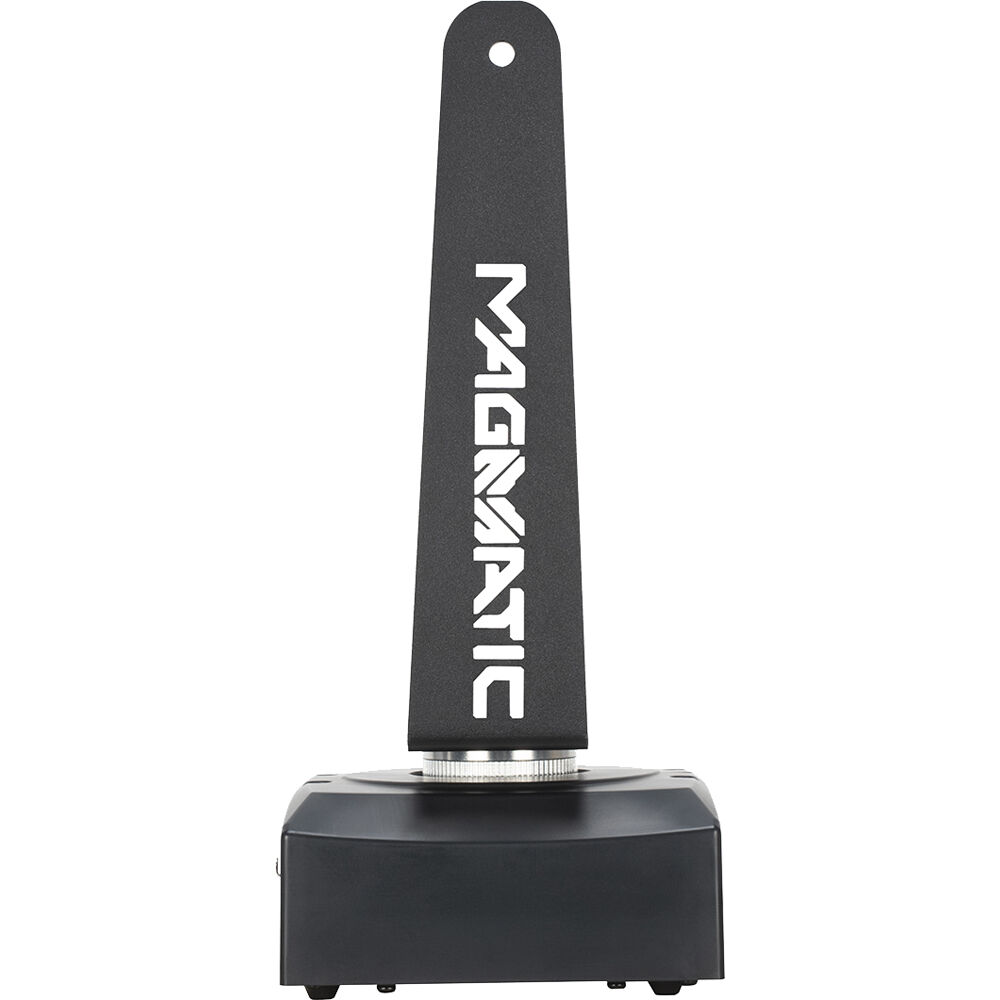

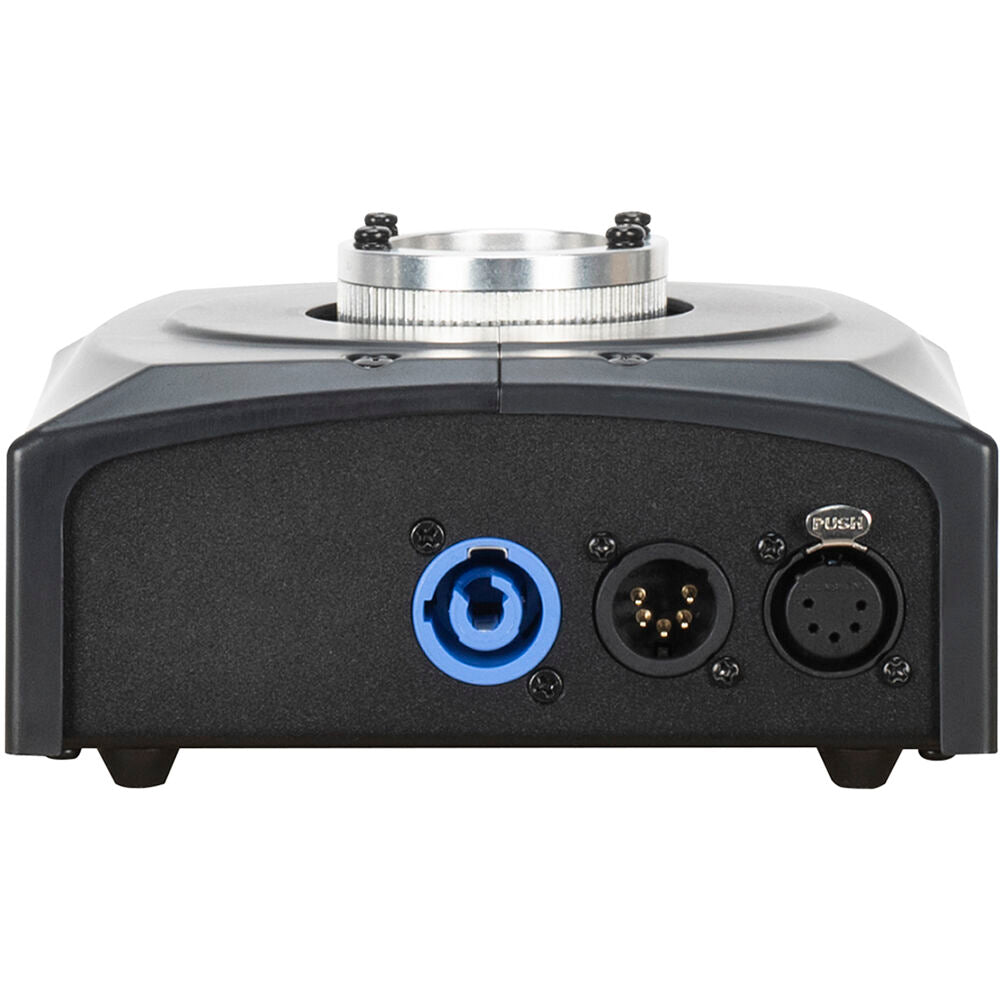

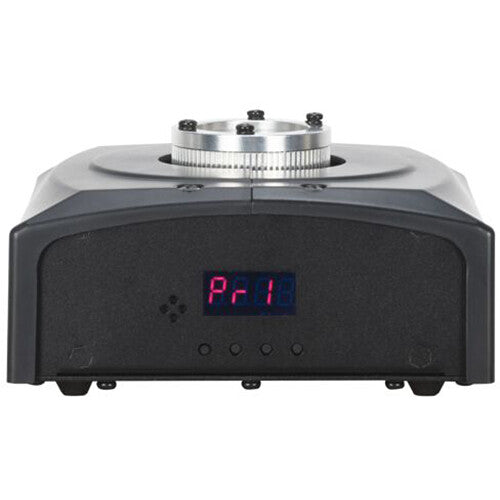

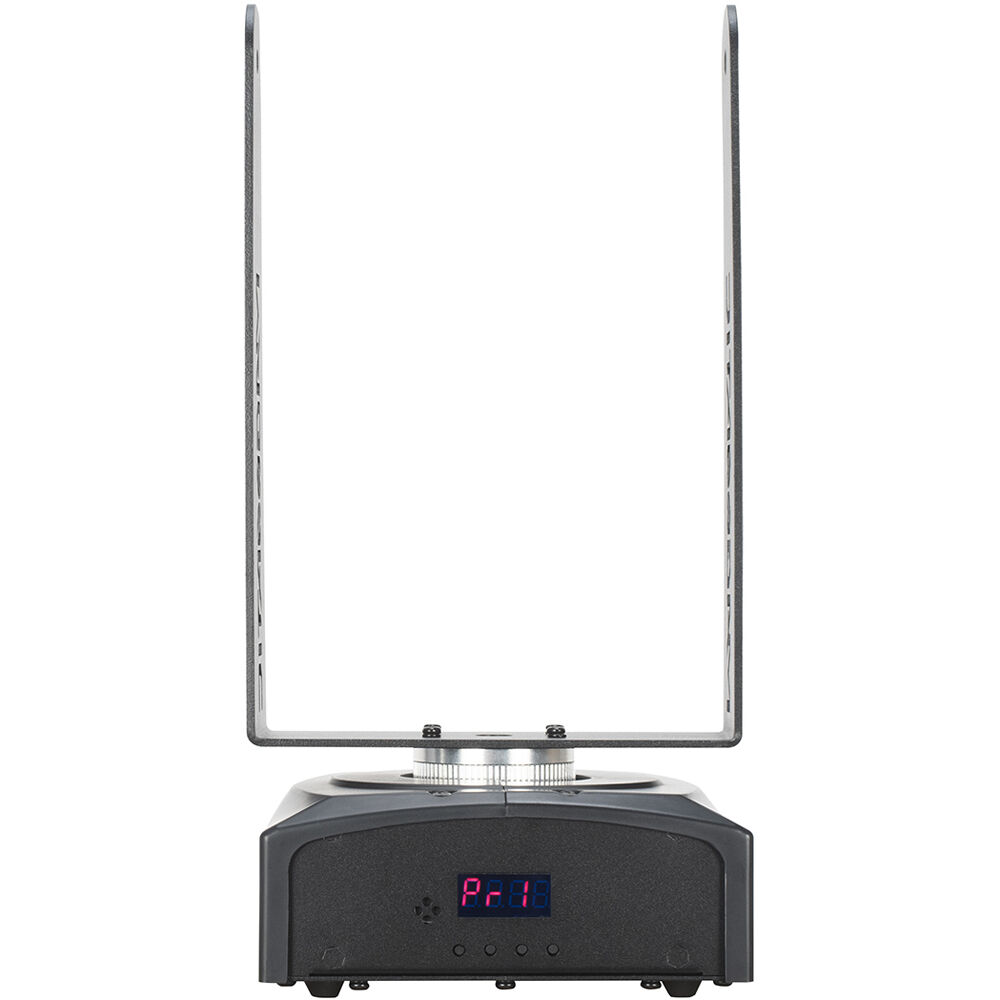

The Magmatic PM-DMX1 from Elation Professional is an optional pan motor accessory for the Magmatic Crisp Max Snow Machine. Install the output nozzle of the Crisp Max, using the included mounting bracket, onto the PM-DMX1 to precisely control 120° of pan movement via DMX-512 or manually using the 4-button LED control panel menu display on the unit. The PM-DMX1 features two DMX channel modes, 0 to 120° position index movement, three different internal auto-pan programs (60/90/120°, each having five speed settings), a pan inversion mode that inverts the pan movement, primary/secondary modes, 5-pin DMX in/out for easy control connection and linking multiple units, an included mounting bracket that better balances weight distribution of the Crisp Max nozzle unit, a mini-omega bracket for clamping or truss-mounting the PM-DMX1, and a 100 to 240V auto-switching power supply.
Elation Professional PM-DMX1 Specs
General
| Compatibility |
Elation Professional Magmatic Crisp Max |
Power
| Power Source |
AC Input (Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
15 W (Maximum) |
Physical
| Cable Length |
Not Specified by Manufacturer |
| Dimensions |
14.2 x 6.4 x 5.8" / 361.5 x 162 x 147 mm (with Bracket) |
| Weight |
5.7 lb / 2.6 kg (with Bracket) |
