Description

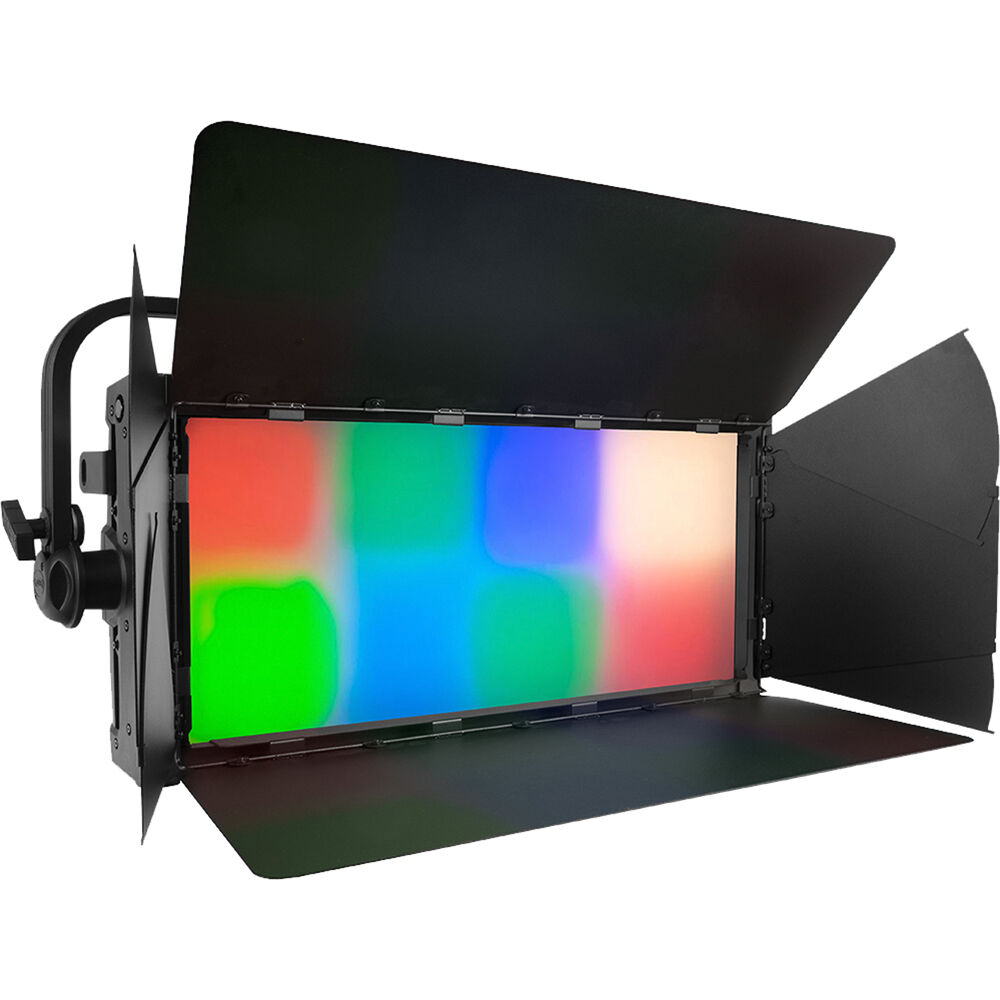

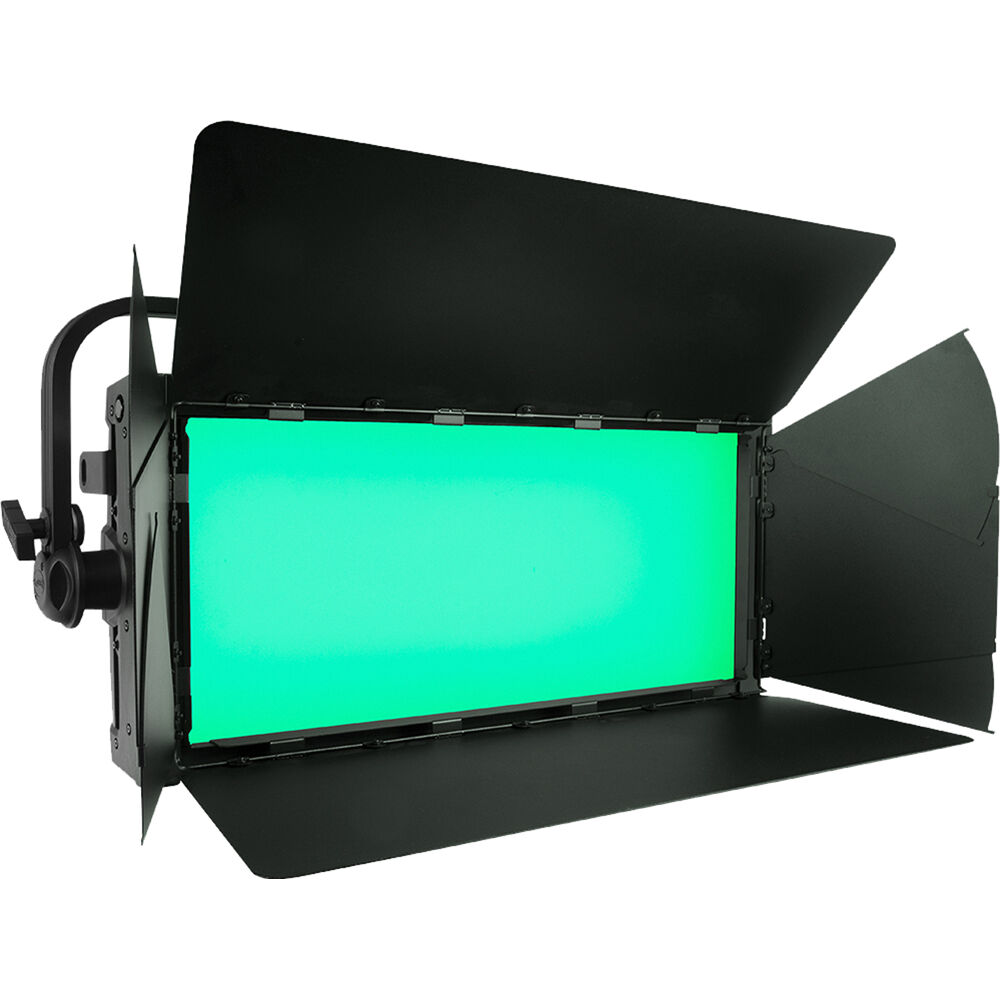

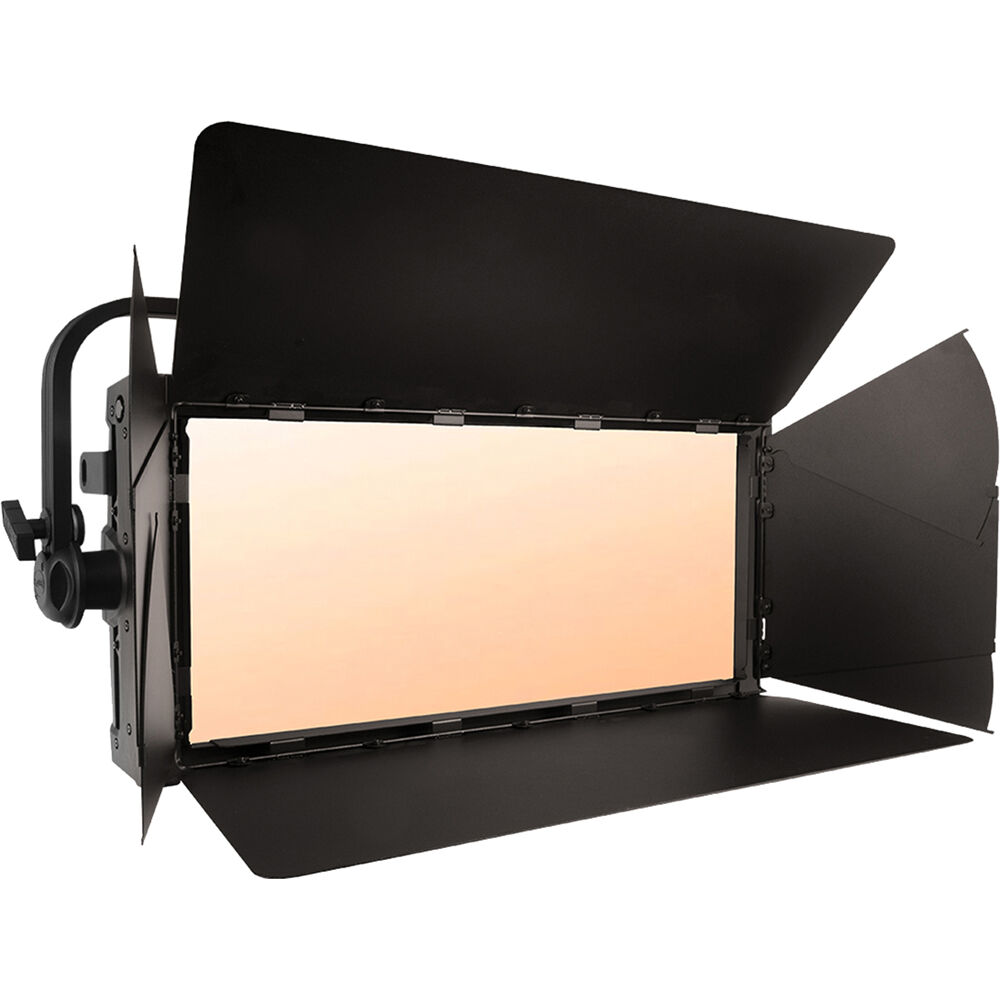

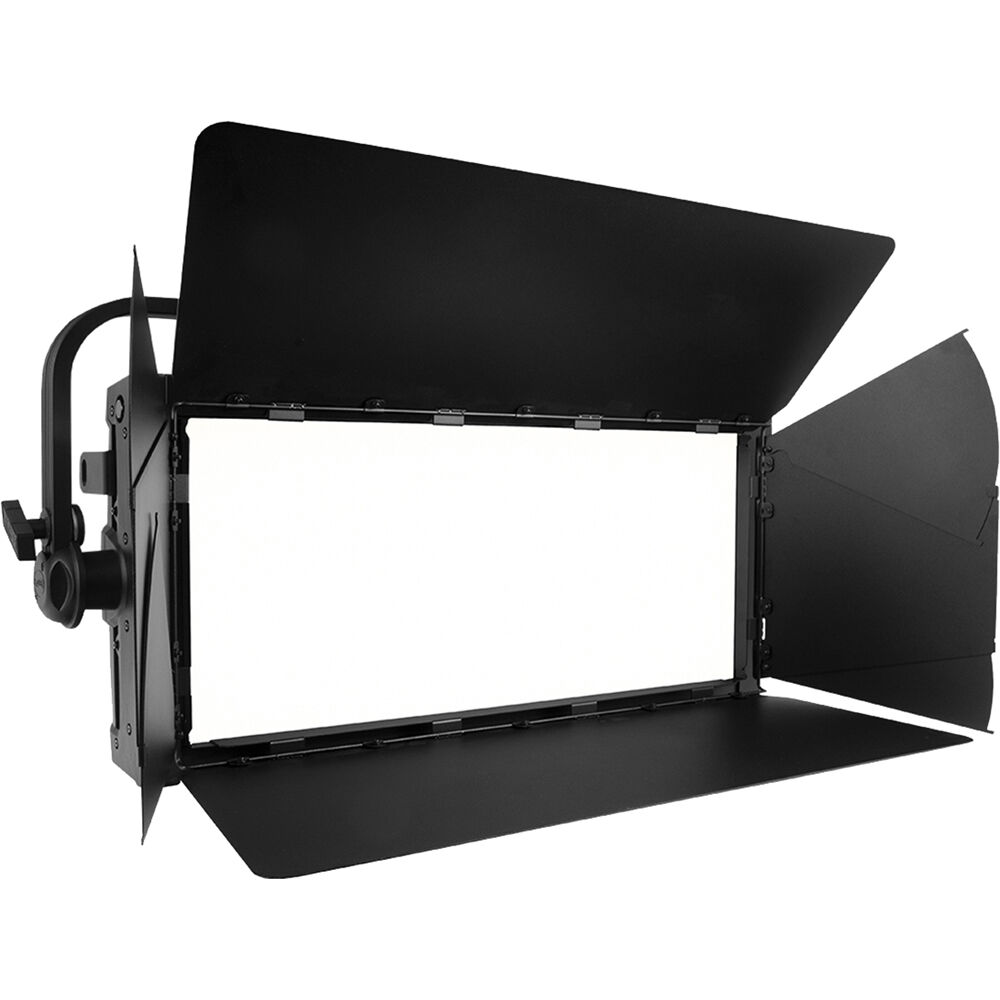

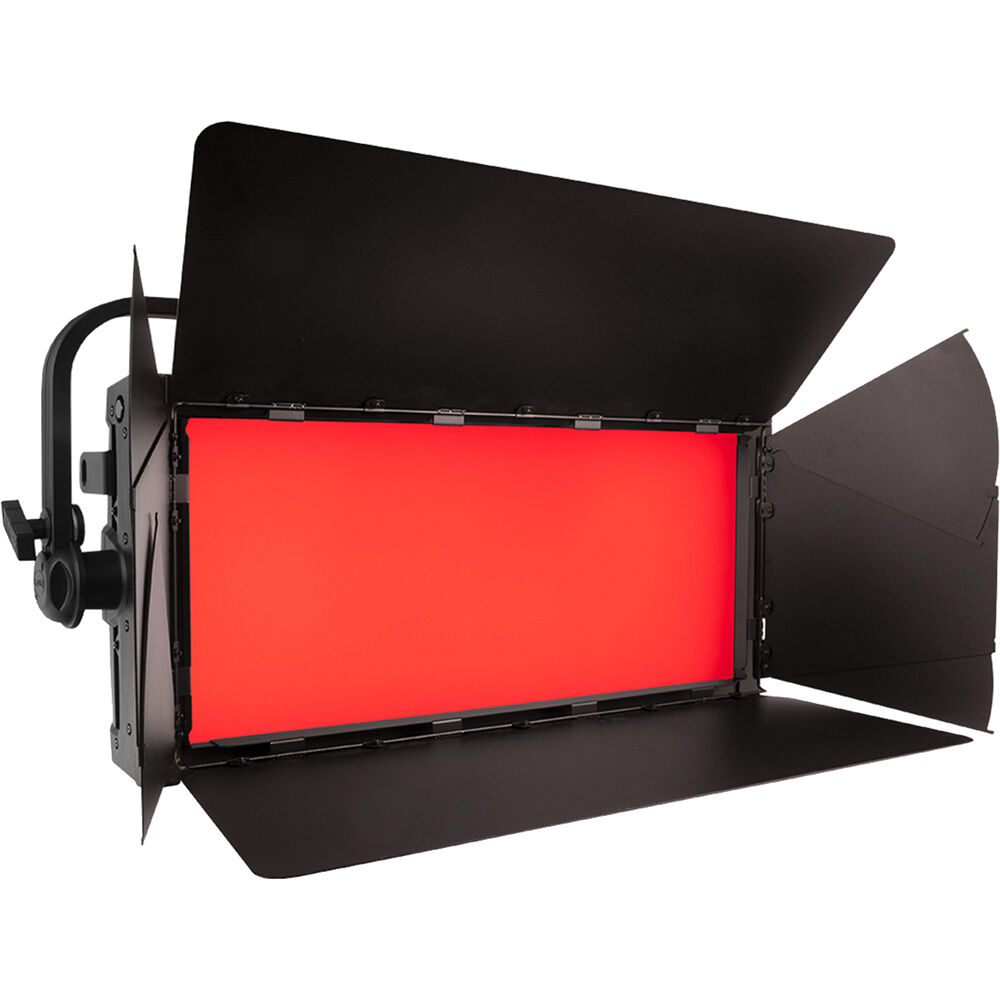

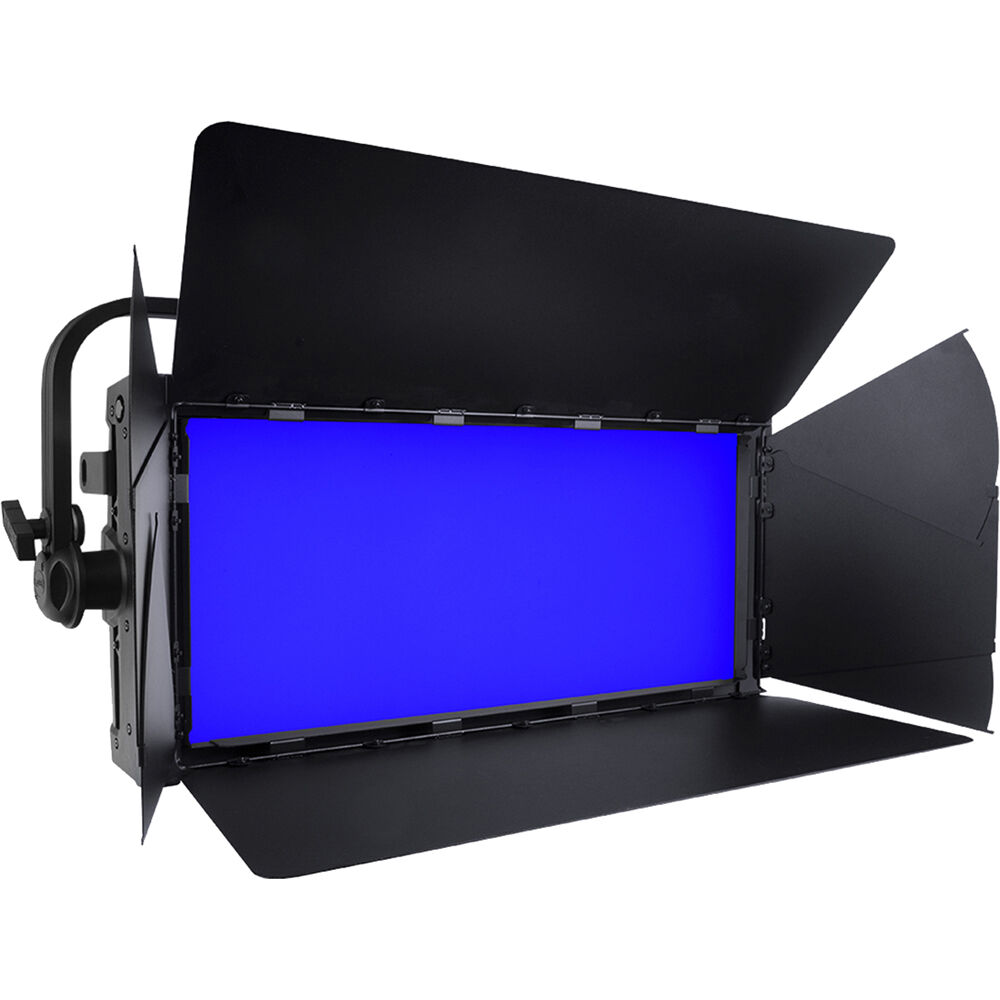

Elation Professional KL Panel XL IP Overview
IP65-rated for temporary outdoor use, providing high output, precise color temperature control, full-spectrum color rendering, and even wash coverage, the KL Panel XL IP from Elation Professional is a full color spectrum LED light fixture that has been optimized for the tunable white light requirements of film and television. An ideal key and fill source thanks to its highly efficient 6-in-1 design, it is able to output up to 40,000 lumens at a 100° peak angle.
This compact and portable fixture has been designed to endure the rough handling of today's fast-paced production sets. It can be mounted on a stand or suspended using a standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply. It can be remotely powered through its integrated 4-pin XLR 24-36 VDC battery input. The KL Panel can be operated through industry-standard DMX, Art-NET, or sACN protocols as well as Elation's proprietary wireless system. Adjustments are made manually using the included encoders and OLED display, providing instant control of intensity, color temperature, green shift, and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access when the KL Panel is mounted on a stand. The integration of Elation's E-FLY wireless system allows for even more flexibility of use.
- Measures 33.1 x 14.4 x 6.7" and weighs 45.6 lb
- 6-in-1 (Red, Green, Blue, White, Lime, Cyan) full spectrum LED array
- Average LED life: 50,000 hours
- 570W RGBWLC
- CRI 95, CCT adjustment from 2000 to 10,000K
- Internal power supply with power pass-through
- DMX/RDM, Art-Net, and sACN protocol support
- Internal extended range wireless DMX transceiver
- Stand-alone control with 3 encoders and OLED display
- Barndoors, diffuser, and Junior pin
In the Box
- Elation Professional KL Panel XL IP (IP65-Rated)
- Barndoors
- Diffuser
- Junior Pin
- Limited 3-Year Manufacturer Warranty
Elation Professional KL Panel XL IP Specs
| Item Type | 1 x LED Array LED Light Panel |
| Included Light Modifier | 1 x Barndoors |
| Included Filters | Diffusion |
| Included Storage Case | None |
| Lumens | 40,000 |
| Photometrics | Not Specified by Manufacturer |
| Color Temperature | 2000 to 10,000K |
| Color Modes | RGB |
| Color Accuracy Standard | CRI 95 |
| Cooling System | Fan |
| Dimming | Yes, Built-In Dimmer |
| Expected Lamp Life | 50,000 Hours |
| Built-In Flash | No |
| Umbrella Mount | No |
| Wireless Remote Control Type | Wireless DMX (E-FLY) |
| Mobile App Compatible | *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Max DMX Control Channels | 96 |
| Power Source | AC Power (Cable Included) |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x powerCON TRUE1 AC Power Input (100 to 240 VAC, 50 / 60 Hz) 1 x USB-A Power/Service Input/Output (5 VDC) 1 x XLR 4-Pin Battery Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 24 to 36 VDC |
| Included Adapter / Cable | 1 x Edison Plug to powerCON TRUE1 Cable |
| Inline Switch | No |
| Power Pass-Thru | Yes |
| Power Consumption | 570 W |
| Yoke Type | Manually-Operated Yoke |
| Fixture Mounting | Support Mount 1 x 1-1/8" Stud (Via Yoke Mount) |
| Environmental Protection | Advertised as Dust Resistant/Spray-Proof *Manufacturer Testing: IP65 |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Display | OLED |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 33.1 x 14.4 x 6.7" / 84.1 x 36.6 x 17 cm |
| Weight | 45.6 lb / 20.7 kg |
