Description
Elation Professional KL Panel XL Overview
Providing high output, precise color temperature control, full-spectrum color rendering, and even wash coverage, the KL Panel XL from Elation Professional is a full color spectrum LED light fixture that has been optimized for the tunable white light requirements of film and television. An ideal key and fill source thanks to its highly efficient 6-in-1 design, it is able to output up to 44,000 lumens at a 100° peak angle.
This compact and portable fixture has been designed to endure the rough handling of today's fast-paced production sets. It can be mounted on a stand or suspended using a standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply. It can be remotely powered through its integrated 4-pin XLR 24-36 VDC battery input. The KL Panel can be operated through industry-standard DMX, Art-NET, or sACN protocols as well as Elation's proprietary wireless system. Adjustments are made manually using the included encoders and OLED display, providing instant control of intensity, color temperature, green shift, and other important settings. The display and encoders are conveniently positioned on the bottom of the fixture to ensure easy access when the KL Panel is mounted on a stand. The integration of Elation's E-FLY wireless system allows for even more flexibility of use.
- Measures 30.1 x 12.05 x 6.1" and weighs 37.9 lb
- 6-in-1 (Red, Green, Blue, White, Lime, Cyan) full spectrum LED array
- Average LED life: 50,000 hours
- 544W RGBWLC
- CRI 95, CCT adjustment from 2000 to 10,000K
- Internal power supply with power pass-through
- DMX/RDM, Art-Net, and sACN protocol support
- Internal extended range wireless DMX transceiver

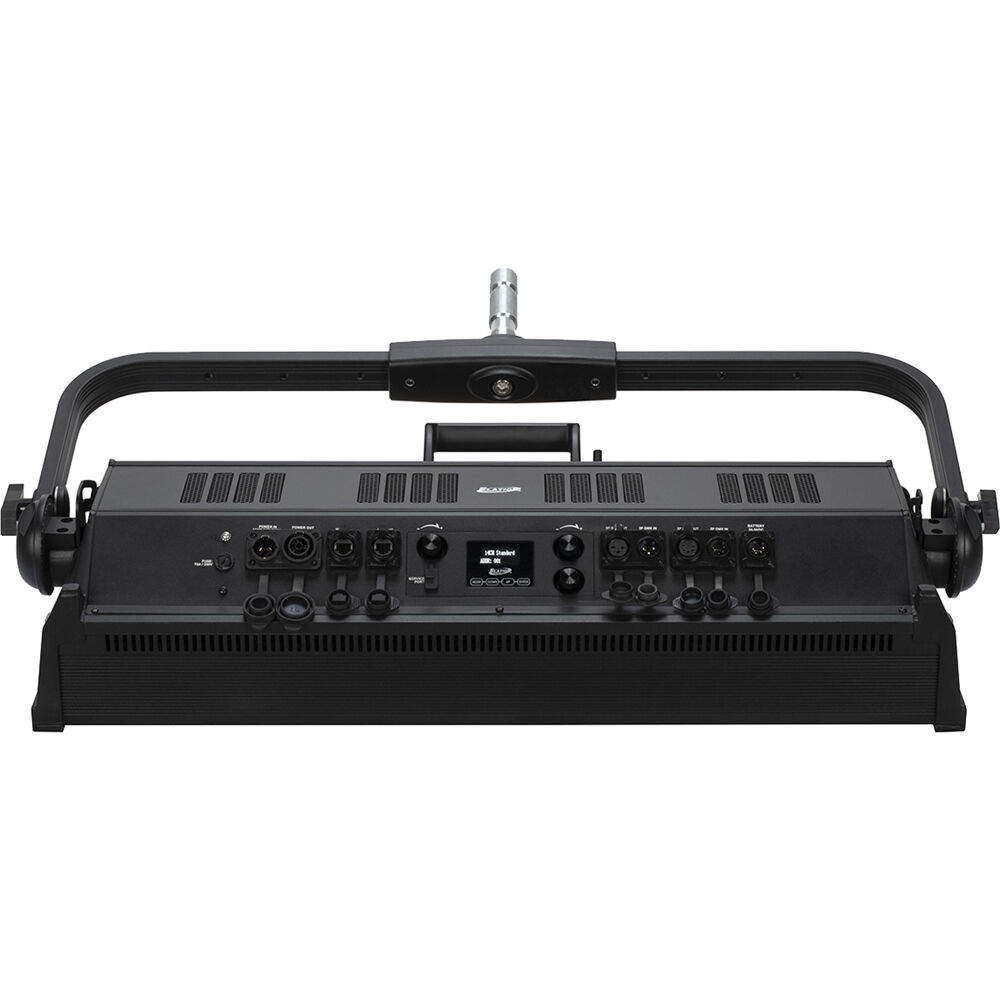

- Stand-alone control with 3 encoders and OLED display
- Barndoors, diffuser, and Junior pin
In the Box
- Elation Professional KL Panel XL
- Barndoors
- Diffuser
- Junior Pin
Elation Professional KL Panel XL Specs
| Lumens | 44,000 (in RGB Mode at 2700K) |
| Photometrics | 114° at 3200K 1057 fc / 11,383 Lux at 3.3' / 1 m* 117 fc / 1265 Lux at 9.8' / 3 m 42 fc / 455 Lux at 16.4' / 5 m 116° at 5600K 1228 fc / 13,222 Lux at 3.3' / 1 m* 136 fc / 1469 Lux at 9.8' / 3 m 49 fc / 529 Lux at 16.4' / 5 m *Standardized Measurement Supplied by the Manufacturer |
| Color Temperature | 2000 to 10,000K |
| Color Accuracy Standard | CRI 95 |
| Max DMX Control Channels | 12 |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 24 to 36 VDC |
| Power Pass-Thru | Yes |
| Power Consumption | 544 W (Maximum) |
| IP Rating | IP20 |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Display | OLED |
| Certifications | CE, cETLus *as per Manufacturer |
