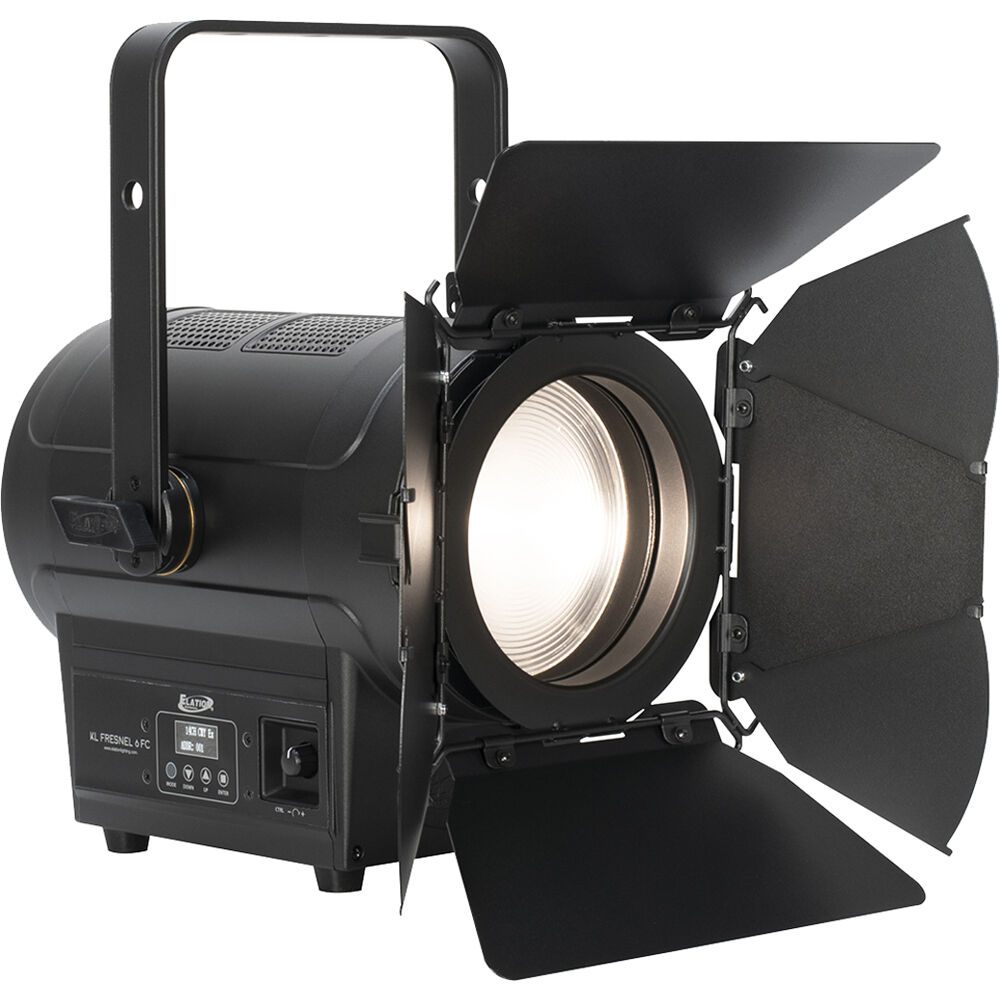

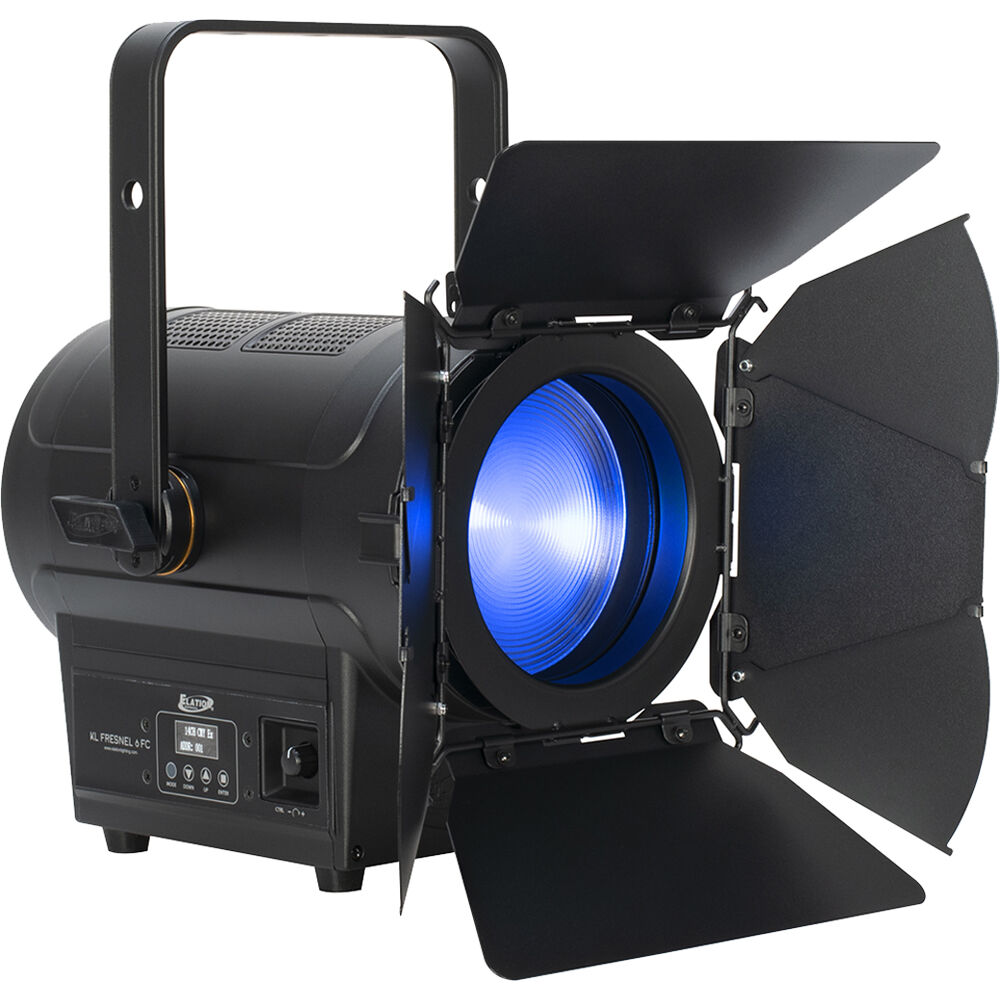

Elation Professional KL Fresnel 6 FC RGBMA LED Fresnel Light

The LED array within the KL Fresnel 6 FC combines five color LEDs (red, green, blue, mint green, amber) for a wide range of adjustable hues to match any atmosphere. Precise CCT presets are available thanks to the amber light engines that accurately simulate natural light. The back of the unit features DMX I/O via both 3- and 5-pin XLR to integrate into your pre-existing setup, enabling full control of the powerful LED engines. 8,000 lumens of field brightness and adjustable zoom ensures these dynamic colors reach every inch of the dance floor or film set.

This 220W fixture is professional-grade and durable yet is easily prepared and transported from location to location. Both DMX and power can be linked to additional fixtures in your setup while the local settings display, and encoders are conveniently located for unobstructed access.

Elation Professional KL Fresnel 6 FC Specs

Average Life Hours	50,000 hours
Maximum Power Consumption	220 W
Brightness	8000 Lumens
CRI	92.2
Color Modes	RGBMA Color Array CMY Emulation Variable CCT 2400-8500K Green/Magenta Shift Virtual Gel Swatches
Dimming	Variable 16-Bit Electronic Dimming and Strobe
Focus/Zoom Adjusting	10-32° Manual Zoom Range
Beam Angle	Beam Angle: 9.7-32.2° Field Angle: 18.7-49.3°
DMX Channels	6 DMX Channel Modes (1-18 Channels)
Input and Output Connectors	1 x DMX In via 5-Pin XLR 1 x DMX Out via 5-Pin XLR 1 x DMX In via 3-Pin XLR 1 x DMX Out via 3-Pin XLR 1 x IP65 Locking Power Input 1 x IP65 Locking Power Output
Control Protocol	DMX / RDM Encoder Control for Standalone Operation
Touch Screen	LED Screen with Four Button Menu Operation
AC Power	100-240V (50/60 Hz)
Operating Temperature	5-113°F / -15-45°C
IP Rating	IP20
Approvals	CE cETLus
Length	13.5" / 344 mm
Width	11" / 280 mm
Height	23" / 584 mm
Weight	18.5 lbs / 8.4 kg
