Description

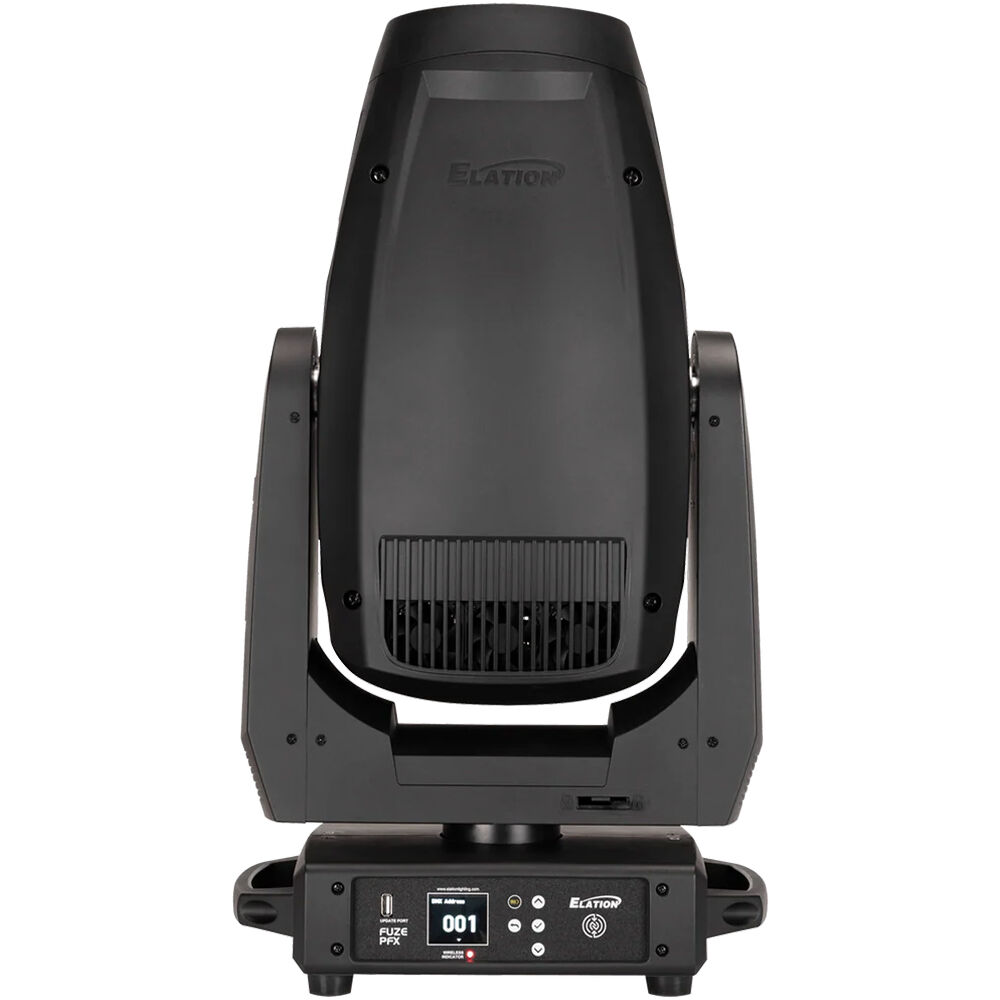

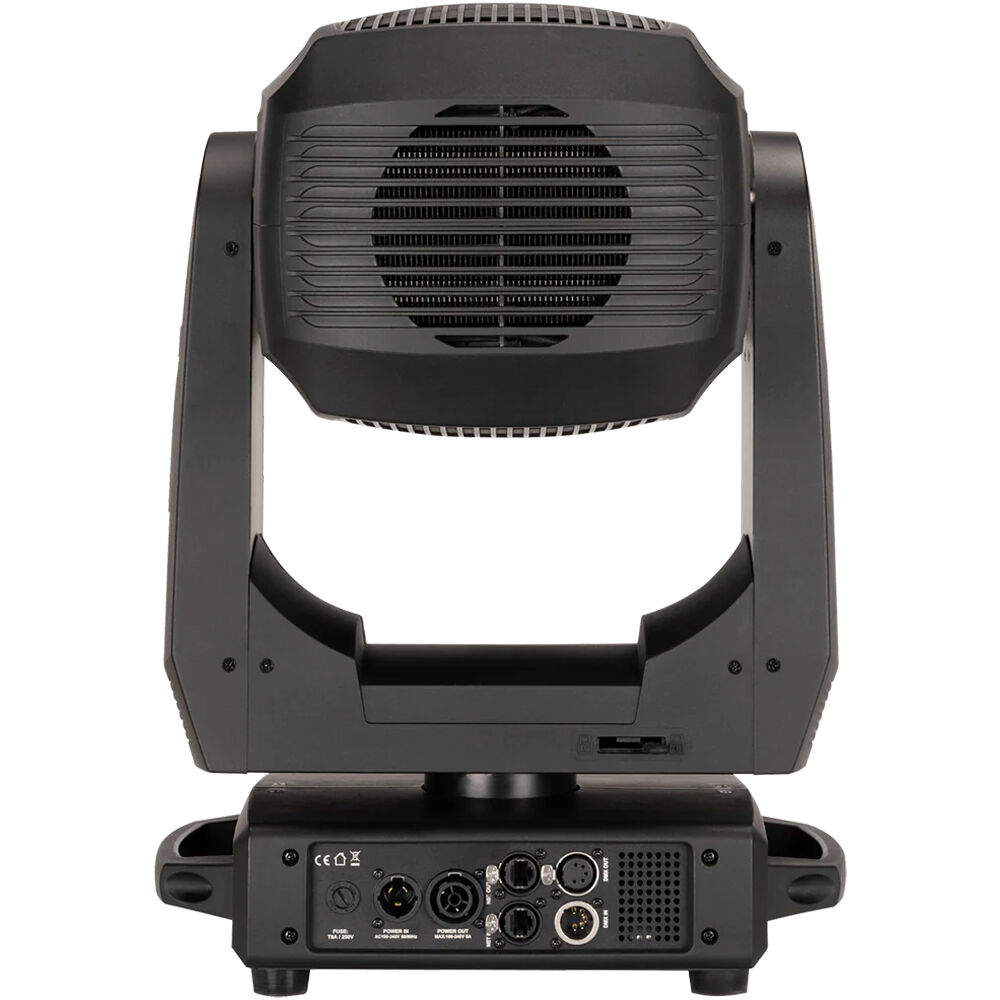

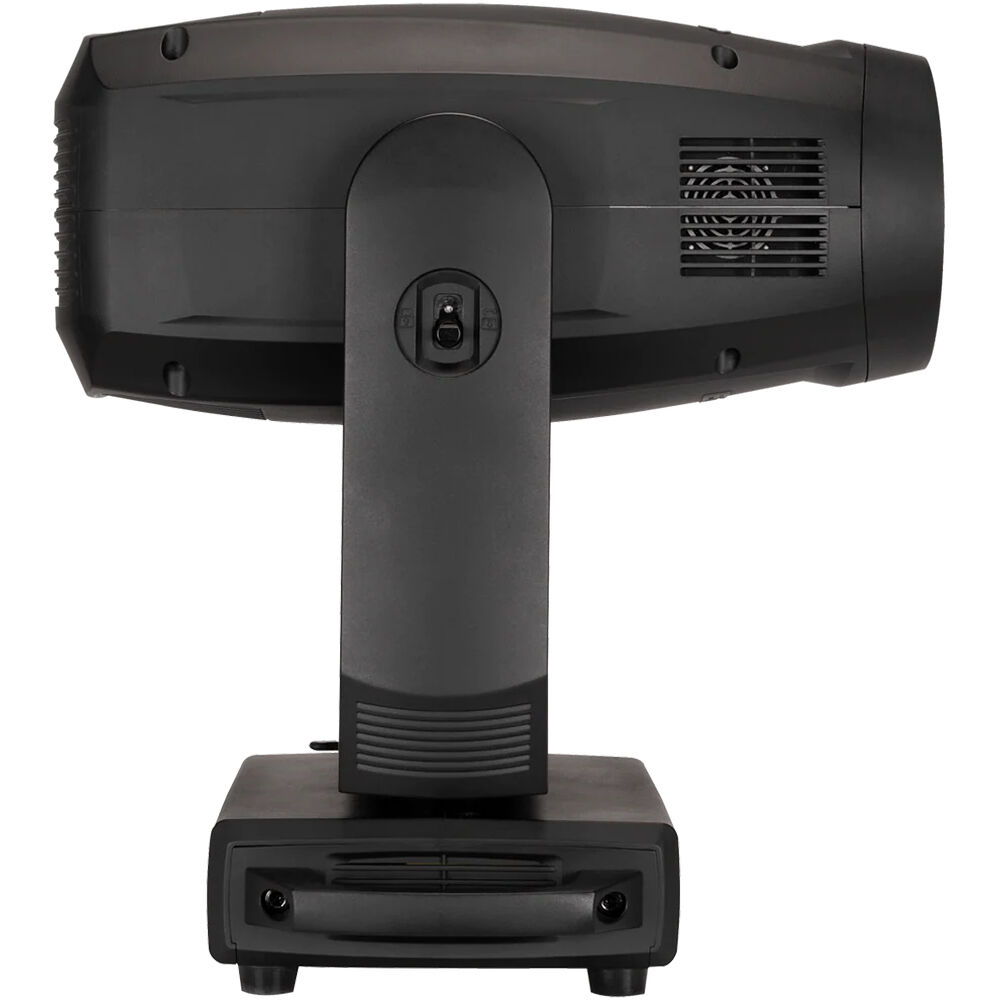

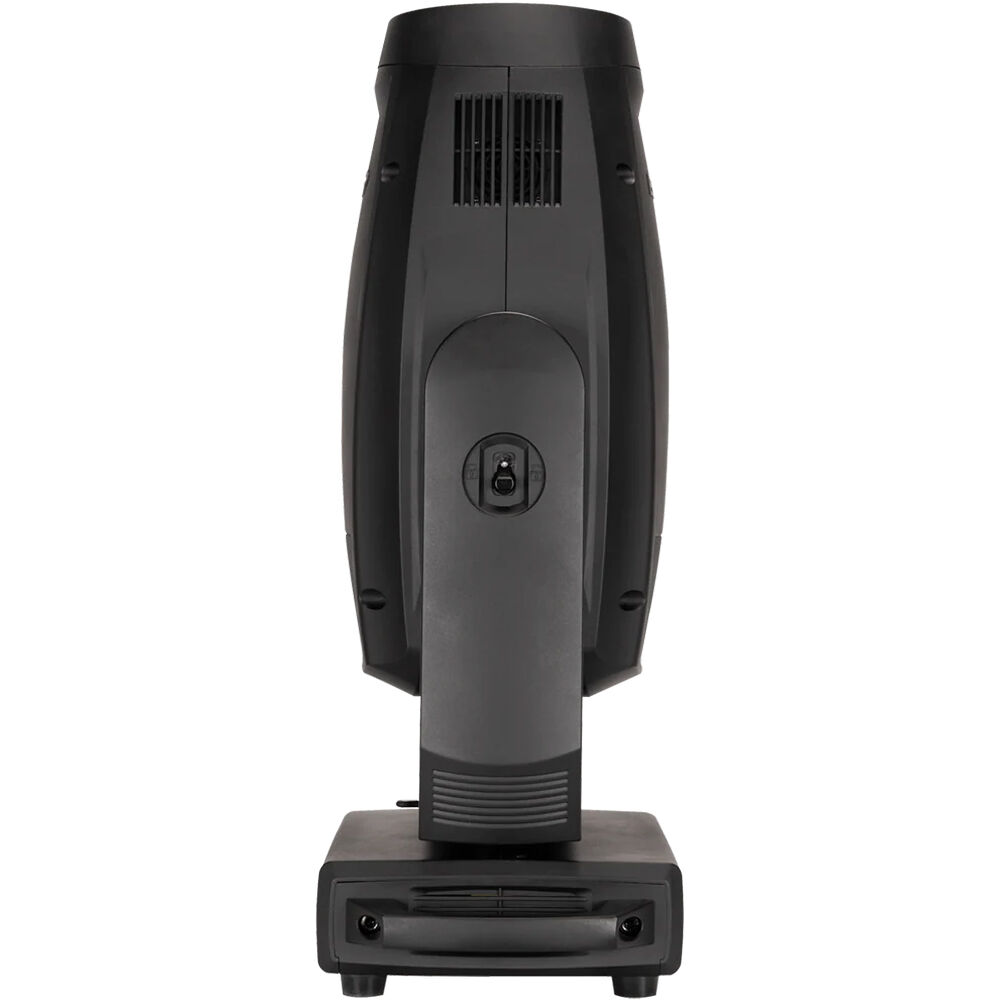

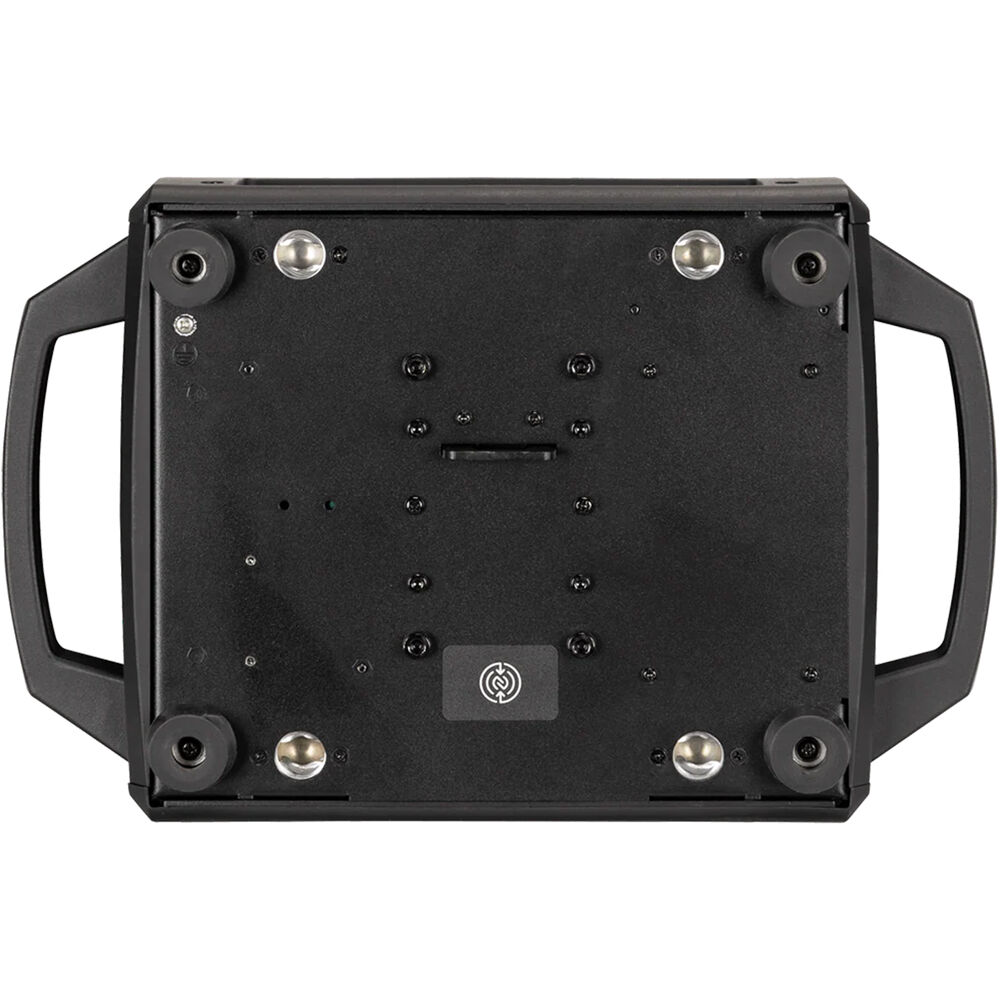

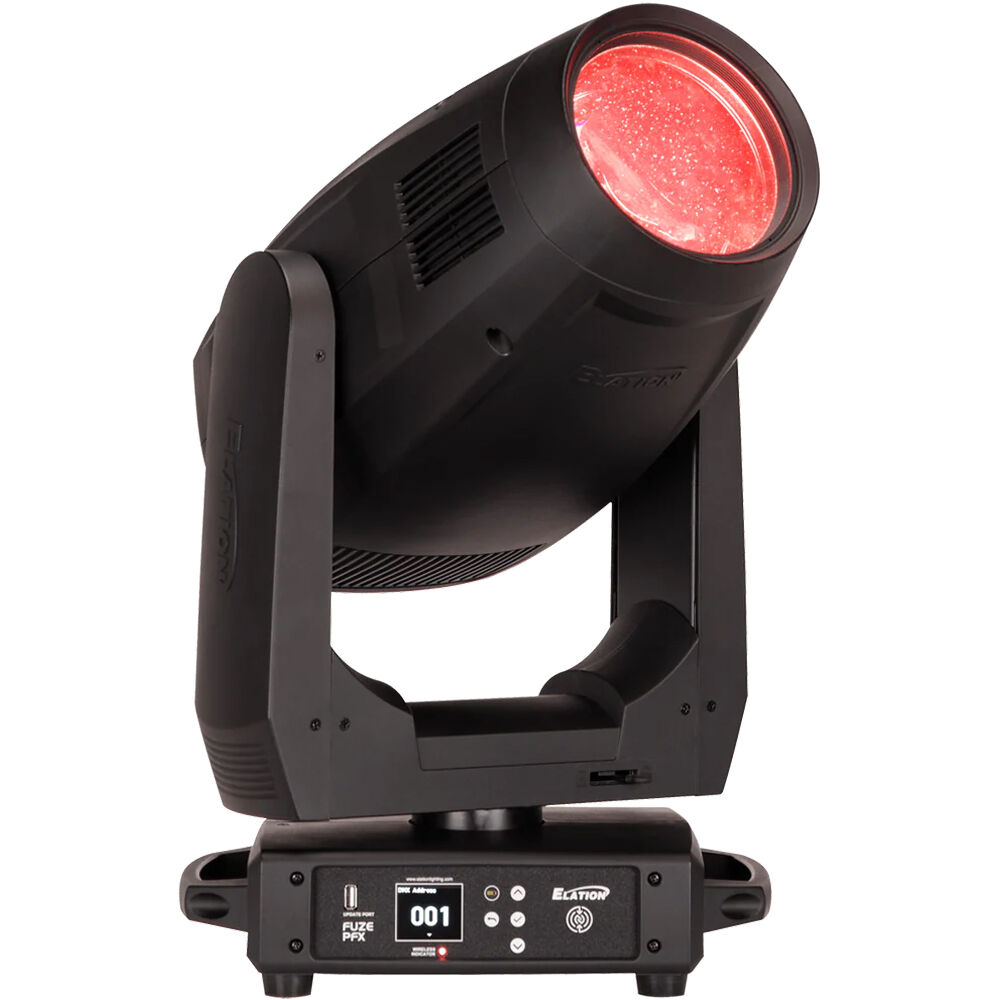

Elation Professional PFX Overview
Designed to produce precise projections, the Elation Professional FUZE PFX is a compact and powerful moving head multi-purpose luminaire that produces wash and beam lighting for exceptional versatility. Built with a high efficiency 6600K 400W white LED light engine and a total range of 3 to 53? zoom angles, the fixture produces a powerful output of 15,000 lumens for illuminating a variety production applications.
Full blackout framing blades allow shaping of the beam to highlight precise areas on the stage, and function as a creative mid-air effect as well. Users can adjust the 16-bit variable dimming modes, CMY color mixing, and dual frost effects with its simple control options, including Art-Net, sACN, RDM, and DMX. With its motorized zoom, the FUZE PFX creates unique lighting visuals for live events. Operable in any orientation, the fixture is easily mountable with its included two Omega brackets and stainless steel safety wire.
- 400W white LED engine 6600k
- 15,000 total lumen fixture output
- Framing and effects fixture
- Zoom range from 3 to 53?
- Variable CMY, CTO and 8-position color wheel
- Dual high CRI filters
- 7 rotating and 11 fixed gobos
- Dual independent prisms for layering
- Motorized iris
- Soft and wash frost filters
Items Included
- Elation Professional FUZE PFX Professional 400W LED Profile FX Moving Head with CMY (White)
- 2 x Omega Bracket
- IP65-Rated Locking Power Cable
- Stainless Steel Safety Wire
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Elation Professional PFX Specs
| Fixture Type |
Moving Head
|
| Light Source |
1x White LED - 400 W
|
| Colors |
Blue, CTO (Color Temperature Orange), Cyan, Green, HCRI (High CRI), Magenta, Red, Ultraviolet, Yellow
|
| Beam Angle |
3 to 53?
|
| Control Protocols |
DMX512, RDM, Aria X2, Art-Net, sACN
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| Power / Current Consumption |
600 W (Max)
|
| Mounting |
Floor Base, Omega Bracket
|
| Fixture Type |
Moving Head
|
| Light Source |
1x White LED - 400 W
|
| Expected Lamp Life |
20,000 Hours
|
| Colors |
Blue, CTO (Color Temperature Orange), Cyan, Green, HCRI (High CRI), Magenta, Red, Ultraviolet, Yellow
|
| Color Temperature |
6600K
|
| Lumen Output |
15,000 Lumens
|
| Beam Angle |
3 to 53?
|
| Shutter / Strobe |
Electronic
|
| Iris |
Yes
|
| Focus |
Motorized
|
| Zoom Adjustment |
Motorized, 3 to 53?
|
| Dimming |
16-Bit Electronic, 0 to 100%
|
| Prism |
6-Facet Circular
6-Facet Linear |
| Operating Modes |
DMX
|
| Gobos |
7x Removable Glass Gobo
11x Fixed Metal Gobo |
| Gobo Size |
Glass Gobo:
Outer Diameter: 0.6" / 16.5 mm Max Image Size: 0.5" / 12.5 mm Max Thickness: 0.04" / 1 mm |
| Color Accuracy Index |
CRI: 72
HCRI: 80 HCRI: 90 |
| Refresh Rate |
900 Hz to 25 kHz (Adjustable)
|
| Tilt Ranges |
270?
|
| Pan Ranges |
540?
|
| Control Protocols |
DMX512, RDM, Aria X2, Art-Net, sACN
|
| DMX Channel Modes |
2 Mode(s):
38 / 55-Channel |
| Remote Control |
Yes
|
| Mobile App Compatible |
No
|
| Inputs/Outputs |
1 x XLR 5-Pin DMX Input
1 x XLR 5-Pin DMX Output 1 x etherCON/RJ45 Network Input 1 x etherCON/RJ45 Network Output |
| Wireless |
Proprietary Wireless
|
| AC Input Power |
100 to 240 VAC, 50/60 Hz
|
| AC Power Connector |
Input: 1x Seetronic IP-Rated
Output: 1x Seetronic IP-Rated |
| Fuse |
T 8 A 250 V
|
| Power / Current Consumption |
600 W (Max)
|
| Environmental Resistance |
Dust-Resistant (IP20)
|
| Operating Conditions |
14 to 113?F / -10 to 45?C
|
| Mounting |
Floor Base, Omega Bracket
|
| Included Accessories |
1x Power Cable
|
| Duty Cycle |
No
|
| Exterior Color |
Black
|
| Cooling |
Fan
|
| Certifications |
CE, FCC, UKCA, cETLus
|
| Dimensions |
25.14 x 14.3 x 9.2" / 63.86 x 36.3 x 23.4 cm
|
| Weight |
50 lb / 22.7 kg
|
