Description
ELAC UCR52 Overview
- 1Description
- 2New Concentric Driver with Cast Chassis
- 3Newly Developed 5.25" Aluminum Woofer with Cast Chassis
- 4Full-Perimeter Bracing
- 5Dual-Flared Slot Vents
The All New Uni-Fi Reference
Enhance the dialogue of your favorite movies and TV shows with the satin white with oak sides ELAC Uni-Fi Reference UCR52 3-Way Center Channel Speaker. When paired with your amplifier or receiver, it outputs mainly the dialogue of your content, while the rest of your speakers create the majority of the ambient sound effects. It accepts up to 140W of power and features a 47 Hz to 35 kHz frequency response for crisp highs. The speaker consists of a 1" soft-dome tweeter concentrically mounted with a 4" aluminum cone midrange driver, and two 5.25" aluminum cone woofers. Two front-facing flared bass ports also provide enhanced low-frequency reproduction.
New Concentric Driver with Cast Chassis
A wide-surround tweeter enhances its low and high-frequency extension, allowing for improved blending with the midrange. An entirely new midrange driver with a large-diameter voice coil, vented rear spider, and new neodymium magnet allows for better excursion and control of midrange frequencies. A new cast chassis was designed to minimize reflections back to the cone, resulting in better clarity.
Newly Developed 5.25" Aluminum Woofer with Cast Chassis
Drastically improving low-end reproduction, this newly developed bass driver features a single-piece, compound curvature, aluminum cone with a large rear vented magnet delivering improved linearity and better low-frequency response of any previous Uni-Fi center speaker.
Full-Perimeter Bracing
Reducing the speaker cabinets' influence on audio quality, the Uni-Fi Reference line implements full-perimeter bracing, significantly reducing cabinet vibration and cabinet coloration. The cabinet is made from CARB2-rated MDF.
Dual-Flared Slot Vents
The newly developed slot vents utilize both internal and external flares, allowing for lower noise and high bass output for improved low frequency dynamics.
UPC: 850008944796
In the Box
- ELAC Uni-Fi Reference UCR52 3-Way Center Channel Speaker (Satin White with Oak Sides)

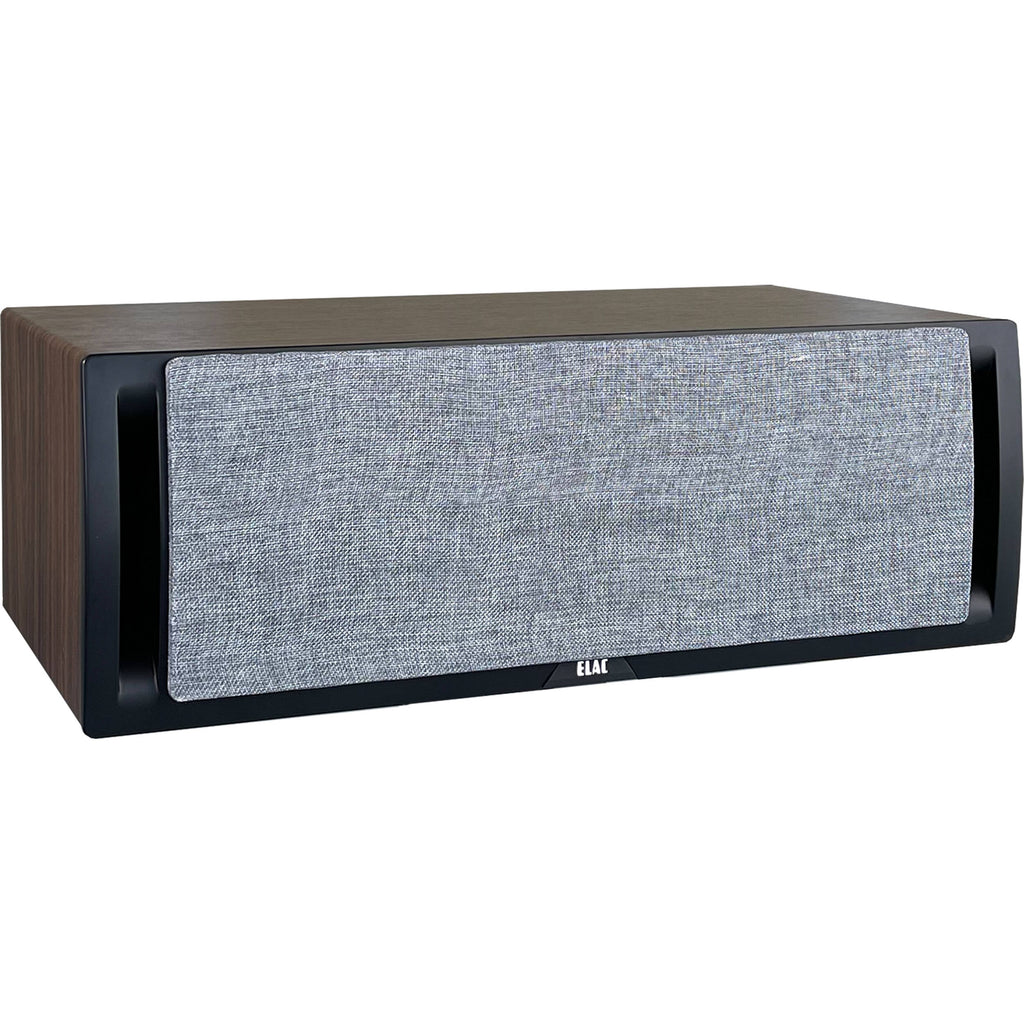

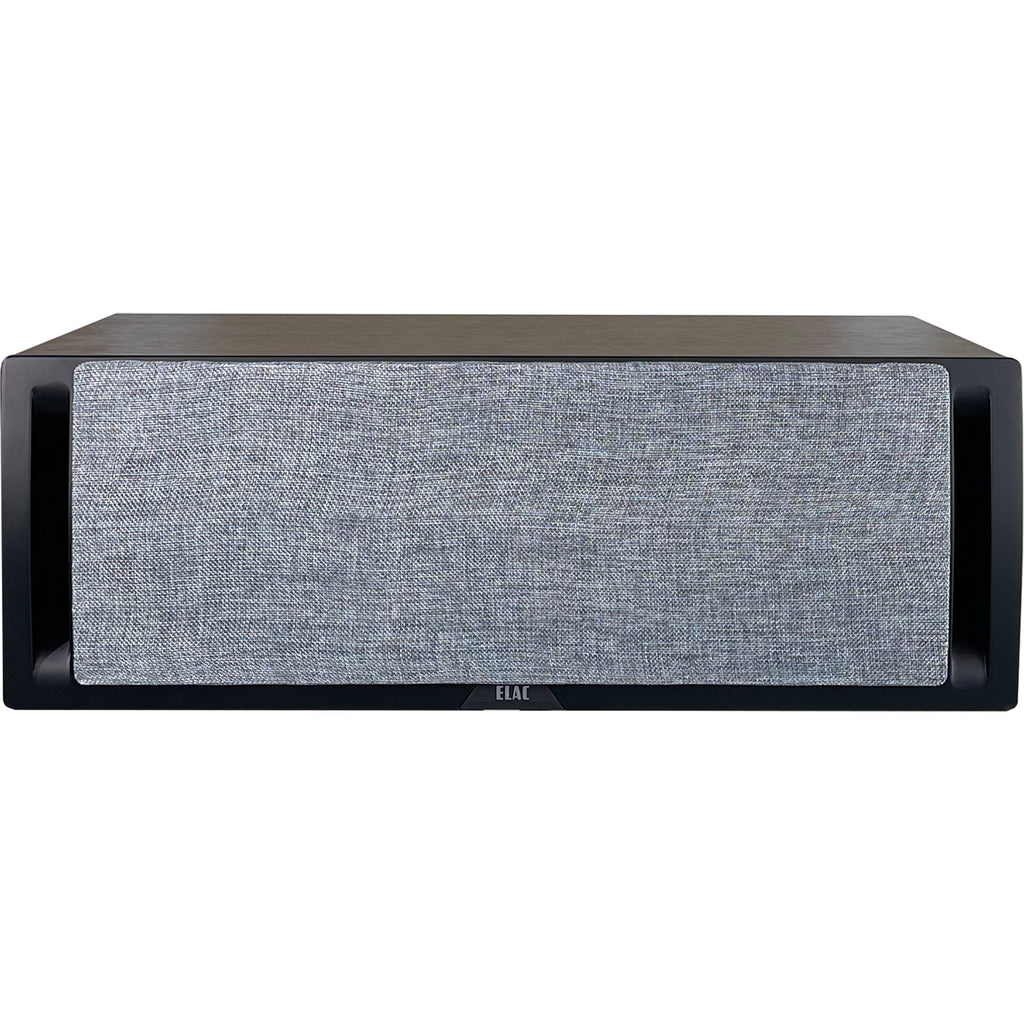

- Removable Grille
- Limited 3-Year Warranty
Table of Contents
- Description
- New Concentric Driver with Cast Chassis
- Newly Developed 5.25" Aluminum Woofer with Cast Chassis
- Full-Perimeter Bracing
- Dual-Flared Slot Vents
ELAC UCR52 Specs
Speaker System
| Speaker Configuration | 3-Way |
| Power Handling | 140 W |
| Bi-Amp Capability | Yes |
| Drivers | 2 x 5.25" / 133.35 mm Aluminum Cone Woofer 1 x 4" / 101.6 mm Aluminum Concentric Cone Midrange 1 x 1" / 25.4 mm Concentric Soft-Dome Tweeter |
| Enclosure Type | Bass-Reflex |
| Ports | 2 x Front-Firing |
| Frequency Response | 47 Hz to 35 kHz |
| Impedance | 6 Ohms |
| Magnetic Shielding | None |

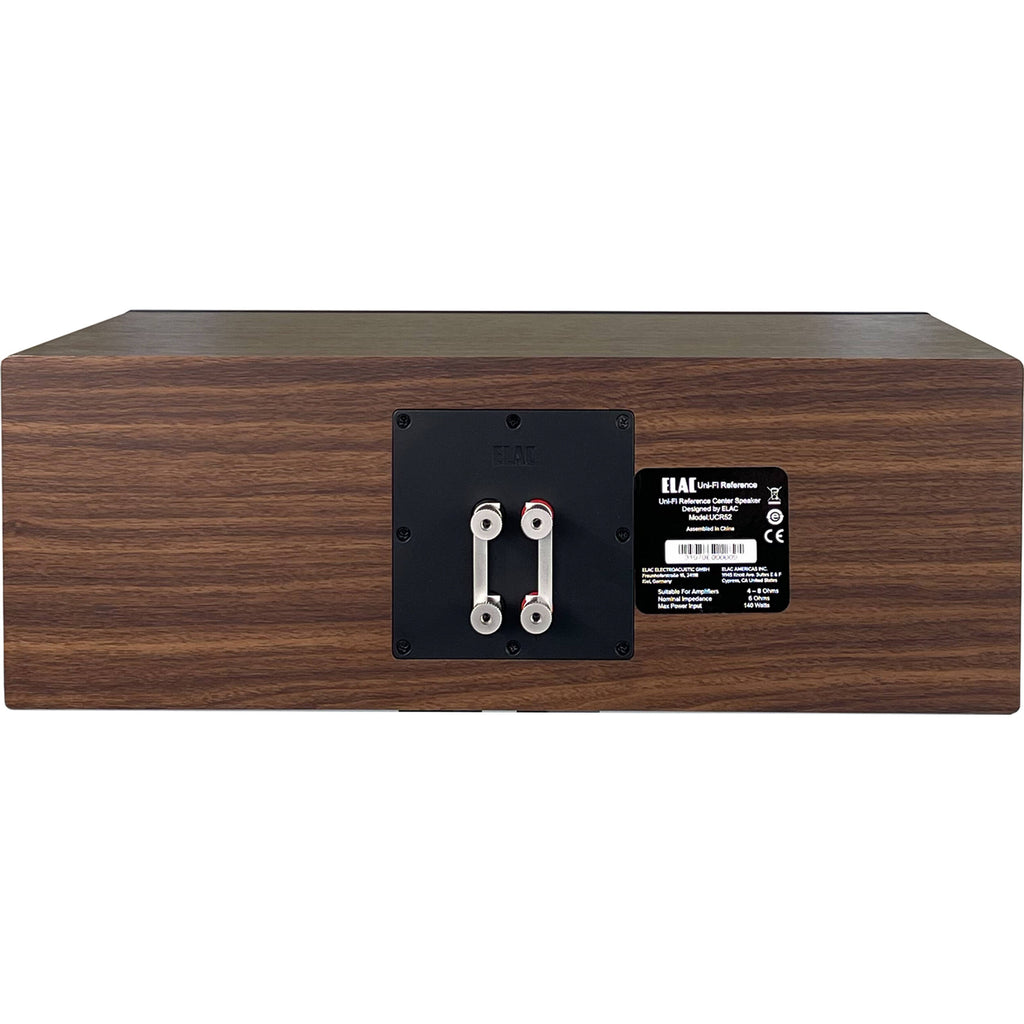

| Wired Connectivity | 2 x 5-Way Binding Post Pair Input |
| Crossover | 240 Hz 1.8 kHz |
| Sensitivity | 85 dB |
Physical
| IP Rating | None |
| Placement & Mounting Options | Tabletop/Bookshelf |
| Cabinet Material | MDF |
| Grille | Cloth (Removable) |
| Dimensions | 20.8 x 7.3 x 13.2" / 52.8 x 18.5 x 33.5 cm |
| Weight | 29.0 lb / 13.2 kg |
Packaging Info
| Package Weight | 32 lb |
| Box Dimensions (LxWxH) | 25 x 18 x 12" |
ELAC UCR52 Reviews
