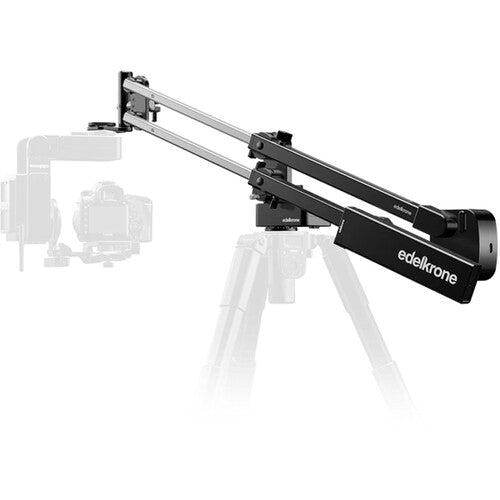

edelkrone JibONE v3 Motion Control Jib Arm

Transform any production with pan, tilt, and sweeping shots using the JibONE v3 Motion Control Jib Arm from edelkrone. The tripod-mounted JibONE v3 is a cost-effective motion solution designed for use with your DSLR, mirrorless, or video camera. The jib arm includes the pan module and is compatible with the separately available Tripod X, HeadONE, and Tripod wheels to create a full-motion rig. Controlled wirelessly via an app, you can program the rig to create loops or complex moves and utilize the new Point Tracking feature.

Create drama in every shot with sweeping, cinematic moves. JibONE's ease of use doesn't require programming or complex shot design knowledge.

The included pan module offers a strong wireless connection and a long control range. It provides simultaneous horizontal and vertical moves to create smooth, unique shots.

With the app's Point Tracking feature, you can lock the camera head onto any point while the body moves to create CGI-like tracking effects in real life. Separate buttons for body motions allow you to trigger movements without worrying about head control. You can even switch tracking between points while JibONE is in motion.

When using the HeadPLUS, the head will automatically adjust to keep the point fixed in the frame, delivering parallax results. Even while you are manually moving the system, the head remains locked.

The edelkrone app is designed to seamlessly and wirelessly control all edelkrone devices from all iOS devices. It allows you to create any type and size of closed-loop shape by using the presets and making JibONE automatically follow your programmed paths.

When you combine the Orbital Flow with Point Tracking features, you can create dramatic shots to elevate your productions.

Constructed from CNC-machined aluminum, this ultracompact jib arm supports camera rigs up to 3.8 lb with a HeadONE unit installed.

It folds down to just 23" and fits in the optional edelkrone Backpack so you can take it almost anywhere.

Create quiet, backlash-free motorized jib moves using your smartphone and the Bluetooth LE iOS and Android-compatible app, or simply operate the jib manually.

A fully wired option is available using the Link Port.

The JibONE v3 includes a dual LP-E6 battery bracket that can power the arm and pan module for your shoot. Batteries are available separately.

The JibONE v3 integrates a 5.5 lb counterweight on the end of its arm that extends backward and forward to increase or decrease the counterweight leverage, requiring less counterbalance weight.

Use the JibONE v3 with the separately available HeadONE, Pan PRO, HeadPLUS, or HeadPLUS PRO for even greater control and advanced moves with advanced tracking modes. It is also compatible with the Tripod X, a motorized self-moving, self-levelling tripod. Adding the edelkrone Tripod Wheels allows you to position the entire setup anywhere in the studio.

edelkrone JibONE v3 Specs

Compatibility

edelkrone Tripod X / HeadONE / HeadPLUS / Tripod Wheels

Wireless	Yes
Mobile App Compatible	Yes: Android & iOS

Battery Chemistry

Not Specified by Manufacturer

Color	Black
Dimensions	43 x 7.5 x 5" / 109.2 x 19.1 x 12.7 cm (Extended) 23 x 7.5 x 5" / 58.4 x 19.1 x 12.7 cm (Folded)
Weight	12 lb / 5.4 kg (without Counterweight)

Package Weight	21.72 lb
Box Dimensions (LxWxH)	27.3 x 8.6 x 6.8"
