edelkrone JibONE Motion Control Jib Tripod Attachment

Motorized Jib Attachment

1.6' Camera Travel, 360° Pan

Variable Travel 1.6' in 8 to 140 Seconds

Control with iOS or Android App

Introducing: JibONE, ONE Motion Control That Does It All Automatic Target Tracking Can be hand controlled Diagonal Motion Easy counter weight balancing Fast to set up , easy to relocate Fits in a edelkrone backpack Horizontal Motion Instant Target Learning Live Target Switching Maintains the camera angle Sequencer Feature Straight Up and Upside Down Head Timelapse Vertical Motion

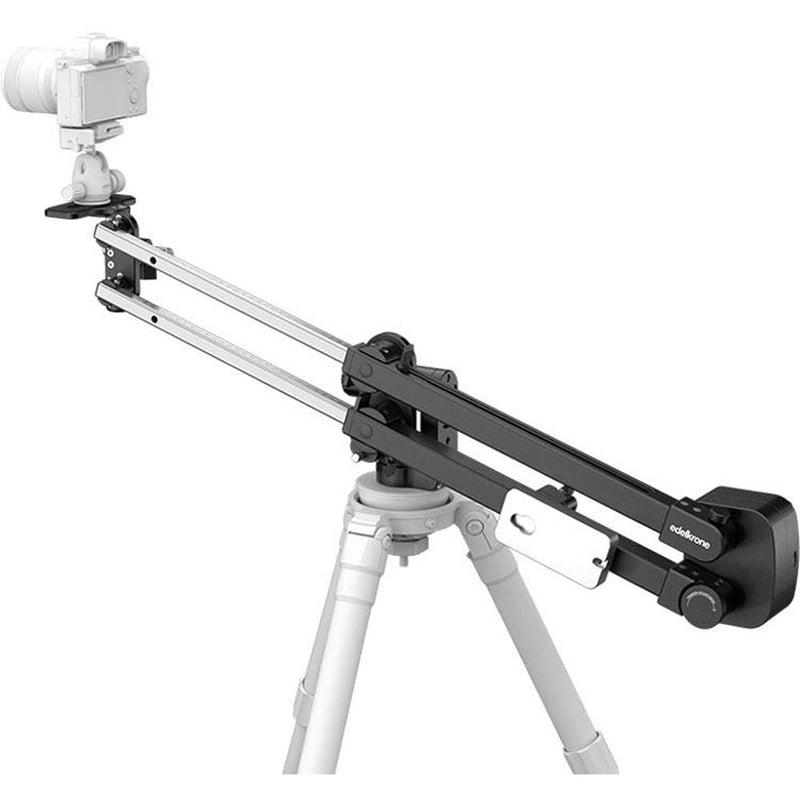

Add a jib to your production for smooth, sweeping pan, tilt, and diagonal shots using the JibONE Motion Control Jib Tripod Attachment from edelkrone . The JibONE mounts onto a tripod and provides motorized tilt and pan functions for camera rigs up to 11 lb. It is constructed from aluminum with stainless steel components, which create a strong, durable frame. Operation is virtually silent and smooth, and while it is motorized and can be controlled remotely, it can also be operated manually.

The JibONE has a quick and easy setup, mounting onto a tripod using a 3/8"-16 thread, and the camera or camera rig mounts onto the end of the arm using a 3/8"-16 screw. The jib arm measures 2' long when folded, and provides 1.6' of camera travel when in motion. Four 2.2 lb counterweights are included to balance heavier rigs, and they can be added one by one to accommodate different rig sizes.

The motor allows the camera to travel 1.6' at variable speeds between 8 and 140 seconds per second, controlled by the smartphone app. The JibONE app connects to the jib via Bluetooth and allows you to control the settings, speed, tilt, and pan. It also allows you to set a one-touch time-lapse as well as combine with optional HeadPLUS or HeadONE units to utilize target tracking, target switching, sequencing, and target learning. You can also connect your camera to the 2.5mm shutter trigger port to control shutter and run/stop camera operation.

The JibONE is powered using a 100 to 240 VAC power supply, or it can be powered using separately available dual LP-E6 or L-series battery plates. A 59" long 2.5mm male-to-female shutter extension cable is also included with the unit to provide additional slack, preventing cable pulls during movement.

Quick Features

• Motorized jib mounts onto a tripod with 3/8"-16 thread
• 3/8"-16 camera or head mounting screw
• Supports camera rigs up to 11 lb
• Control manually or via Bluetooth with app
• Four stackable 2.2 lb counterweights included
• Camera travels up to 1.6' at variable speeds between 8 and 140 seconds per second
• 59" long 2.5mm male-to-female shutter extension cable included
• App supports iOS 11.0 or later and Android 5.0 or later
• Compatible with HeadPLUS and HeadONE

UPC: 810011810105

Material of Construction	Aluminum, Stainless Steel
Payload Capacity	11 lb / 5 kg
Counterbalance System	Adjustable Counterweights
Camera Travel Distance	1.64' / 50 cm
Pan Range	360°
Tripod Attachment	3/8"-16 Bottom Thread
Head Attachment	3/8"-16 Mounting Screw
Wireless Support	Bluetooth
Motor Type	Step Motor
Travel Speed	Minimum: 1.64' / 50 cm in 140 Seconds Maximum: 1.64' / 50 cm in 8 Seconds
Connectors	1 x 2.5 mm LANC (Shutter Trigger) 1 x 2.1 mm Barrel Power
Power Input	100 to 240 VDC
Power Output	9.0 V, 2.2 A
Counterweights	Dimensions (Each): 4.5 x 2.1 x 0.7" / 115 x 55 x 19 mm Weight (Each): 2.2 lb / 1 kg
Folded Dimensions	24 x 6.7 x 5.9" / 61 x 17 x 15 cm
Weight	With One Counterweight Installed: 12 lb / 5.5 kg

Package Weight	22.195 lb
Box Dimensions (LxWxH)	26.5 x 8.5 x 5.7"
