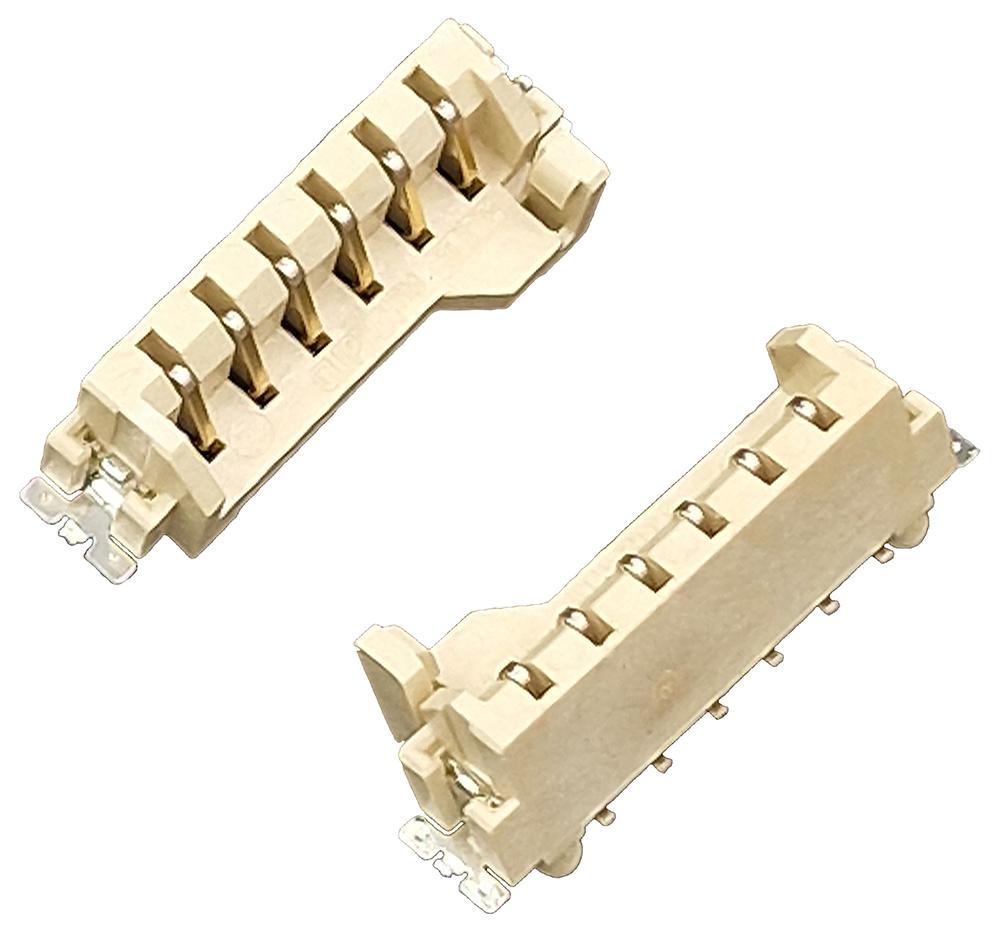

The ClipZin� card edge connector is a unique mounting solution for IoT prototyping that allows single board modules to be temporarily connected instead of being permanently fixed to a PCB. The simple, surface mount design allows you to connect & disconnect the module as and when required and also features a retention clip to hold the module in place. The ClipZin design eliminates the need for pin headers and provides a convenient alternative to soldering headers directly to module boards.
- Fast, tool-less assembly with a positive click to confirm connection
- Eliminates the need to solder headers to the PCB to mount a single module
- Ensures a reliable and consistent connection between contacts and the castellated board edge
- Enables rapid connection and disconnection for effective prototyping
- Integrated retention clips keep the module secure
- Suitable for surface mount soldering
- Gold plated pins for connection reliability
Footnotes Note: ClipZin SMT connectors are suitable for modules with a castellated edge PCB design
Other details
| Brand |
EDAC |
| Part Number |
299-006-299-198 |
| Quantity |
Pack of 2 |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
