Description

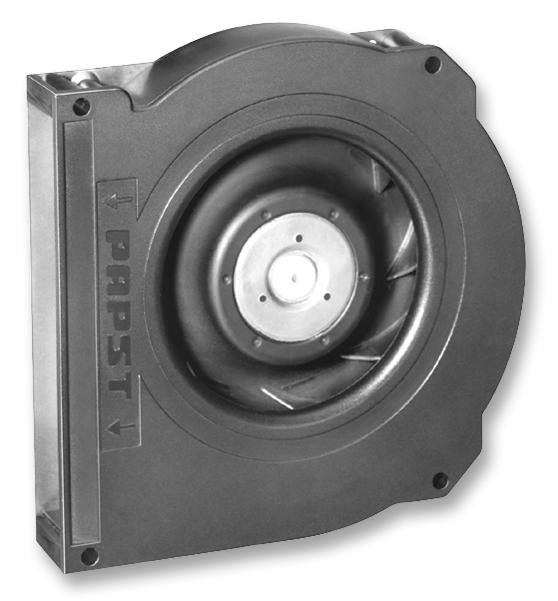

The RLF100-11/12 from EBM Past is a DC centrifugal fan. The fan made of fibre glass reinforced plastic scroll housing, sheet steel housing base and fibreglass-reinforced plastic impeller. Electrical connection via single wire 22AWG, TR 64.
- Nominal voltage is 12VDC
- Power input is 8W
- Ambient temperature range from -20°C to 75°C
- Air flow is 64m3/h or 37.7CFM
- Speed is 5100rpm
- Sound pressure level is 6.4Bel(A)
- Ball bearing
- Dimension is 127mm x 127mm x 25mm
- Mass is 320g
Applications
Industrial
Product details
| Supply Voltage | 12V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 64m³/h |
| Fan Frame Size | 127mm |
| Current Type | DC |
| Product Range | RLF100 Series |
| Flow Rate - Imperial | 37.7cu.ft/min |
| Blower Type | Flatpak |
| Noise Rating | 60dBA |
| Power Rating | 8W |
| Bearing Type | Ball |
| External Depth | 25mm |
Other details
| Brand | EBM-PAPST |
| Part Number | RLF100-11/12 |
| Quantity | Each |
| Technical Data Sheet EN |  |
