Description

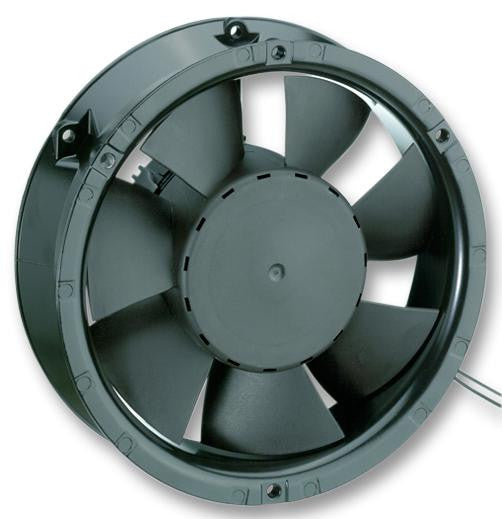

The AC6200 NM is a 115VAC Axial Compact Fan with open loop speed control, sensor and alarm signal, improved moisture protection, ball bearing and wire leaded power connection. Die-cast aluminium housing, fibreglass-reinforced plastic (PA) impeller. Counter-clockwise direction of rotation looking at rotor, exhaust over struts direction of air flow with single strands 22AWG, TR 64. The AC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- 2820RPM Speed rating
- 14W Rated power
- -20 to 70�C Maximum ambient temperature range
- Protected against reverse polarity and locking
Applications
HVAC
Product details
| Supply Voltage | 230V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 350m�/h |
| Fan Frame Size | 172mm |
| Current Type | AC |
| Product Range | AC6200N Series |
| Flow Rate - Imperial | 206cu.ft/min |
| Current Rating | - |
| Noise Rating | 50dBA |
| Bearing Type | Ball |
| External Depth | 51mm |
Other details
| Brand | EBM-PAPST |
| Part Number | AC6200 NM |
| Quantity | Each |
| Technical Data Sheet EN |  |
