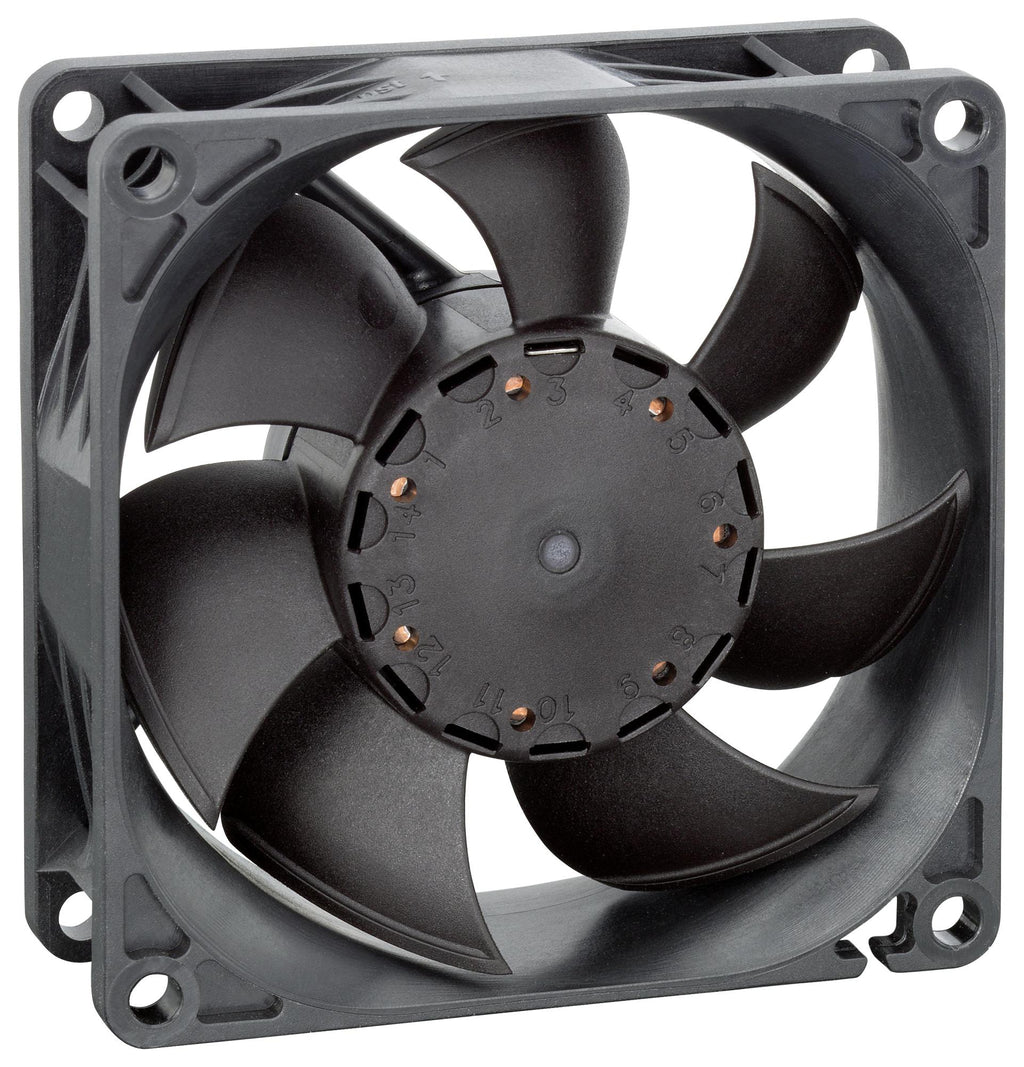

Closed-loop speed control and function monitoring are becoming increasingly important in many applications. ebm-papst offers many fans with a control input and open-collector speed signal. These models allow the fan speed to be changed via a pulse-width-modulated signal when applied to a specially provided wire.
- PWM control input
- 4 wire model
- Separate control wire (violet)
- Combined with a speed signal wire as standard (white)
- Compatible with DCP and TMS controllers
Product details
| Supply Voltage VDC:
12V
|
| Fan Frame Type:
Square
|
| Fan Frame Size:
80mm
|
| External Depth:
25mm
|
| Bearing Type:
Ball Bearing
|
| Air Flow - CFM:
68.8CFM
|
| Noise Rating:
50dBA
|
| Power Rating:
6.8W
|
| Rated Speed:
6200rpm
|
| Power Connection Type:
4 Lead Wires, PWM Control, Sensor Output
|
| Current Rating:
-
|
| IP Rating:
-
|
| Air Flow - m3/min:
1.95m³/min
|
| Product Range:
8450
|
Other details
| Brand |
EBM-PAPST |
| Part Number |
8452/2H4P |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
