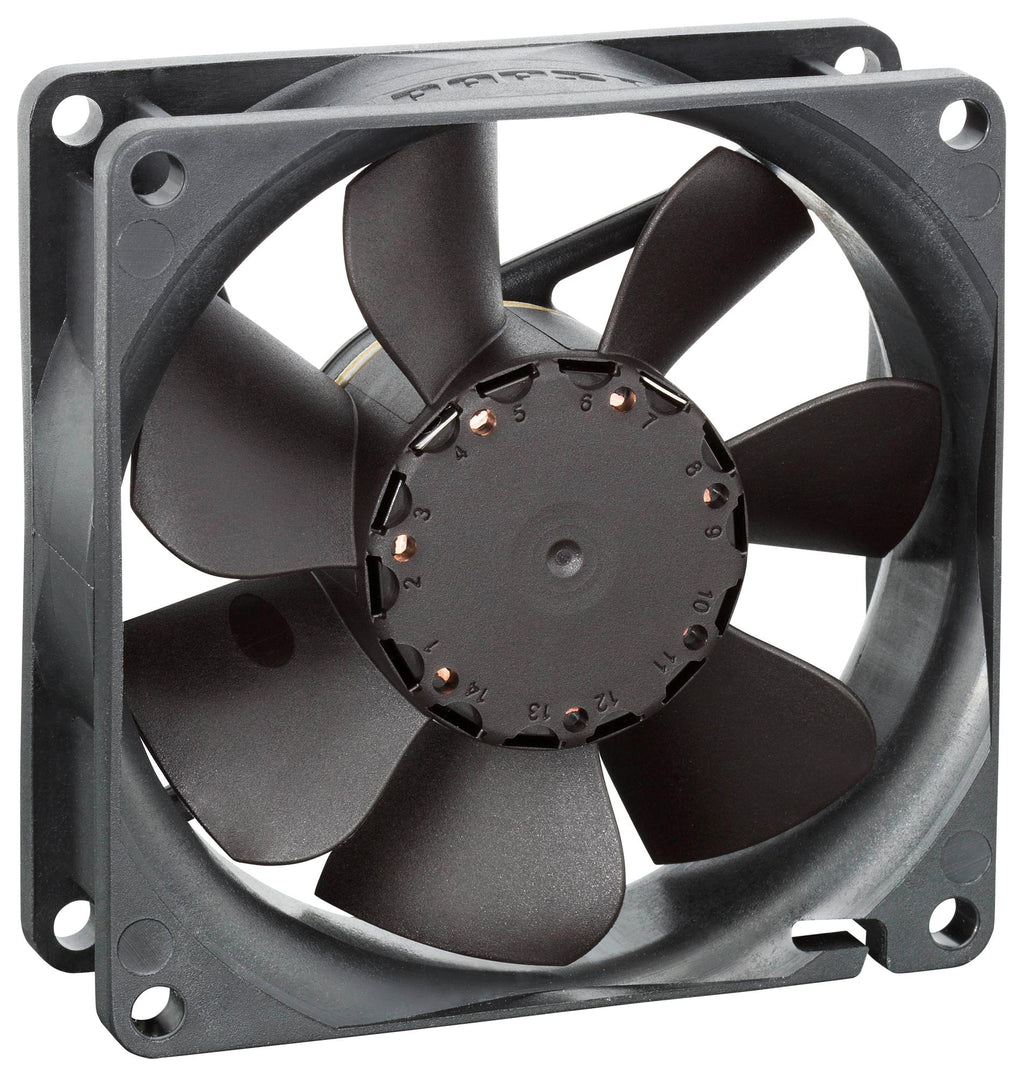

A range of DC fans with reversible flow capabilities. These fans offer comparable airflow and static pressure capabilities in both directions making these fans ideal for a variety of cooling applications.
- Bi-directional airflow
- Direction of rotation controlled by the value of the control voltage or PWM input
- Low power consumption
- Moisture protection
- Quiet operation
- Long service life
- Switchable airflow can result in fewer fans being required
- Backward-curved impeller
- Compact housing with inlet nozzle
- Open-collector tachometer signal output
- Low-noise operation
- High product quality
- Long service life
Product details
| Supply Voltage VDC:
12V
|
| Fan Frame Type:
Square
|
| Fan Frame Size:
80mm
|
| External Depth:
25.4mm
|
| Bearing Type:
Sleeve Bearing
|
| Air Flow - CFM:
-
|
| Noise Rating:
37dBA
|
| Power Rating:
2.8W
|
| Rated Speed:
3600rpm
|
| Power Connection Type:
3 Lead Wires, Analog Control Voltage
|
| Current Rating:
230mA
|
| IP Rating:
-
|
| Air Flow - m3/min:
1.2m³/min
|
| Product Range:
8400N
|
Other details
| Brand |
EBM-PAPST |
| Part Number |
8412NGHAR-183 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
