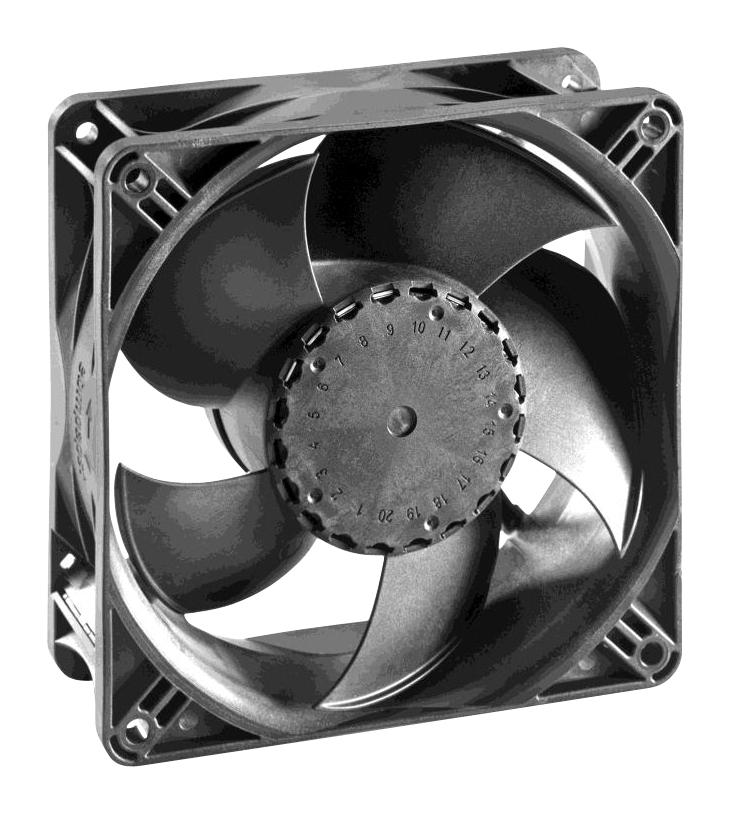

8315100213 is an AxiACi120 series AC axial fan with ball bearing system. AxiACi incorporates EC technology which offers outstanding motor efficiency in comparison to conventional AC fans. Applications include refrigeration, filter fans, ICT or cabinet cooling.
- Wide voltage range (100 - 240VAC)
- Improved humidity protection up to 98%
- Can be operated at 50 or 60Hz
- Low power consumption, long service life
- Can be operated with natural refrigerants
- Reduces structure borne noise
- Wide temperature range from -40 to +75°C
Product details
| Nominal Rated Voltage AC:
115V / 230V
|
| Fan Frame Type:
Square
|
| Fan Frame Size:
120mm
|
| External Depth:
38mm
|
| Bearing Type:
Ball Bearing
|
| Air Flow - CFM:
93.06CFM
|
| Noise Rating:
40dBA
|
| Power Rating:
3.6W
|
| Rated Speed:
3000rpm
|
| Power Connection Type:
Plug
(View Associated Connectors)
|
| Current Rating:
28mA
|
| IP Rating:
-
|
| Air Flow - m3/min:
2.63m³/min
|
| Product Range:
AxiACi120 Series
|
Other details
| Brand |
EBM-PAPST |
| Part Number |
8315100213 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
