| ₹ 5256.2 includes GST and import duties. | |
| B2B customers can avail ₹ 801.57 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

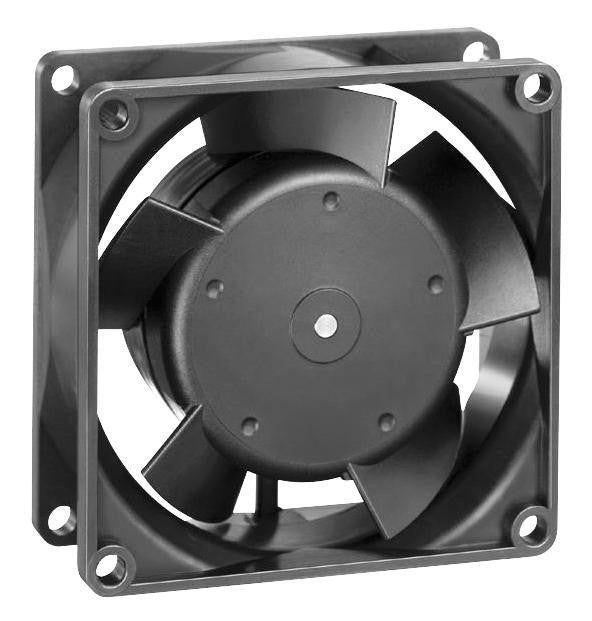

The 8314H is a 24VDC Axial Fan with ball bearing and speed signal, Go/No-go alarm, alarm with limit speed, external temperature sensor, internal temperature sensor, PWM control input, analogue control input. Fibreglass-reinforced plastic PA impeller and PBT housing, protection against fog, fully integrated electronic commutation, protected against reverse polarity and locking, wire leaded power connection. Axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- Exhaust over struts direction of air flow
- Clockwise direction of rotation seen on rotor
- 22AWG Single-wire connection
- IP54/IP68 Protection rating
- Protection against moisture
Applications
HVAC
Product details
| Supply Voltage | 24V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 80m�/h |
| Fan Frame Size | 80mm |
| Current Type | DC |
| Product Range | 8300 Series |
| Flow Rate - Imperial | 47.1cu.ft/min |
| Current Rating | - |
| Noise Rating | 48dBA |
| Bearing Type | Ball |
| External Depth | 32mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 8314H |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5151.08 |
| 3-5 | ₹ 5098.51 |
| 5-10 | ₹ 4993.39 |
| 10+ | ₹ 4888.27 |
Bulk discount will be automatically applied during checkout based on quantity.
