Description

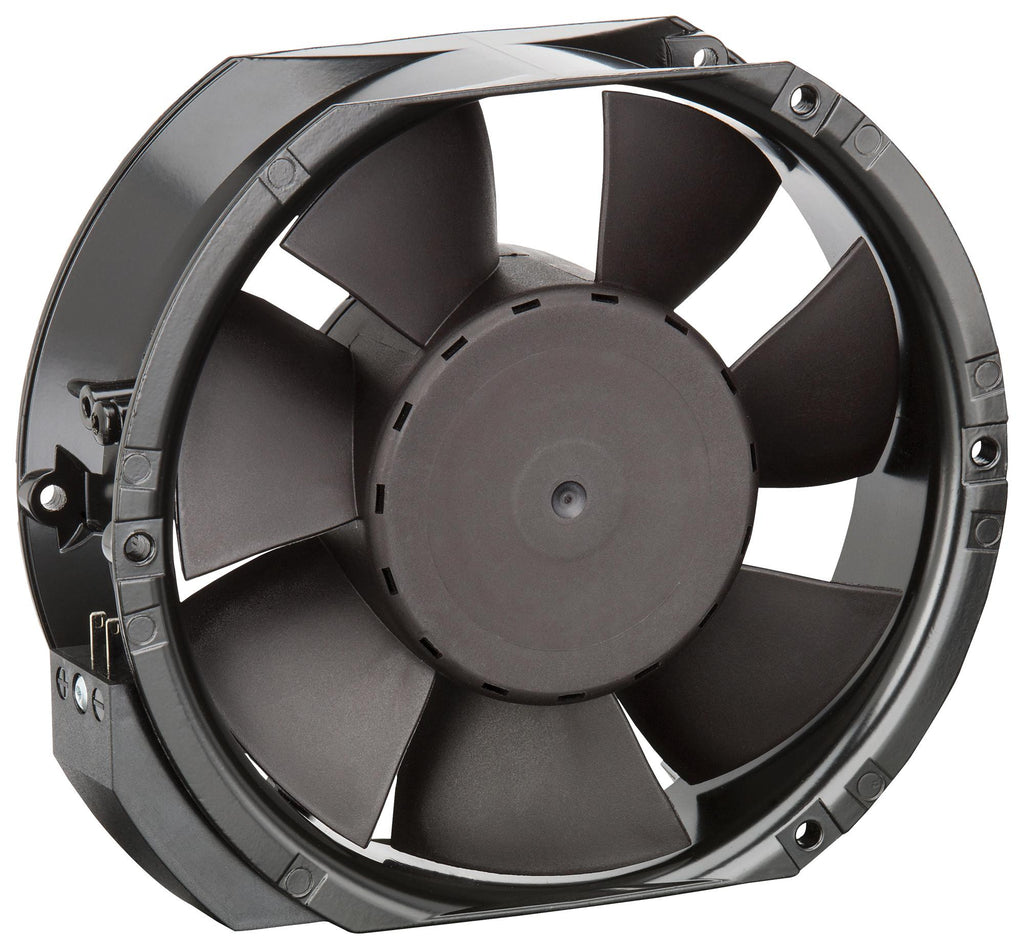

The 6448 is a 48VDC Axial Fan with speed signal, housing with earthing lug for bolt M4 x 8 (Torx) free air power consumption, ball bearing and terminal power connection. Die-cast aluminium housing and fibreglass-reinforced plastic (PA) impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, flat plugs of 3 x 0.5mm connection. This DC axial compact fan is suitable for high air performance with moderate pressure build-up, the flow of air through the fan blades is parallel to the rotation axis.
- 3400RPM Speed rating
- 17W Rated power
- -20 to 72�C Maximum ambient temperature range
- Protected against reverse polarity and locking
Applications
HVAC
Product details
| Supply Voltage | 48V |
| Power Connection Type | Terminals |
| Flow Rate - Metric | 410m�/h |
| Fan Frame Size | 172mm |
| Current Type | DC |
| Product Range | 6400 Series |
| Flow Rate - Imperial | 241cu.ft/min |
| Current Rating | - |
| Noise Rating | 57dBA |
| Bearing Type | Ball |
| External Depth | 51mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 6448 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Application Note EN | |
