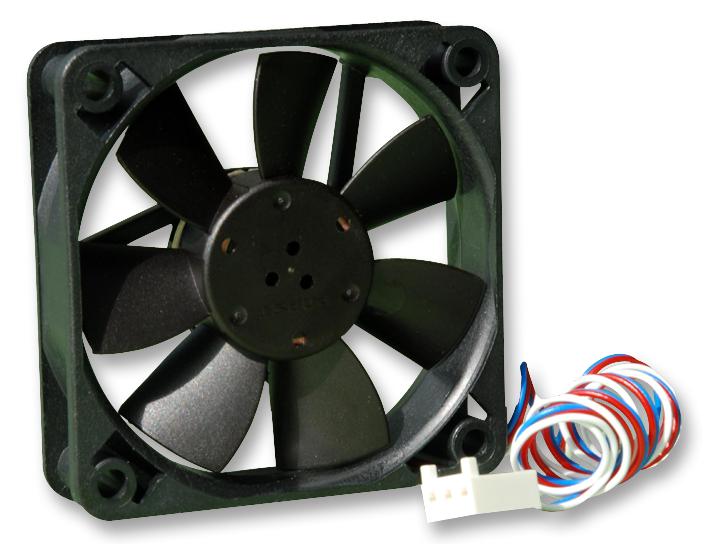

A range of ebm-papst compact fans aimed at the PC Cooling market. This family of especially quiet cooling fans comes complete with connectors for connection to the motherboard and cover sizes from 40mm to 120mm. They have been selected for their noise levels from <10dbA to 38Dba while still offering excellent cooling performance.
- Low operating noise
- Conveys current fan speed via an integrated sensor
- 3 way connector fitted
- Molex KK interconnect System
Product details
| Supply Voltage VDC:
12V
|
| Fan Frame Type:
Square
|
| Fan Frame Size:
60mm
|
| External Depth:
15mm
|
| Bearing Type:
Sintec Bearing
|
| Air Flow - CFM:
9.9CFM
|
| Noise Rating:
11dBA
|
| Power Rating:
300mW
|
| Rated Speed:
2250rpm
|
| Power Connection Type:
3 Lead Wires with Connector
|
| Current Rating:
-
|
| IP Rating:
IP20
|
| Air Flow - m3/min:
0.28m³/min
|
| Product Range:
612F
|
Other details
| Brand |
EBM-PAPST |
| Part Number |
612F/2L-640 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
