Description

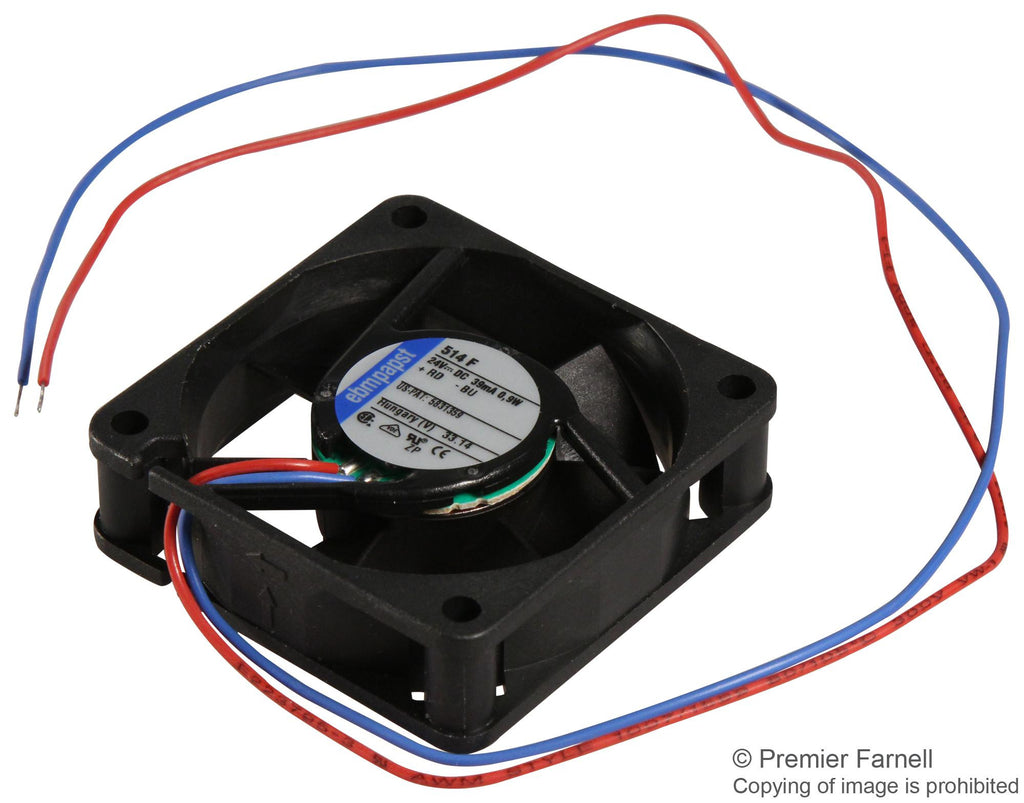

The 514F from EBM Papst is DC axial fan. This fan is designed using fibreglass reinforced PBT plastic housing material and the size is 50mm x 50mm x 15mm.
- Air flow is 20m³/h
- Noise rating is 30dBA
- Supply voltage is 24VDC
- Sintec sleeve bearing system
- Electronic commutation completely integrated
- Air exhaust over bars. Reverse polarity protection
- Connection through single strand 28AWG wire, TR 64
- UL, CSA, CE and VDE approved
Applications
Industrial
Product details
| Supply Voltage | 24V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 20m³/h |
| Fan Frame Size | 50mm |
| Current Type | DC |
| Product Range | 500F Series |
| Flow Rate - Imperial | 11.8cu.ft/min |
| Current Rating | - |
| Noise Rating | 30dBA |
| Bearing Type | Sleeve |
| External Depth | 15mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 514F |
| Quantity | Each |
| Technical Data Sheet EN |  |
