Description

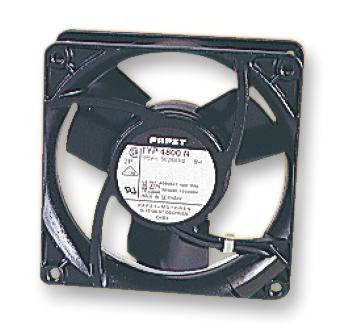

The 4850N from EBM Past is an AC axial compact fan. This is a AC voltage fan with external rotor shaded pole motor protected from overload by impedance protection. Fan housing and fan impeller made of metal. The electrical connection is via 2 flat plugs 3mm x 0.5mm.
- Nominal voltage is 230VAC
- Power input is 10W
- Ambient temperature range from -10°C to 70°C
- Air flow is 100m3/h
- Speed is 1800min-1
- Sound pressure level is 32dBA
- Sintec sleeve bearing system
- Dimension is 119mm x 119mm x 38mm
- Mass is 0.550Kg
- Air flow is inlet over bars
Applications
Industrial
Product details
| Supply Voltage | 230V |
| Power Connection Type | Terminals |
| Flow Rate - Metric | 100m³/h |
| Fan Frame Size | 119mm |
| Current Type | AC |
| Product Range | 4000N Series |
| Flow Rate - Imperial | 58.86cu.ft/min |
| Current Rating | - |
| Noise Rating | 32dBA |
| Bearing Type | Sleeve |
| External Depth | 38mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 4850N |
| Quantity | Each |
| Technical Data Sheet EN |  |
