Description

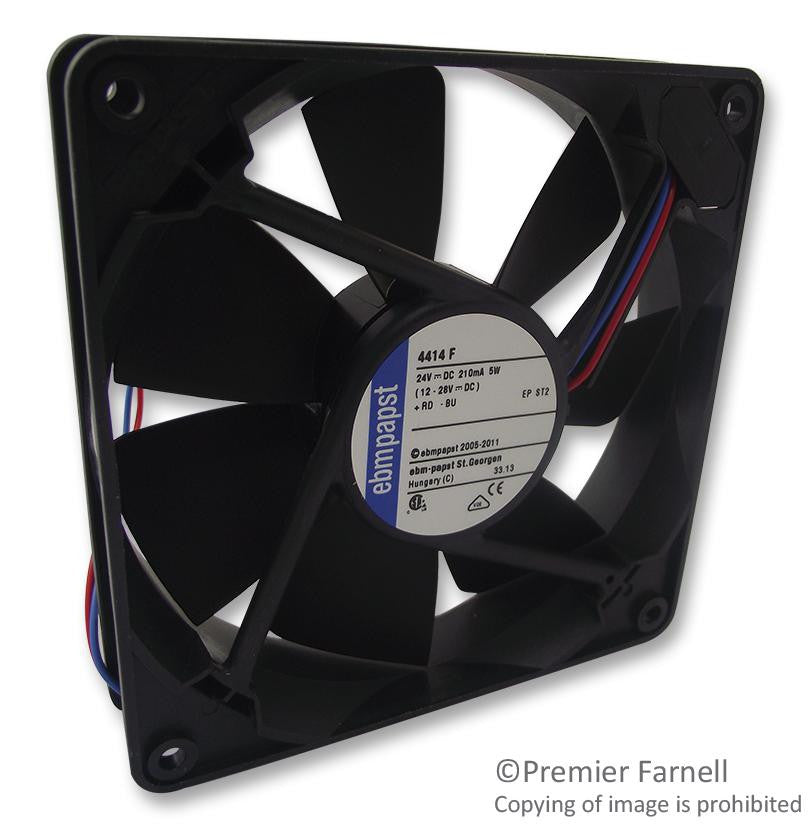

The 4414F is a 24VDC Axial Fan with speed signal, alarm signal, ball bearing and wire leaded power connection. Fibreglass-reinforced plastic (PBT) housing and fibreglass-reinforced plastic (PA) impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads with flat construction/frequency-modulated signal. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- 2900RPM Speed rating
- 5W Rated power
- -20 to 60°C Maximum ambient temperature range
- Protected against reverse polarity and locking
- Blocking and overload protection
- Protected against reverse polarity and locking
Applications
HVAC
Product details
| Supply Voltage | 24V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 170m³/h |
| Fan Frame Size | 119mm |
| Current Type | DC |
| Product Range | 4400F Series |
| Flow Rate - Imperial | 100.1cu.ft/min |
| Current Rating | - |
| Noise Rating | 43dBA |
| Bearing Type | Ball |
| External Depth | 25mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 4414F |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Miscellaneous EN | |
