Description

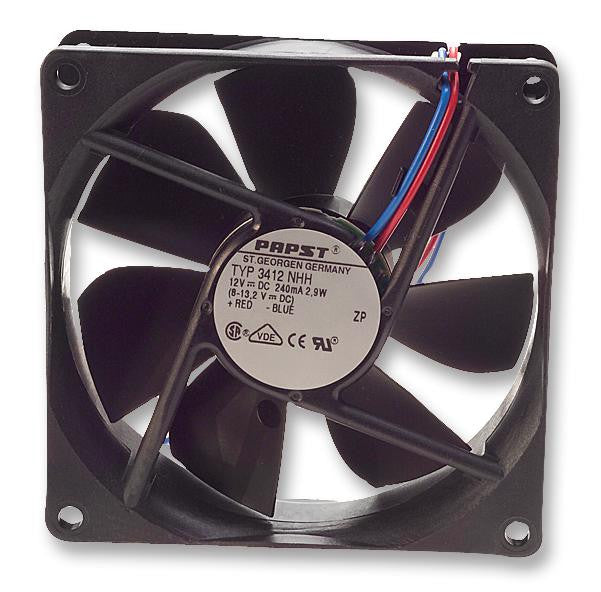

The 3412NHH is a 12VDC standard or basic high speed Axial Fan with speed signal, ball bearing and wire leaded power connection. Fibreglass-reinforced plastic (PBT) housing and fibreglass-reinforced plastic (PA) impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- 3250RPM Speed rating
- 2.9W Rated power
- -20 to 60°C Maximum ambient temperature range
- Protected against reverse polarity and locking
Applications
HVAC
Product details
| Supply Voltage | 12V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 102m³/h |
| Fan Frame Size | 92mm |
| Current Type | DC |
| Product Range | 3400N Series |
| Flow Rate - Imperial | 60cu.ft/min |
| Current Rating | - |
| Noise Rating | 39dBA |
| Bearing Type | Ball |
| External Depth | 25mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 3412NHH |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 3761.94 |
| 3-5 | ₹ 3723.55 |
| 5-10 | ₹ 3646.77 |
| 10+ | ₹ 3570.0 |
Bulk discount will be automatically applied during checkout based on quantity.
