Description

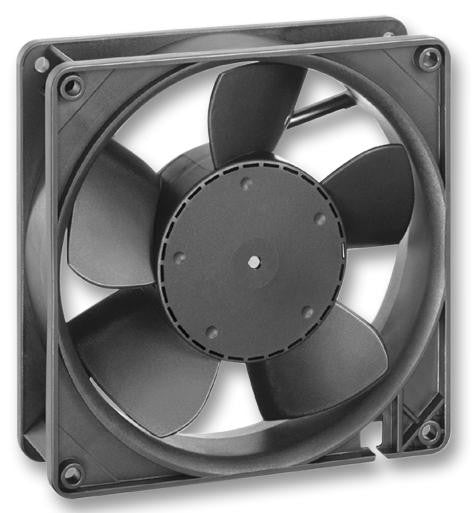

The 3214JH is a 24VDC high speed Axial Fan with speed signal, ball bearing and wire leaded power connection. Fibreglass-reinforced plastic (PBT) housing and fibreglass-reinforced plastic (PA) impeller. Clockwise direction of rotation looking at rotor, air exhaust over bars direction of air flow, single strands 24AWG, TR 64, bared and tin-plated leads with jet characteristic/rigid curve. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- 6800RPM Speed rating
- 9W Rated power
- -20 to 70�C Maximum ambient temperature range
- Protected against reverse polarity and locking
Applications
HVAC
Product details
| Supply Voltage | 24V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 146m�/h |
| Fan Frame Size | 92mm |
| Current Type | DC |
| Product Range | 3200J Series |
| Flow Rate - Imperial | 86cu.ft/min |
| Current Rating | - |
| Noise Rating | 55dBA |
| Bearing Type | Ball |
| External Depth | 38mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 3214JH |
| Quantity | Each |
| Technical Data Sheet EN |  |
