Description

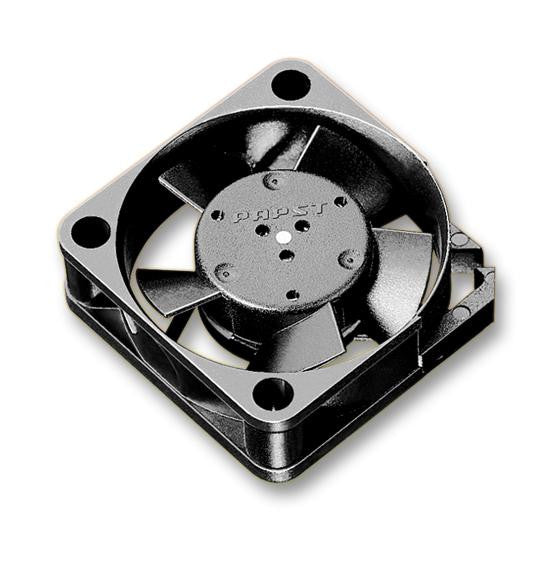

The 255M is a 5VDC medium speed Axial Fan with speed signal, moisture protection Sintec sleeve bearing and wire leaded power connection. Fibreglass-reinforced plastic (PBT) housing and fibreglass-reinforced plastic (PA) impeller. Left direction of rotation looking at rotor, air exhaust over bars direction of air flow with single strands 28AWG, TR 64, bared and tin-plated leads. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- 6500RPM Speed rating
- 0.2W Rated power
- -10 to 70°C Maximum ambient temperature range
- Protected against reverse polarity and locking
Applications
HVAC
Product details
| Supply Voltage | 5V |
| Power Connection Type | 2 Lead Wires |
| Flow Rate - Metric | 2.1m³/h |
| Fan Frame Size | 25mm |
| Current Type | DC |
| Product Range | 250 Series |
| Flow Rate - Imperial | 1.2cu.ft/min |
| Current Rating | - |
| Noise Rating | 5dBA |
| Bearing Type | Sleeve |
| External Depth | 8mm |
Other details
| Brand | EBM-PAPST |
| Part Number | 255M |
| Quantity | Each |
| Technical Data Sheet EN |  |
