Description
Product Overview

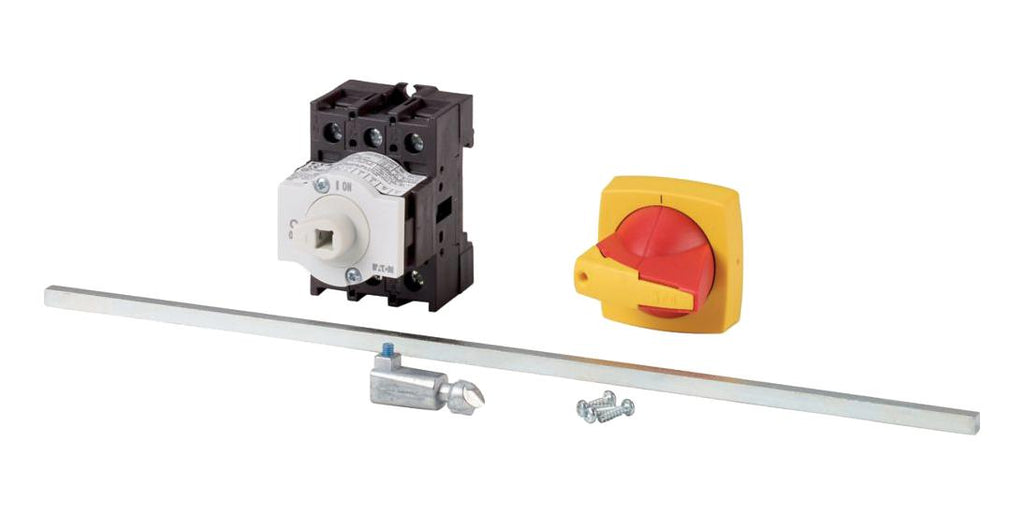

P1-32/M4/K1-PR is a 32A, 3 pole, P1 main switch. It has emergency switching off function, with metal shaft for a control panel depth of 400mm. It is certified by IEC/EN 60204, IEC/EN 60947-3, VDE 0660, IEC/EN 60947.
- Lockable in the 0 (Off) position, NEMA 12 degree of protection
- Degree of protection (front side) is IP65, rear mounting
- Ambient operating temperature range from -25°C to 50°C
- Rated permanent current Iu is 32A
- Rated operational power at AC-3, 380/400V, 50Hz is 13KW
- Maximum rated operation voltage Ue AC is 690V
- Short-circuit protection ratings are 50A gG/gL, fuse, contacts
- Rated conditional short-circuit current (Iq) is 80KA
- Red short thumb-grip actuator
- Product dimension is 340mm length/depth x 70mm height x 57mm width
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | P1-32/M4/K1-PR |
| Quantity | Each |
| Technical Data Sheet EN |  |
