Description
Product Overview

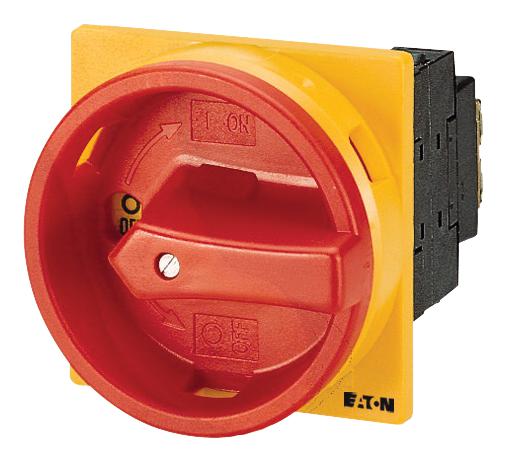

P1-25/EA/SVB/N is a 3 pole + N main switch. It is certified by VDE 0660, UL file no.: E36332, UL, CSA file no.: 012528, CSA-C22.2 No. 94, CSA-C22.2 no. 60947-4-1-14, CSA class no.: 3211-05, IEC/EN 60947, UL 60947-4-1, IEC/EN 60204, CSA, UL category control no.: NLRV, IEC/EN 60947-3.
- NEMA 12 degree of protection, IP65 degree of protection (front side)
- 30000000 operations mechanical lifespan
- Flush mounting, 6000VAC rated impulse withstand voltage
- 190A rated breaking capacity at 220/230V (cos phi to IEC 60947-3)
- 7.5kW rated operational power at AC-3, 380/400V, 50Hz
- 25A rated uninterrupted current
- 1HP assigned motor power at 115/120V, 60Hz, 1-phase
- Product dimension (LxWxH) is 118.872mm x 64.77mm x 82.804mm
- Ambient temperature range from -25°C to 50°C
- Emergency switching off function, with red rotary handle and yellow locking ring
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | P1-25/EA/SVB/N |
| Quantity | Each |
| Technical Data Sheet EN |  |
