| ₹ 7472.17 includes GST and import duties. | |
| B2B customers can avail ₹ 1139.51 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

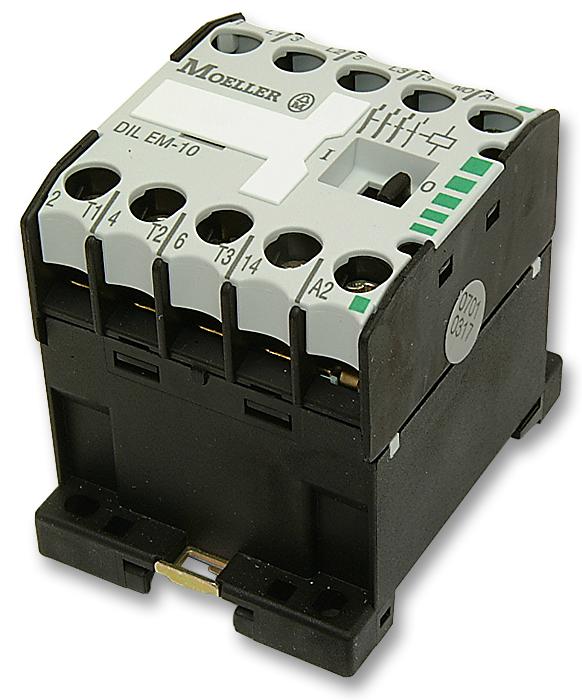

The DILEM-10 24VAC from Eaton Moeller is a three pole mini contactor with normally open (N/O) contacts. DIL E mini contactors are compact, economic and environmentally friendly solution where control of small motors or loads is required. They have higher degree of climatic proofing and large ambient temperature range.
- AC-1, AC-3 and AC-4 utilization category
- Actuating voltage of 24V at 50Hz
- Rated operational current of 9A (AC-3) and 6.6A (AC-4) at 380V to 400V
- Rated operational voltage of 690VAC
- Motor rating of 4KW (AC-3) and 3KW (AC-4) at 380V to 400V
- 3 pole conventional free air thermal current of 16A at 50Hz/60Hz (AC-1, enclosed)
- Approved by IEC/EN 60947-4-1, UL 508, CSA-C22.2, CE and VDE 0660 standards
- Ambient temperature range from -25°C to 50°C (open) and -25°C to 40°C (enclosed)
- IP20 degree of protection
- Breaking capacity of 90A at 380V to 400V
Applications
Automation & Process Control, Motor Drive & Control, Industrial
Product details
Other details
| Brand | EATON MOELLER |
| Part Number | DILEM-10 24VAC |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 7322.73 |
| 3-5 | ₹ 7248.0 |
| 5-10 | ₹ 7098.56 |
| 10+ | ₹ 6949.12 |
Bulk discount will be automatically applied during checkout based on quantity.
