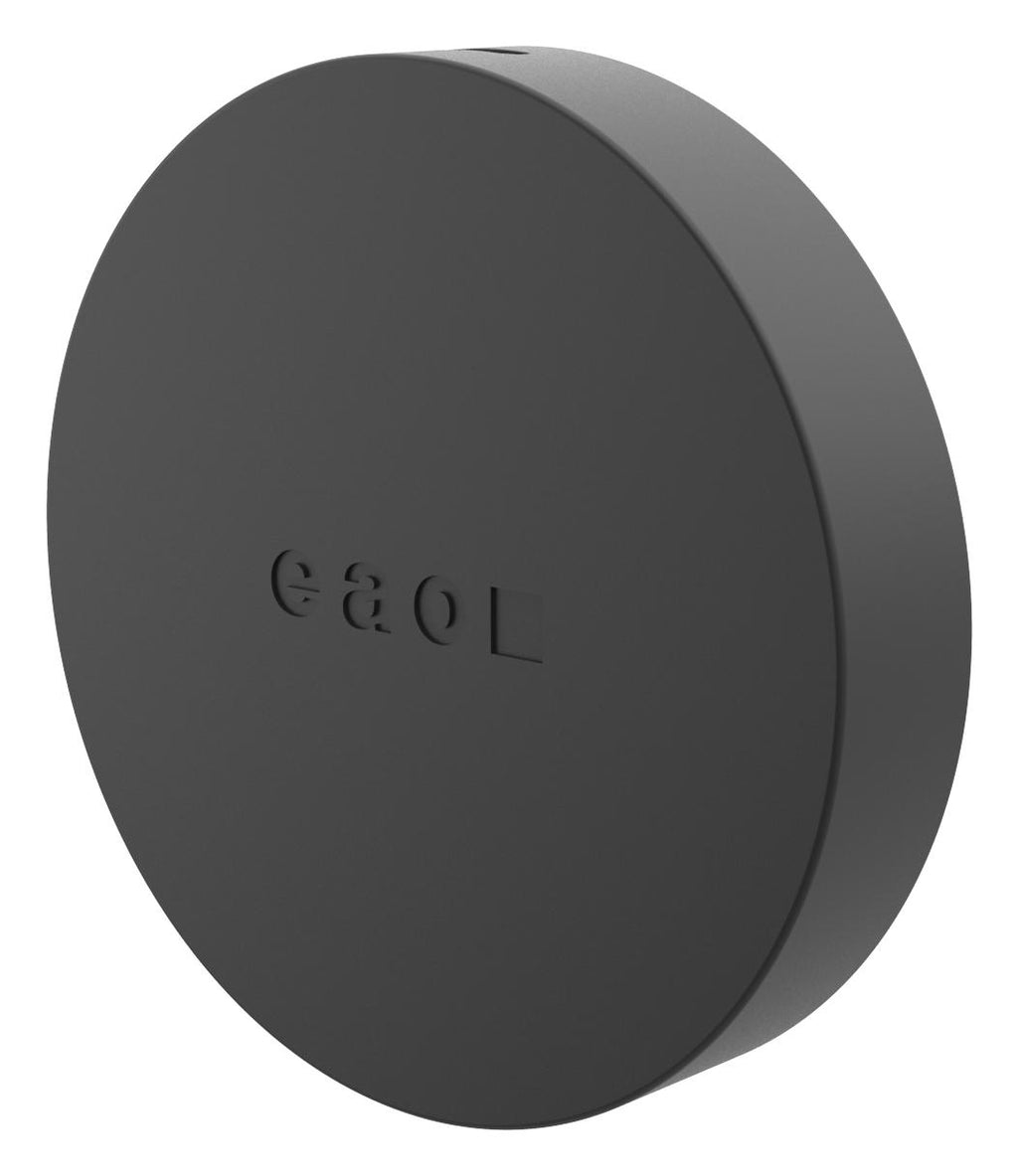

PIF-02T-010 is a round table top single coil charger. It features overvoltage trigger protection of 13VDC, power consumption of 10W, transference 3mm non�conductive material.
- Soft-touch rubber-coated single coil charger
- Micro USB-B power input and output socket
- Power consumption of 5W-10W
- Input voltage of 12V +0.5/-3.0V
- Maximum output current (via Micro USB-B ) of 2.0A
- Maximum inductive charging current is 2.0A
- Qi Certified, CE Marked
- EN 50121-3-2 railway apparatus and EN 62311 human exposure EMC compliant
- EN 61373 Rail vehicle vibration tested
- EN62479: (2010) EN62311: (2008) EMF human exposure compliant
Product details
| Input Voltage:
12V
|
| Input Current:
2A
|
| Output Voltage:
5.25VDC
|
| Charging Current:
2A
|
| Output Power:
10W
|
| Input Connection Type:
Micro USB-B
|
| No. of Ports:
2 Port
|
| Charger Type:
Round Table Top Single Coil Charger
|
| Product Range:
-
|
Other details
| Brand |
EAO |
| Part Number |
PIF-02T-010 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
